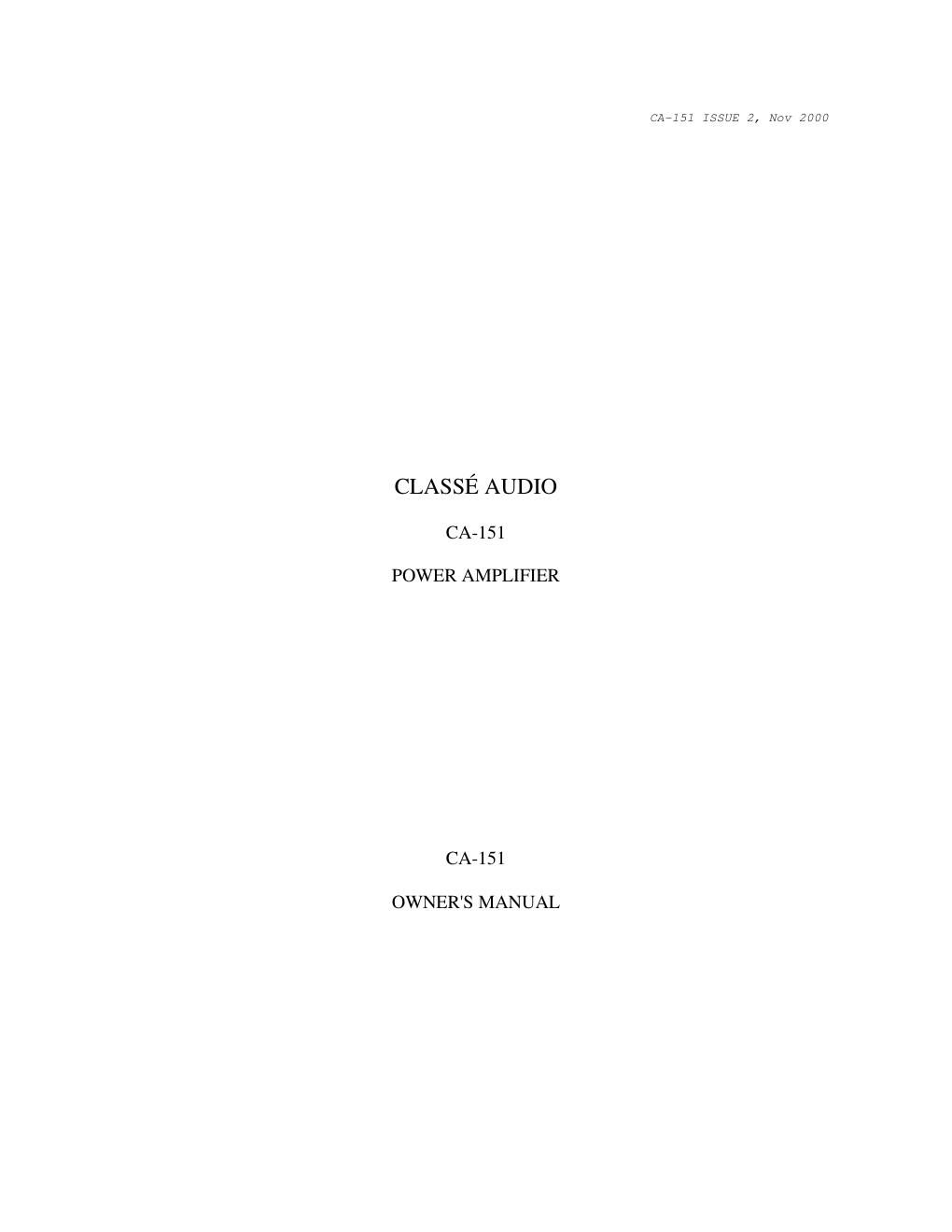

Classe audio ca 151 owners manual
This is the 16 pages manual for classe audio ca 151 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from classe audio ca 151 owners manual (Ocr-read)
Page 1
CA-151 ISSUE 2, Nov 2000 -2- CLASSÉ DESIGN PHILOSOPHY 1. REPEATED LISTENING DESIGN SESSIONS: Fine tuning of sound by exchanging and mixing of parts (transistors, capacitors, wiring, PCB boards etc.), and adjusting many specific operati ng voltages within proper engineering ranges, producing an overall sonic recipe giving the most natural harmonic realism of music typical of instruments in a live performance. 2. UPGRADABLE SINGLE CIRCUIT DESIGNS: All Classé products (all preamps and all amps) share exactly the same circuit (excluding moving coil and moving magnet phono circuits). This means a ll amplifiers and all high level circuits of the preamps are the same. The same circuit is tailo red to different power levels etc. Differences between less expensive models and more expens ive models are parts quality and compliment, power supply extravagance and the amount of filtering etc., as well as features and packaging. This means that for years Classé has been cons tantly fine tuning and upgrading this circuit and its application, thus reaching a very high level of understanding and musical achievement which benefits all models - least expensive, most expensive, preamps and amplifiers alike. 3. EXTREME LONG LIFE IN REAL WORLD CONDITIONS: Choosing the best attainable quality parts and materials combined with the advantages of the two above-mentioned areas provides Classé owners w ith years of proven trouble free reliability and musical enjoyment.
Page 2
CA-151 ISSUE 2, Nov 2000 -3- CA-151 OWNER'S MANUAL TABLE OF CONTENTS UNPACKING & SET-UP......................................................\ .............. 4 GENERAL CONNECTIONS.....................................................\ ......... 5 CONNECTIONS FOR REGULAR OR BALANCED INPUTS…... 7 PROTECTION CIRCUIT......................................................\ ............... 8 SPECIFICATIONS..........................................................\ ......................12
