Page 1

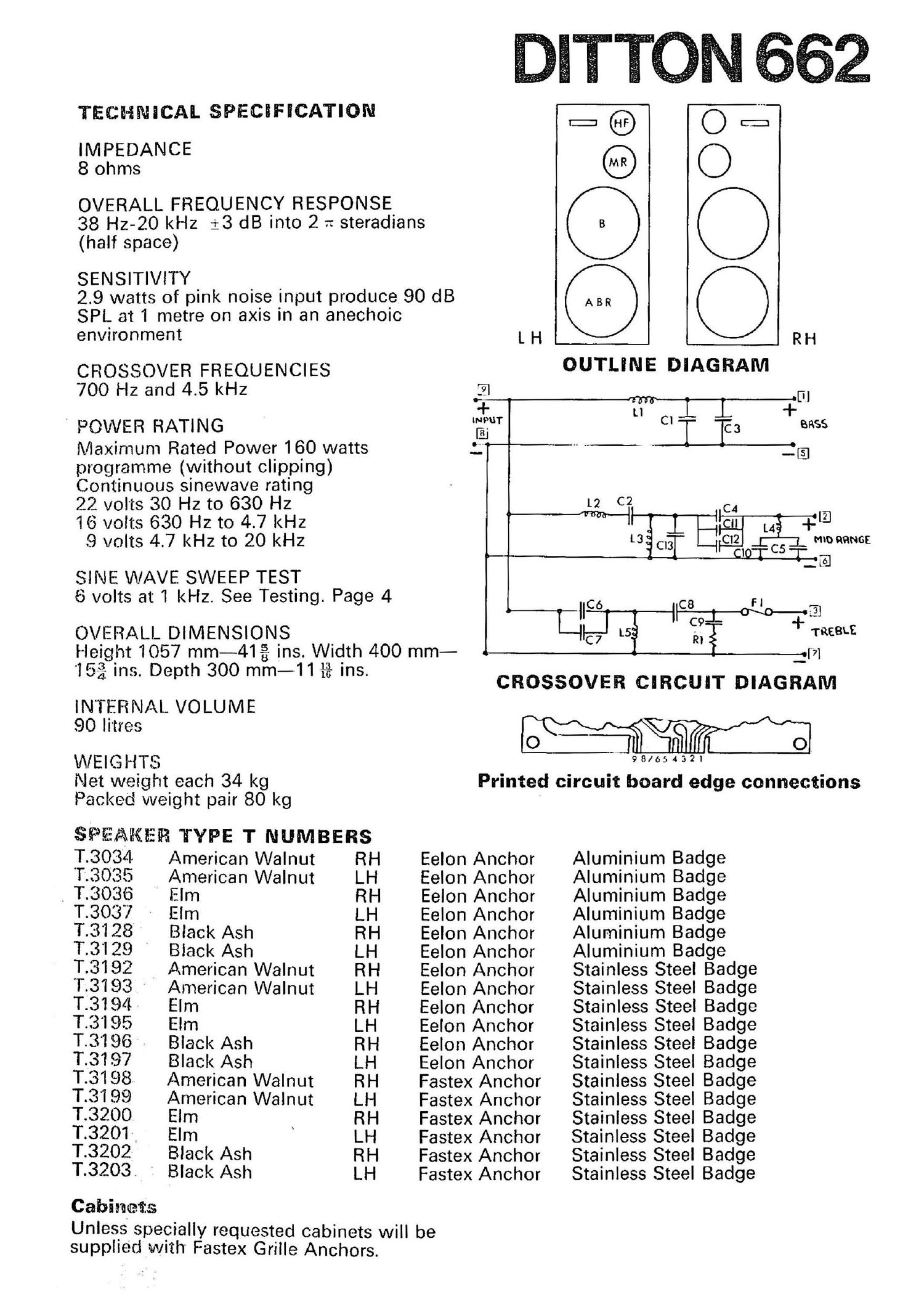

TECHNICAL SPECIFICATION
IMPEDANCE
8 ohms
OVERALL FREQUENCY RESPONSE
38 Hz-ZO kHz :3 dB into 2 : steradians
(half space)
SENSITIVITY .
2.9 watts of pink noise Input produce 90 dB
SPL at 1 metre on axis in an anechoic
environment
CROSSOVER FREQUENCIES
E @
@
°
QC";
e
700 Hz and 4.5 kHz
POWER RATING
Maximum Rated Power 160 watts
programme (without clipping)
Continuous sinewave rating
22 volts 30 Hz to 630 Hz
16 volts 630 Hz to 4.7 kHz
.9 volts 4.7 kHz to 20 kHz
SINE WAVE SWEEP TEST
6 volts at 1 kHz. See Testing. Page 4
OVERALL DIMENSIONS
Height 1057 mm-41 ; ins. Width 400 mm-
15% ins. Depth 300 mm-11 1% ins.
INTERNAL VO LU M E
90 litres
WEIGHTS
Net weight each 34 kg
Packed weight pair 80 kg
T3034 American Walnut RH
T 3035 American Walnut LH
. T3036 Elm RH
T3037 Elm LH
T3128 Black Ash RH
T3129 Black Ash LH
T3192 American Walnut RH
T3193 American Walnut LH
T3194 Elm RH
T3195 Elm LH
T3196 , Black Ash RH
T.S197 Black Ash LH
T3198 American Walnut RH
T3199 American Walnut LH
T 3200 Elm RH
T3201 Elm LH
T3202 Black Ash RH
T3203 Black Ash LH
Cabinets
LH RH
OUTLINE DIAGRAM
j] m - - ~51
Qt Li UL _L '1'
J3 T 133 sass
_.' ' ' ' _@
L2 C2
«mm-i: . - tic-4 [:1
L3 l -%b L4 + I
Cfl- AFEIOTQT «cannot
' '_T€l
C6 [C8 Fl 3
j C9 + t:
-|l-C-7- LS Iii-{- mam.
|7I
CROSSOVER CIRCUIT DIAGRAM
o-mmrrm
98/65A32I
Printed circuit board edge connections
Eelon Anchor
Eelon Anchor
Eelon Anchor
Eelon Anchor
Eelon Anchor
Eelon Anchor
Eelon Anchor
Eelon Anchor
Eelon Anchor
Eelon Anchor
Eelon Anchor
Eelon Anchor
Fastex Anchor
Fastex Anchor
Fastex Anchor
Fastex Anchor
Fastex Anchor
Fastex Anchor
Unless specially requested cabinets will be
supplied With Fastex Grille Anchors.
Aluminium Badge
Aluminium Badge
Aluminium Badge
Aluminium Badge
Aluminium Badge
Aluminium Badge
Stainless Steel Badge
Stainless Steel Badge
Stainless Steel Badge
Stainless Steel Badge
Stainless Steel Badge
Stainless Steel Badge
Stainless Steel Badge
Stainless Steel Badge
Stainless Steel Badge
Stainless Steel Badge
Stainless Steel Badge
Stainless Steel Badge
