Page 1

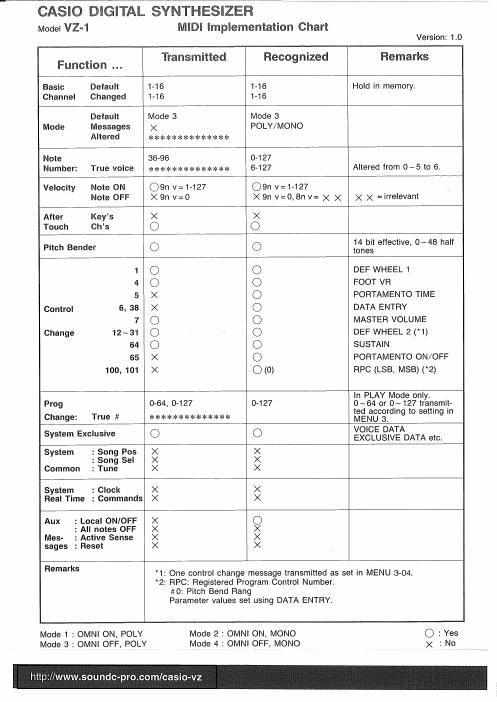

CAsioflbTGiTAL SYNTHESIZER

Model VZ=1 MIDI Implementation Chart
Version: 1.0
. Transmitted Recognized Remarks
Function
Basic Default 1-16 1-16 Hold in memory.
Channel Changed 1-16 1-16
Default Mode 3 Mode 3
Mode Messages x POLY/MONO
Altered **************
Note 36-96 0-127
Number: True voice ************** 6-127 Altered from 0~5 to 6.
Velocity Note. 0N OQn v=1-127 OSn v=1-127
Note OFF X 9n v=0 X 9n v=0,8n v: x x x x =irre|evant
After Keys X X
Touch Chs O O
. 14 bit effective, 0448 half
Pltch Bender O O tones
1 O O DEF WHEEL 1
4 Q Q FOOT VR
5 X 0 PORTAMENTO TIME
Control 6, 38 X 0 DATA ENTRY
7 O O MASTER VOLUME
Change 12~31 O O DEF WHEEL 2 ('1)
64 O O SUSTAIN
65 X 0 PORTAMENTO ON/OFF
100, 101 X 0 (0) RFC (LSB, MSB) (*2)
ln PLAY Mode only.
Prog 0-64, 0-127 0-127 0~64 or o- 127 transmit-
Change: True # ************** figfificgrdmg to setting m
. VOICE DATA
SVSem Exc'se O O EXCLUSIVE DATA etc.
System : Song Pos X X
: Song Sei X X
Common : Tune X X
System : Clock X X
Real Time : Commands X X
Aux : Local ONIOFF X 0
: All notes OFF X X
Mes- : Active Sense X X
sages :Reset X X
Remarks *1: One control change message transmitted as set in MENU 3-04.
*2: RPC: Registered Program Control Number.
#0: Pitch Bend Rang
Parameter values set using DATA ENTRY.
Mode 1 : OMNI ON, POLY Mode 2 : OMNI ON, MONO O : Yes
Mode 3 : OMNIOFF, PQI-Y, 7 Mode 4 : OMNI OFF, MONO x : No
