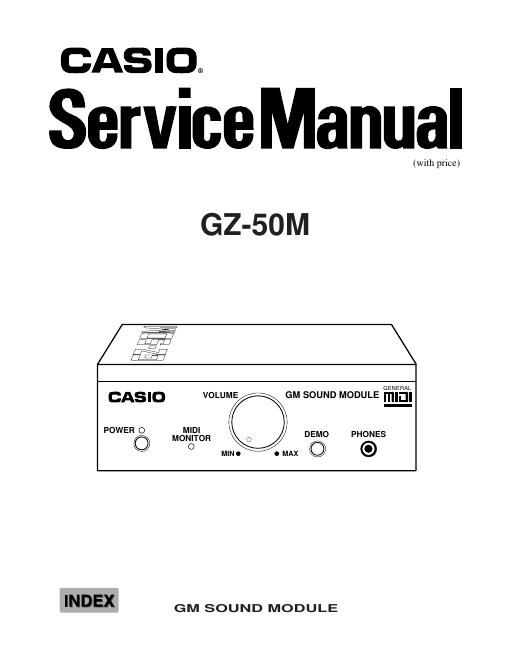

Casio gz 50m service manual

Page 2

- 3 - MIDI messages receivable with GZ-50M MIDI channel: 1 - 16 channel Note On/Off: Note number 0 - 127 Velocity 1 - 127 Program change: 0 - 127 on channel 1 -9 & 11 - 16 0 - 7 on channel 10 Pitch bend: 00H/00H - 7FH/7FH Control change: Modulation Control No. 1 0 - 127 Volume Control No. 7 0 - 127 Pan Control No. 10 0 (left) - 64 (center) - 127 (right) Expression Control No. 11 0 - 127 Hold Control No. 64 0 - 63: Off, 64 - 127: On Sostenuto Control No. 66 0 - 63: Off, 64 - 127: On Soft Control No. 67 0 - 63: Off, 64 - 127: On Effect depth Control No. 91 0 -127 All sounds off Control No. 120 Reset all controllers Control No. 121 * See next page for information about the initial settings. Local control On/Off Control No. 122 0: Off, 127: On All notes off Control No. 123 Registered Parameter Number (RPN) Control No. 36: LSB, No.37: MSB Pitch bend sense Control No. 100 00H Control No. 101 00H Data entry Control No. 6 00H - 0CH Control No. 36 00H Fine tuning Control No. 100 01H Control No. 101 00H (20H: -50 cents) Data entry Control No. 6 20H - 40H - 60H (40H: center) Control No. 36 00H (60H: +50 cents) Coarse tuning Control No. 100 02H Control No. 101 00H (34H: -12 seminotes) Data entry Control No. 6 34H - 40H - 4CH (40H: center) Control No. 36 00H (4CH: +12 seminotes) RPN null Control No. 100 7FH Control No. 101 7FH Active sensing: Channel pressure: Reconized as modulation System exclusive: Effect change [F0][44][0B][09][xx][F7] [xx]: [00] - [09], [0F] [00]: Reverb1 (Stage) [01]: Reverb2 (Hall) [02]: Reverb3 (Room) [03]: Chorus [04]: Tremolo [05]: Phase shifter [06]: Organ speaker [07]: Enhance [08]: Flanger [09]: EQ Loundness [0F]: Effect OFF GM system on [F0][7E][7F][09][01][F7] * See next page for information about the initial settings in The General MIDI system.
