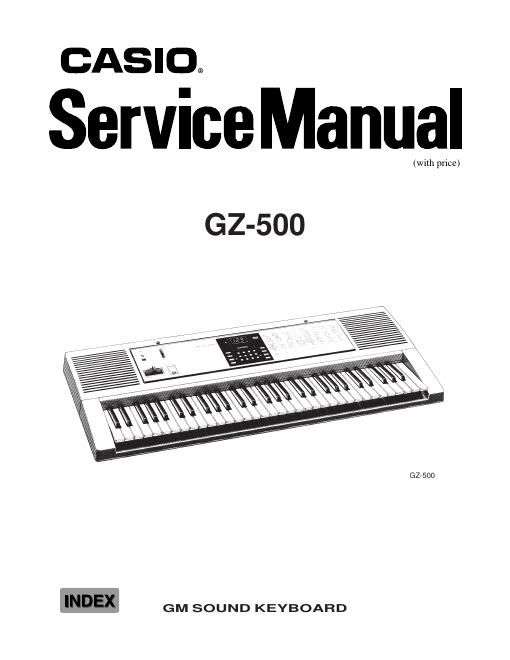

Casio gz 500 service manual
This is the 26 pages manual for casio gz 500 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from casio gz 500 service manual (Ocr-read)
Page 1
Ñ 2 Ñ ELECTRICAL Current drain with 9 V DC: No sound output 294 mA ± 20% Maximum volume 940 mA ± 20% with 32 polyphonic notes in tone No. 078 Volume; maximum, Velocity: maximum Phone output level (Vrms with 8 load each channel): with key A5 pressed in tone No. 078 100 mV ± 20% Line output level (Vrms with 47 k load each channel): with key A5 pressed in tone No. 078 1350 mV ± 20% Minimum operating voltage: 6.0 V CONTENTS Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Circuit Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Major waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 SPECIFICATIONS GENERAL Number of keys: 61 Polyphonic: 32-note Preset tones: 128, Drum set: 8 Keyboard controls: Touch response: On/Off Digital effects: 10, including Reverb-1, Reverb-2, Reverb-3, Chorus, Tremolo, Phase Shifter, Organ SP, Enhancer, Flanger, EQ Loudness Modulation: On/Off, Depth setting range: 0 - 127 Pitch bend wheel: Bend sense: 0 - 12 Tuning control: 440Hz ± 50 cents Built-in speakers: 12 cm dia. 2 W input rating: 2 pcs. Terminals: Phone Jack [Output impedance: 100 W, Output voltage: 4.5 V(rms) MAX], MIDI Jacks (IN, OUT), Assignable Jack, AC Adapter Jack (9 V) Auto power off: Approximately 6 minutes after the last operation Power source: 2-way AC or DC source AC: AC adapter DC: 6 D size dry batteries Power consumption: 7.7 W Dimensions (HWD): 129 x 942 x 367 mm (5-1/16 x 37-1/16 x 14-1/2 inches) Weight: 5.3 kg (11.7 lbs) excluding batteries
Page 2
Ñ 3 Ñ OPERATION SETTING UP THE KEYBOARD The initial settings Tone: 000 (Piano) Channel 1 - 9 & 11 - 16 dr0 (Drum set 0) Channel 10 Modulation: 0 (Off) MIDI control change Volume: 100 Pan: 64 (Center) Expression: 127 (Maximum) Effect depth: 127 (Maximum) Pitch bend sense: 2 Coarse tune: 0 (Center) Fine tuning: 0 (Center) Digital effect: E-0 (Digital effect 0) MIDI channel: 01 Channel On/Off: On Octave shift: 0 Modulation depth: 064 Touch response: r-0 (Touch curve 0) Velocity at touch response OFF: 100 Assignable jack: SUS (Sustain pedal) Local control On/Off: On Notes: 1* See the initial settings list as shown below. 2* See the initial settings in The General MIDI system on next page. 3* The exclusive message of "GM system on" will be tramsmitted when completing the operation. System exclusive: GM system on [F0][7E][7F][09][01][F7] ItemSettin g Settin g operation System Reset 1* 1. Press the control button and repeat it until the display shows "Srt". "SUr" and "Srt" will appear alternately on the display. 2. Press the + key. Assignable Jack Sustain pedal 1. Press the control button and repeat it until the display shows "JAC". 2. Using the +/- key, select "SUS" on the dispaly. Sostenuto pedal 1. Press the control button and repeat it until the display shows "JAC". 2. Using the +/- key, select "SoS" on the dispaly. Soft pedal 1. Press the control button and repeat it until the display shows "JAC". 2. Using the +/- key, select "SFt" on the dispaly. GM Reset 3* 2* 1. Press the MIDI button and repeat it until the display shows "Grt". "SUr" and "Grt" will appear alternately on the display. 2. Press the + key. 3. Press the + key again.
