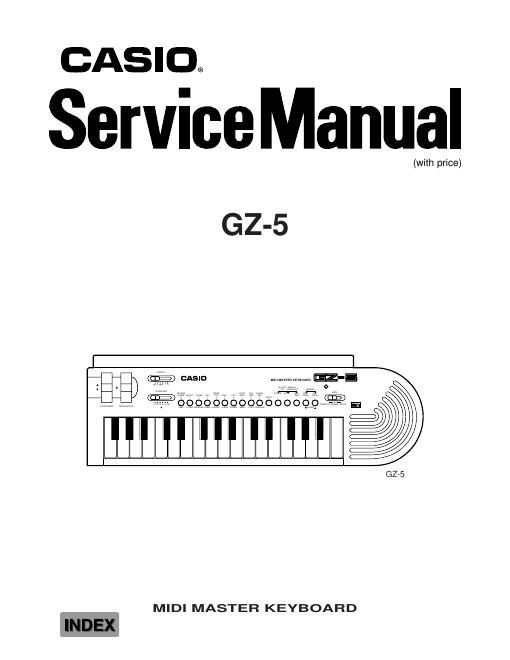

Casio gz 5 service manual
This is the 15 pages manual for casio gz 5 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from casio gz 5 service manual (Ocr-read)
Page 1
Ñ 2 Ñ ELECTRICAL Current Drain with 7.5 V DC: No Sound Output 35 mA ± 20% Maximum Volume 103 mA ± 20% with keys A2, B2, C3 and D3 pressed in Synth-Lead tone, Volume: Maximum Speaker Output Level at 10 cm away from the speaker 690 mV ± 20% with key C3 pressed in Synth-Lead tone Volume: Maximum Minimum Operating Voltage: 4.8 V SPECIFICATIONS GENERAL (Internal Mode) Number of Keys: 32 Polyphonic: 4-note Preset Tones: 10; Piano, E. Piano, Vibraphone, Organ, E. Guitar, E. Bass, Strings, Brass, Flute, Synth-Lead Controls: Volume control; 5 levels, Pitch bend switch, Modulation switch Built-In Speaker: 6.5 cm dia. 0.5 W input rating: 1 pec. Tuning: A4=442 Hz (fixed) Terminals: MIDI Output, AC Adapter Jack (DV 7.5 V) Power Source: DC: 4 AA size dry batteries Battery life: Approx. 6 hours (SUM-3/R6P) AC: AC Adapter AD-1 Power Consumption: 0.7 W when operating by batteries 1.0 W when operating by an AC adapter Dimensions (HWD): 50 x 399 x 132 mm (1-15/16 x 15-11/16 x 5-3/16 inches) Weight: 0.64 kg (1.4 lbs) including batteries CONTENTS Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Circuit Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Page 2
Ñ 3 Ñ MIDI Message Operation switch Setting Opeartion for setting Note No. Keyboard Octave shift switch Octave range See the fi gure below Velocity Keyboard Velocity switch Velocity value CONTROL + VELOCITY, XXX, ENTER Pitch Bend Pitch bend switch Bend sense Bend curve BEND SENS, XXX, ENTER BEND CURVE, X, ENTER Modulation Modulation switch Modulation depth MOD.DEPTH, XXX, ENTER OPERATION Transmitting MIDI Messages To transmit MIDI messages, set the Mode Switch to the MIDI OUT position. Operation 1 The note number is transmitted when the corresponding key is pressed. Use the Octave Shift Switch, and select the position appropriate to the octave range you want. GZ-5 can send note numbers 17 to 108 but it has 32 keys only. Velocity is also transmitted when a key is pressed. GZ-5 sends the velocity in accordance with the selected position of the velocity switch. Data of pitch bend and modulation is transmitted when the corresponding switch is operated. The values of the velocity, the pitch bend and the modulation switches are automatically set up to the initial value when turning on the power. See the appendix for information about the initial value. See the following table for instruction how to change the value. Example of operation : CONTROL + VELOCITY, XXX, ENTER Press CONTROL button and VELOCITY button at the same time. Use the 10-key pads, enter a 3-digit number. Press ENTER button. Position of the octave switch and octave range C1C4=60 C2 C3 C4 C5 C6 C1 C2 C3 C4 C5 C6
