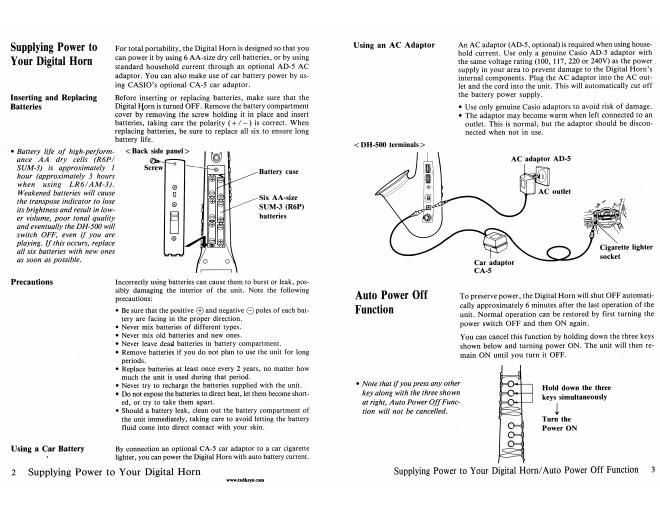

Supplying Power to
Your Digital Horn

Inserting and Replacing
Batteries

- Battery life of high-perform-
ance AA dry cells (R6P/
SUM-3) is approximately 1
hour (approximately 3 hours
when using LR6/AM-3).
Weakened batteries will cause
the transpose indicator to lose
its brightness and result in low-
er volume, poor tonal quality
and eventually the DH-500 will
switch OFF, even if you are
playing. If this occurs, replace

For total portability, the Digital Horn is designed so that you
can power it by using 6 AA-size dry cell batteries, or by using
standard household current through an optional AD-S AC
adaptor. You can also make use of car battery power by us-
ing CASIOs optional CA-S car adaptor.

Before inserting or replacing batteries, make sure that the
Digital Horn is turned OFF. Remove the battery compartment
cover by removing the screw holding it in place and insert
batteries, taking care the polarity (+/-) is correct. When
replacing batteries, be sure to replace all six to ensure long
battery life.

Using an AC Adaptor

< DH-500 terminals>

An AC adaptor (AD-5, optional) is required when using house-
hold current. Use only a genuine Casio AD-S adaptor with
the same voltage rating (100, 117, 220 or 240V) as the power
supply in your area to prevent damage to the Digital Horns
internal components. Plug the AC adaptor into the AC out-
let and the cord into the unit. This will automatically cut off
the battery power supply.

0 Use only genuine Casio adaptors to avoid risk of damage.

- The adaptor may become warm when left connected to an
outlet. This is normal, but the adaptor should be discon-
nected when not in use.

AC adaptor AD-S
\

all six batteries with new ones

as soon as possible.

Precautions

Using a Car Battery

._,
Screw fl Battery case
9 5
® (9
'3 63 Six AA-size
® 9 SUM-3 (R6?)
5 6 batteries
Q A <9

l o

Incorrectly using batteries can cause them to burst or leak, pos-
sibly damaging the interior of the unit. Note the following
precautions:

0 Be sure that the positive 6) and negative (3 poles of each bat-
tery are facing in the proper direction.

0 Never mix batteries of different types.

0 Never mix old batteries and new ones.

- Never leave dead batteries in battery compartment.

0 Remove batteries if you do not plan to use the unit for long
periods.

0 Replace batteries at least once every 2 years, no matter how
much the unit is used during that period.

0 Never try to recharge the batteries supplied with the unit.

- Do not expose the batteries to direct heat, let them become short-
ed, or try to take them apart. .

0 Should a battery leak, clean out the battery compartment of
the unit immediately, taking care to avoid letting the battery
fluid come into direct contact with your skin.

By connection an optional CA-S car adaptor to a car cigarette
lighter, you can power the Digital Horn with auto battery current.

2 Supplying Power to Your Digital Horn

wicukmmm

Auto Power Off
Function

0 Note that if you press any other
key along with the three shown
at right, Auto Power Off Func-

tion will not be cancelled.

Cigarette lighter

socket
Car adaptor

CA-S

To preserve power, the Digital Horn will shut OFF automati-
cally approximately 6 minutes after the last operation of the
unit. Normal operation can be restored by first turning the
power switch OFF and then ON again.

You can cancel this function by holding down the three keys
shown below and turning power ON The unit will then re-
main ON until you turn it OFF.

Hold down the three
keys simultaneously

l

Turn the
Power 0N

Supplying Power to Your Digital Horn/Auto Power Off Function 3
