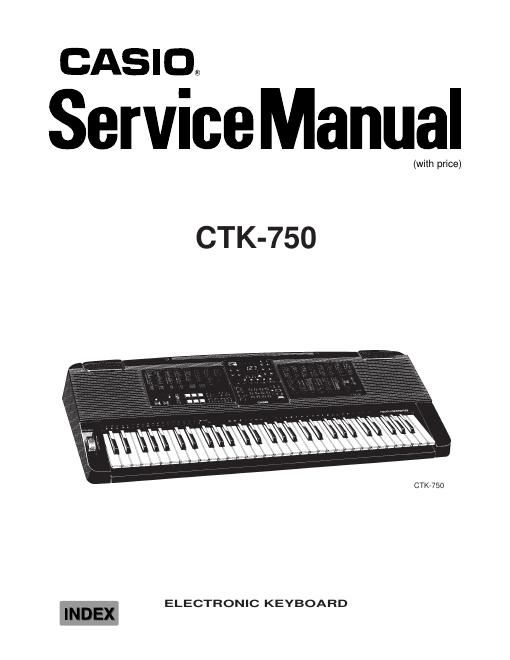

Casio ctk 750 service manual

Page 2

Ñ 1 Ñ General Number of Keys: 61 Polyphonic: 32-note Preset Tones: 128 Tone Expander: Layer, Split Keyboard Controls: Touch Response: On/Off Touch Sensitivity: Light/Middle/Heavy Key Transpose: Range from F# to F by a half-note increment Auto-Rhythms: 128 Tempo Control: 40 to 255 Auto-Accompaniment: CASIO Chord/Fingered/Full-Range Chord Controller: Variation, Fill-In, Intro/Ending Magical Preset Variations: 128; BREAK BEAT 16 MELODYCOMP 8 SHADOW DRUM 4 FREE SESSION 32 TONE STACK 40 KEY SPLIT 12 HYPERACTIVE 16 Digital Effects: 16; Reverb-1, Reverb-2, Reverb-3, Chorus, Tremplp, Phase Shifter, Organ SP, Enhancer, Flanger, EQ Loudness, Delay-1, Delay-2, Analog Delay, Tap Delay, Chorus Reverb, Tremolo Reverb Sound/Control Pads: 6 Pad Variations: 32; Phrases: 10, Drums: 10, SE/Percussion: 10, Controller: 2 Song Memories: 2; Tracks: 6 System: Real-time recording Memory Capacity: Approx. 5,800 notes Registration Memories: 10 Registration Items: Tone Number, Rhythm Number, Tempo, Accompaniment Mode, Accompaniment Volume, Effects, Layer On/Off, Split On/Off, Pad Variation, Assignable Jack, Auto-Accompaniment On/Off, Auto-Accompaniment Controller, MIDI (Channel On/Off, GM On/Off, Local Control On/Off, Bend Range) Tuning Control: 440Hz ± 100 cents Terminals: Headphone Jack [Output Impedance: 100 W, Output Voltage: 1.7 V(rms) MAX], Assignable Jack, MIDI Jacks (IN, OUT), AC Adaptor Jack (12V) Built-In Speakers: 12 cm dia. 1.1W Input Rating: 2 pcs. Power Source: 2-way AC or DC source AC: AC adaptor AD-12 DC: 6 D size dry batteries Battery life: Approx. 5 hours by manganese batteries R20P(SUM-1) Approx. 5 hours by alkaline batteries LR20(AM1) Auto Power Off: Approximately 6 minutes after the last operation Power Consumption: 18 W Dimentions: 141 x 968 x 411 mm (HWD) (5-11/16 x 38-1/16 x 16-5/16 inches) (HWD) Weight: 7.0 kg (15.5 lbs) excluding batteries Standard Accessory: Music stand SPECIFICATIONS
