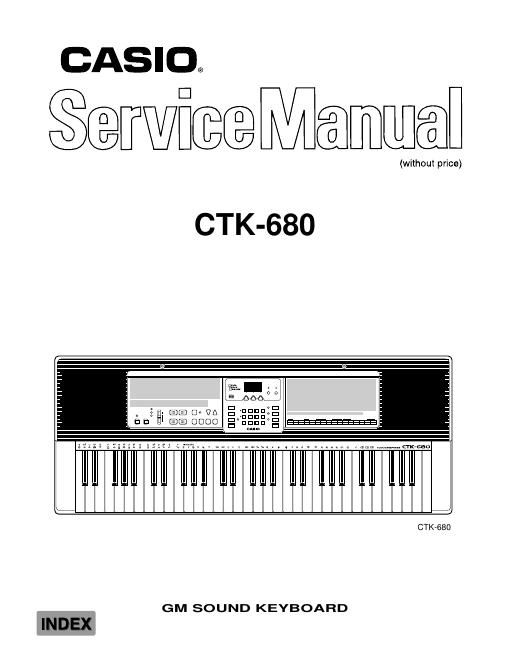

Casio ctk 680 service manual
This is the 25 pages manual for casio ctk 680 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from casio ctk 680 service manual (Ocr-read)
Page 1
Ñ 2 Ñ CONTENTS Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Circuit Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Major Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Printed Circuit Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 SPECIFICATIONS GENERAL Model: CASIO CTK-680 Keyboard: 61-key, 5-octave standard size keyboard with touch response (three sensi- tivity levels and OFF setting) Tones: 128 tones (Conform with General MIDI level 1) + 8 drum sounds with split/ layer features. Polyphony: 32 notes maximum Digital effects: 10 REVERB 1, REVERB 2, REVERB 3, CHORUS, TREMOLO, PHASE SHIFTER, ORGAN SPEAKER, ENHANCER, FLANGER, LOUDNESS Musical pads: 120 (four pads ´ 30 sets) Phrases (22 sets), drums/percussion (7 sets), controller (1 set) Phrases matche chord Demo tunes: 3, sequential repeat playback Auto-accompaniment Rhythm patterns: 100 Tempo: Adjustable (216 levels, q = 40 to 255) Chords: 3 types (CASIO Chords, Fingered, Full-Range Chords) Parts: Rhythm, bass, Chord 1, Chord 2, Chord 3 (adjustable on/off, tone, volume, pan, effect send, fine tune, coarse tune, expression settings) Others: Intro, Normal Fill-in, Variation Fill-in, Synchro/Ending Magical presets: 50 types (Break Beat, Melodycomp, Shadow Drum, Free Session) Registration memory: 10 Tone changes, tempo setting, auto-accompaniment volume setting, mode, layer on/off, Mixer settings, effect type, split on/off, rhythm type, auto- accompaniment rhythm assignment, pad type, chord fingering method, touch response setting, MIDI settings (including assignable jack settings), Magical Preset type Mixer Number of channels: 16 Parameters:TONE, VOLUME, PAN, EFFECT SEND, FINE TUNE, COARSE TUNE, EXPRESSION Multi-track memory Number of songs: 2 Tracks: 6 (tone, volume, auto accompaniment, magical presets, pan, effect send, fine tune, coarse tune, expression) Type: Real-time Capacity: Approximately 5,200 notes
Page 2
Ñ 3 Ñ Other functions Transpose: 25 levels (1 octave lower C to 1 octave upper C) Tuning: Adjustable: A4 = 440 Hz ± 50 cents Pitch Bender: Adjustable range: ± 12 semitones (bend up, bend down, bend saw) using musical pads Modulation: Vibrato setting and performances are done by a Musical pad. MIDI: 16-timbre multi-timbre receive (General MIDI Level 1) Speakers: 12 cm diameter ´ 2 (output: 2.5 W + 2.5 W) Input/Output Jacks Power supply: 9 V DC Headphones: Stereo mini jack Output jacks: Output impedance: 120 W Output voltage 4.2 V (RMS) MAX Assignable Jack: Standard jack (sustain, sostenuto, soft, rhythm start/stop) MIDI terminals: IN, OUT Power supply: 2-way Batteries: Six D-size batteries Battery life: Approximately 5 hours on R20P (SUM-1) manganese batteries AC adaptor: AD-5 (optional) Auto power off:Approximately six minutes after last key operation under battery power (disabled when AC adaptor is connected). Power consumption: 9 V --- 7.7 W Dimensions: 94.2 ´ 36.7 ´ 13.5 cm (31-7/16 ´ 14-1/2 ´ 4-3/8 inches) Weight: 5.2 kg (11.7 lbs) excluding batteries ELECTRICAL Current drain with 9 V DC: No sound output 320 mA ± 20% Maximum volume with 12 polyphonic notes in tone No. 022 960 mA ± 20% Volume; maximum Phone output level (Vrms with 8 W load each channel): Left channel 115 mV ± 20% with key C6 pressed in tone No. 042 Line output level (Vrms with 47 kW load each channel): Left channel 1280 mV ± 20% with key C5 pressed in tone No. 042 Minimum operating voltage: 5.75 V
