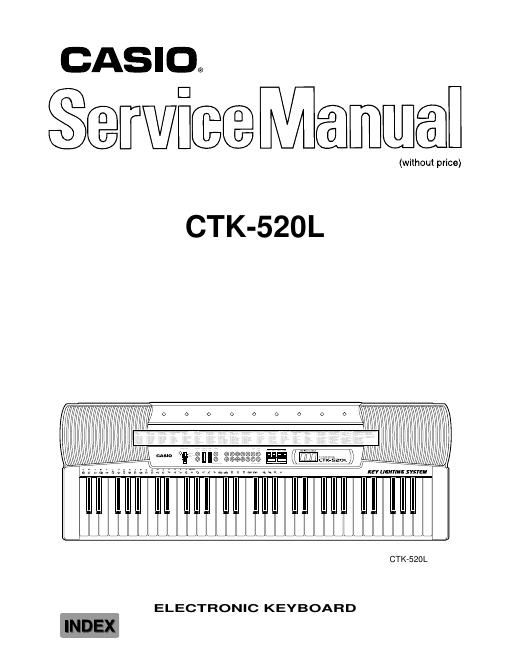

Casio ctk 520l service manual
This is the 21 pages manual for casio ctk 520l service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from casio ctk 520l service manual (Ocr-read)
Page 1
CONTENTS Page Specifications ................................................................................................................................... 1 Block Diagram .................................................................................................................................. 2 Circuit Description ............................................................................................................................ 3 Major Waveforms ............................................................................................................................. 6 Printed Circuit Boards ...................................................................................................................... 7 Schematic Diagrams ........................................................................................................................ 8 Exploded View ................................................................................................................................ 14 Parts List ........................................................................................................................................ 15
Page 2
Ñ 1 Ñ SPECIFICATIONS GENERAL Number of keys: 61 Polyphonic: 12-note Preset tones: 100 Transpose: F# ~ C ~ F: half-note Auto-rhythms: 50, Tempo: Adjustable, 216 steps (40 ~ 255), initial value: 120 Accompaniment: CASIO Chord, Fingered Song bank: 40-tune Digital volume control: 10 steps (0 ~ 9), initial value: 7 Tuning control: 440 Hz ± 50 cents Built-in speakers: 10 cm dia. 2 W input rating: 2 pcs Terminals: Headphone Jack (Output impedance: 50 ohm, Output voltage: 4.6 V (rms) MAX AC Adapter Jack (9 V) , Stereo standard Jack [Output impedance: 50 W, Output voltage: 2 V(rms) MAX] Auto power off: Approximately 6 minutes after the last operation Power source: 2-way AC or DC source AC: AC adapter DC: 6 AA size Power consumption: 7.7 W Dimensions (HWD): 89 ´ 924 ´ 325 mm (3-1/2 ´ 36-7/16 ´ 12-13/16 inches) Weight: 4.35 kg (9.6 lbs) excluding batteries ELECTRICAL Current drain with 9 V DC: No sound output 130 mA ± 20% Maximum volume 810 mA ± 20% with white keys C1 to G2 pressed in Synth-Lead 1 Volume: Maximum Phone output level (Vrms with 8 ohm load each channel): with key D3 pressed in Synth-Lead 1 95 mV ± 20% Speaker output level (Vrms with 4 ohm load each channel): with key D3 pressed in Synth-Lead 1 1050 mV ± 20% Minimum operating voltage: 6.3 V
