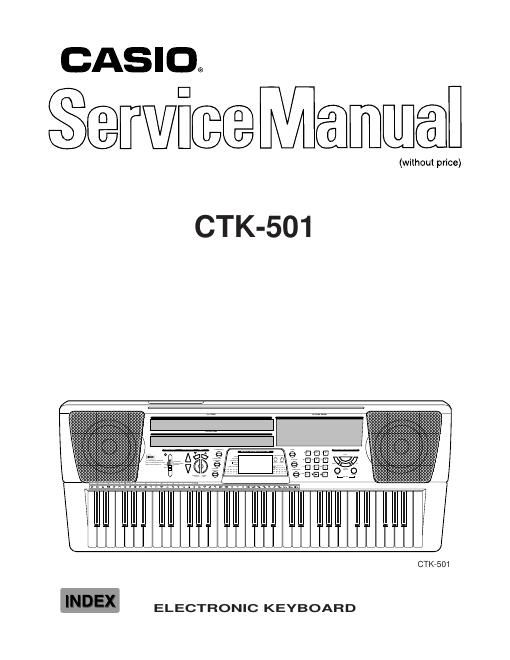

Casio ctk 501 service manual
This is the 21 pages manual for casio ctk 501 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from casio ctk 501 service manual (Ocr-read)
Page 1
CONTENTS Specifications ................................................................................................................................... 1 Block Diagram .................................................................................................................................. 2 Circuit Description ............................................................................................................................ 3 Adjustment ....................................................................................................................................... 7 Major Waveforms ............................................................................................................................. 8 Printed Circuit Boards ...................................................................................................................... 9 Schematic Diagrams ...................................................................................................................... 11 Exploded View ............................................................................................................................... 16 Parts List ........................................................................................................................................ 17
Page 2
Ñ 1 Ñ ELECTRICAL Current drain with 9 V DC: No sound output 120 mA ± 20% Maximum volume 750 mA ± 20% with 12 keys C1 to B1 pressed in Synth-Lead 1 Volume: Maximum Phone output level (Vrms with 8 W load each channel): with key G2 pressed in Synth-Lead 1 78 mV ± 20% Speaker output level (Vrms with 4 W load each channel): with key G1 pressed in Synth-Lead 1 1250 mV ± 20% Minimum operating voltage: 6.0 V SPECIFICATIONS GENERAL Keyboard: 61 standard-size keys, 5 octaves Tones: 100 Polyphony: 12 notes maximum (6 for certain tones) Auto accompaniment Rhythm patterns: 100 Tempo: Variable (236 steps, = 20 to 255) Chords: 2 fingering methods (CASIO CHORD, FINGERED) Rhythm controller: START/STOP, SYNCHRO/FILL-IN Accomp volume: 0 to 9 (10 steps) Song bank Tunes: 100 Controllers: PLAY/PAUSE, STOP, REW, FF, LEFT (ON/OFF), RIGHT (ON/OFF) Musical information Name display: TONE, RHYTHM, SONG BANK name/number Tempo: Tempo value, metronome, synchro standby, beat indicator Chord: Chord name, Chord form Fingering: Fingering indcators, parts, pedal Song bank status: PLAY, PAUSE, REW, FF Staff: 5 octaves with sharp and flat indications Keyboard: 5 octaves MIDI: 5 multi-timbre receive Other functions Transpose: 12 steps (Ð6 semitones to +5 semitones) Tuning: Variable (A4 = approximately 440 Hz ± 50 cents) Volume: 0 to 9 (10 steps) Terminals MIDI terminals: IN, OUT Sustain terminal: Standard jack Phones/Output terminal: Stereo standard jack Output Impedance: 78 W Output Voltage: 4 V (RMS) MAX Power supply terminal: 9 V DC Power supply Dual power supply system Batteries: Six D-size batteries Battery life: Approximately 10 hours on manganese batteries AC adaptor: AD-5 Auto power off: Turns power off approximately six minutes after last key operation. Enabled under battery power only, can be disabled manually. Speaker output: 2.0 W + 2.0 W Power consumption: 9 V --- 7.7 W Dimensions (HWD): 961 ´ 381 ´ 139 mm (37-7/8 ´ 15-1/16 ´ 5-1/2 inches) Weight: Approximately 5.4 kg (11.91 lbs) (without batteries)
