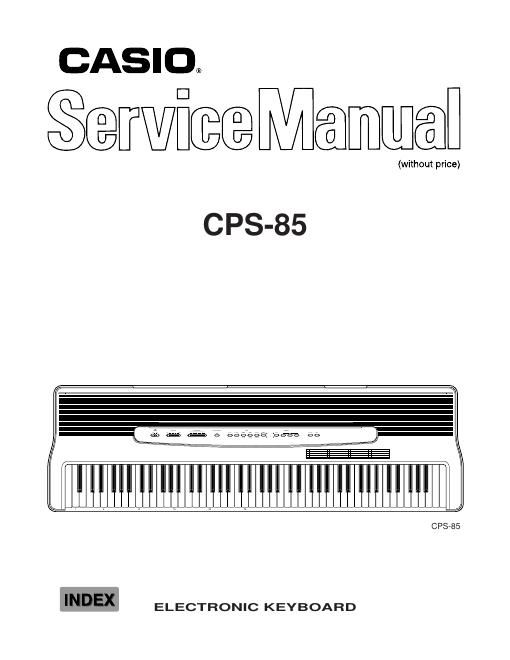

Casio cps 85 service manual

Page 2

Ñ 2 Ñ ELECTRICAL Current drain with 12 V DC: No sound output 240 mA ± 20 % Maximum volume with 24 keys from C1 to B2 pressed in Jazz organ tone 2050 mA ± 20 % Volume: maximum, Touch response: maximum Phone output level (Vrms with 8 W load each channel): with key E3 pressed in Jazz organ tone L-ch 60 mV ± 20 % R-ch 65 mV ± 20 % Speaker output level (Vrms with 4 W load each channel): with key E3 pressed in Jazz organ tone L-ch 860 mV ± 20 % R-ch 920 mV ± 20 % Lineout output level (Vrms with 47 kW load each channel): with key B5 pressed in Jazz organ tone L-ch 140 mV ± 20% R-ch 160 mV ± 20% Minimum operating voltage:6.5 V DAMPER PEDAL (standard mono jack ´ 1) DC 12 V (DC jack ´ 1) Power supplyDual power supply system Batteries: 6 D-size batteries Battery life: Approximately 4 hours on manganese batteries AC adaptor: AD-12 Auto power off: Turns power off approximately 5 minutes after last key operation. Enabled under battery power only, can be disabled manually. Power consumption:18 W Dimensions (HWD):100 ´ 1372 ´ 414 mm (without stand) (3-15/16 ´ 54-1/16 ´ 16-5/16 inches) Weight:Without stand and excluding batteries 16.8 kg (37.1 lbs)
