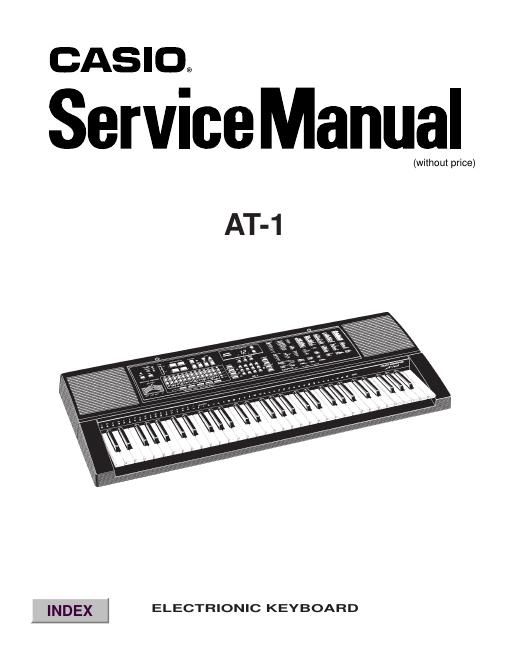

Casio at 1 service manual

Page 2

Ñ 1 Ñ General Number of Keys: 61 Polyphonic: 32-note Preset Tones: 100 Tone Expander: Layer, Split Keyboard Controls: Touch Response: On/Off Touch Sensitivity: Light/Middle/Heavy Key Transpose: Range from F# to F by a semitone increment Oriental Scale Control: Tune: On/Off, Mode: Cent/ Koma Tuning Rang: Quarter tone (±99 cents) and koma (±5 komas ) Scale Memories: 4 Auto-Rhythms: 50 Tempo Control: 40 to 255 Auto-Accompaniment: CASIO Chord/Fingered/Full-Range Chord Controller: Variation, Fill-In, Intro/Ending Magical Presets: 50; BREAK BEAT 20 FREE SESSION 24 KEY SPLIT 6 Digital Effects: 10; Reverb-1, Reverb-2, Reverb-3, Chorus, Tremolo, Phase Shifter, Organ SP, Enhancer, Flanger, EQ Loudness Sound/Control Pads: 4 Pad Variations: 32; Phrases: 10, Drums: 10, Percussion: 10, Controllers: 2 Song Memory: 1; System: Real-time recording Memory Capacity: Approx. 700 notes Pitch Bender: Bend Range; 2 semitones/3 semitones Registration Memories: 6 Registration Items: Tone Number, Rhythm Number, Tempo, Accompaniment Mode, Accompaniment Volume, Effects, Layer On/Off, Split On/Off, Chord On/Off, Accompaniment Scale On/Off, Pad Variation, Assignable Jack, Auto-Accompaniment Controller, MIDI (Channel On/Off, GM On/Off, Local Control On/Off, Bend Range) Tuning Control: 440Hz ± 50 cents Terminals: Headphone Jack [Output Impedance: 150 W, Output Voltage: 5.2 V(rms) MAX], Assignable Jack, MIDI Jacks (IN, OUT), AC Adaptor Jack (9 V) Built-In Speakers: 12 cm dia. 2.5 W Input Rating: 2 pcs. Power Source: 2-way AC or DC source AC: AC adaptor AD-5 DC: 6 D size dry batteries Battery life: Approx. 5 hours by manganese batteries R20P(SUM-1) Auto Power Off: Approximately 6 minutes after the last operation Power Consumption: 7.7 W Dimensions (HWD): 129 x 942 x 367 mm 5-1/16 x 37-1/16 x 14-7/16 inches Weight: 5.3 kg (11.7 lbs) excluding batteries Standard Accessory: Music stand, Dust cover SPECIFICATIONS
