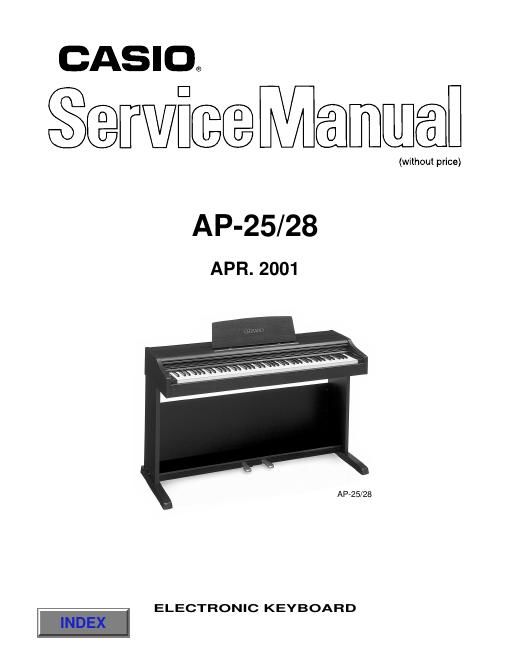

Casio ap 25 28 service manual

Page 2

Ñ 2 Ñ SPECIFICATIONS GENERAL Models: AP-25/AP-25V/AP-28/AP-28V Keyboard: 88 piano keys (with touch response) Polyphony: 64 notes, maximum Tones: 8 Digital Effects: Reverb (4 types), Chorus Demo Tunes: ¥ Number of Tunes: 8 ¥ Playback: Repeat (all tunes, one tune) Memory: ¥ Operations: Real-time recording, playback ¥ Capacity: Approximately 2,500 notes (one song) ¥ Memory Backup: Built-in lithium battery (Battery Life: 5 years) Pedals: AP-25/AP-25V: Damper, Soft/Sostenuto (Selectable) AP-28/AP-28V: Damper, Soft, Sostenuto Other Functions: ¥ Metronome: Beat (6 types), Tempo ( = 30 to 255) ¥ Touch Select: 3 types, off ¥ Transpose: 1 octave (F# to C to F) ¥ Tuning: A4 = 440Hz ±50 cents (adjustable) MIDI: 16 multi-timbre receive Input/Output: ¥ Headphones: Stereo standard jacks ´ 2 Output Impedance: 470W Output Voltage: 18V (RMS) MAX ¥ MIDI (OUT) (IN) Speakers: ¿ 12cm ´ 2 (Output: 20 W + 20 W) Power Supply: AP-25/AP-28: 120V AP-25V/AP-28V: 220-240V Power Consumption: AP-25/AP-28: 60W AP-25V/AP-28V: 60W Dimensions: ¥ CELVIANO (without stand): 137.0 ´ 42.5 ´ 19.0 cm (53 15/16 ´ 16 3/4 ´ 7 1/2 inch) ¥ CELVIANO: 139.0 ´ 47.0 ´ 81.0 cm (54 3/4 ´ 18 1/2 ´ 31 7/8 inch) Weight: ¥ CELVIANO (without stand): approximately 34 kg (74.8 lbs) ¥ CELVIANO: approximately 44 kg (96.8 lbs) (AP-25/AP-25V) approximately 44 kg (96.8 lbs) (AP-28/AP-28V) ¥ Design and specifications are subject to change without notice. ¥ AP-25 and AP-28 have hardwired power cords. ¥ AP-25V and AP-28V have detachable power cords.
