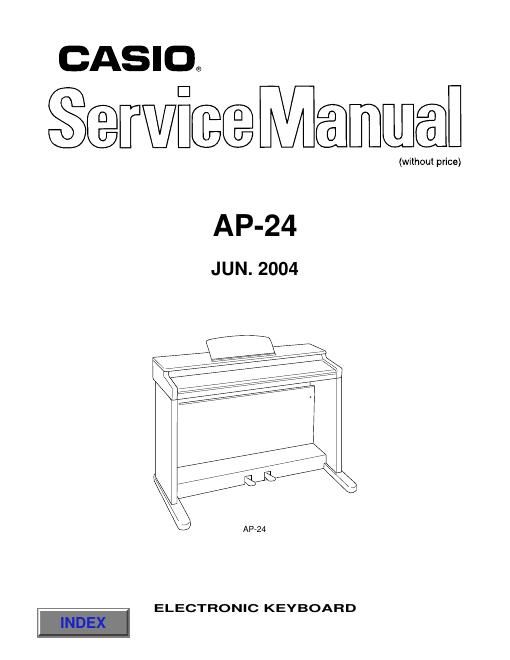

Casio ap 24 service manual
This is the 33 pages manual for casio ap 24 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from casio ap 24 service manual (Ocr-read)
Page 1
CONTENTS Specifications ---------------------------------------------------------------------------------------------- 1 Block Diagram --------------------------------------------------------------------------------------------- 2 Circuit Description --------------------------------------------------------------------------------------- 3 Printed Circuit Board ------------------------------------------------------------------------------------ 4 Disassembly ------------------------------------------------------------------------------------------------ 6 Diagnostic Program ------------------------------------------------------------------------------------ 15 Schematic Diagrams ----------------------------------------------------------------------------------- 17 Exploded View ------------------------------------------------------------------------------------------- 26 Parts List --------------------------------------------------------------------------------------------------- 28
Page 2
- 1 - SPECIFICATIONS GENERAL Keyboard: 88 piano keys (with touch response) Polyphony: 32 notes, maximum Tones: 10 tones (including two low-range tones for split), with layer and split Digital Effects: Reverb (4 types), Chorus (4 types) Demo Tunes: - Number of Tunes: 8 - Playback: Repeat (all tunes) User Songs: - Number of Songs: Up to 10 download songs - Capacity: Approximately 7600 notes (45 kilobytes) Memory: - Operations: Real-time recording, playback - Capacity: Approximately 5,200 notes (2 tracks) - Memory Backup: Built-in lithium battery (Battery Life: 5 years) Pedals: Damper, Soft/Sostenuto (Selectable) Other Functions: - Metronome: Beat (6 types), Tempo ( = 30 to 255) - Touch Select: 3 types, off - Transpose: 1 octave (F# to C to F) - Tuning: A4 = 440Hz ±50 cents (adjustable) MIDI: 16 multi-timbre receive Input/Output: - Headphones: Stereo standard jacks × 2 - MIDI (OUT) (IN) Speakers: ø12cm × 2 (Output: 20 W + 20 W) Power Supply: AP-24: 120V AP-24V: 220-240V Power Consumption: AP-24: 55W AP-24V: 58W Dimensions: - Digital Piano (without stand): 137.2 u 42.3 u 20.5 cm (54 1/16 × 16 11/16 × 8 1/16 inch) - Digital Piano: 138.5 × 43.2 × 81.0 cm (54 9/16 × 17 × 31 15/16 inch) Weight: - Digital Piano (without stand): approximately 34.0 kg (75.0 lbs) -Digital Piano: Approximately 44.0 kg (97.0 lbs)
