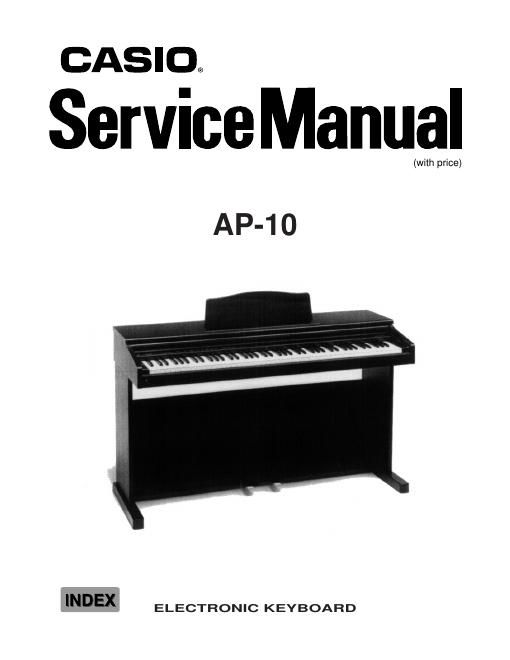

Casio ap 10 service manual

Page 2

Ñ 3 Ñ SPECIFICATIONS GENERAL Number of keys: 88 Polyphonic: 24-note Preset tones: 5, Piano-1, Piano-2, Electric Piano, Pipe Organ, Strings Layer: On/Off Key transpose: Range of ± 1 octave by a semitone increment Effects: Reverb-1/Reverb-2/Chorus reverb Demo tunes: 5, 1. Grande valse brillante (F.F. Chopin) 2. One-Eighty (CASIO original) 3. Harmonious blacksmith (G.F. Handel) 4. Fugue in G minor (J.S. Bach) 5. Rainbow (CASIO original) Memory: Number of songs: 2 System: Real-time recording Memory capacity: Approx. 1200 notes total Memory backup battery: Built-in lithium battery Battery life: Approx. 5 years Pedals: Damper, Soft/Sostenuto Tuning control: 440Hz ± 50 cents Built-In Speakers: 14 cm dia. 10 W input rating: 2 pcs. MIDI: 8-channel, multi-timbral reception Terminals: Line Out Jacks [Output impedance: 2 KW Output voltage: 1.5V (rms) MAX], Phone Jacks, MIDI Jacks (IN, OUT) Power source: 120V AC (for U.S.A.) 120V/220V/230V/240V (for other countries) Power consumption: 35 W (with 120V AC), 30 W (with 220V/230V/ 240V AC) Dimensions (HWD): Without stand: 165 ´ 1340 ´ 480 mm (6-1/2 ´ 52-13/16 ´ 18-15/16 inches) With stand: 805 ´ 1360 ´ 480 mm (31-11/16 ´ 53-9/16 ´ 18-15/16 inches) Weight: Without stand: 25.0 kg (55.1 lbs)/28.0 kg (61.7 lbs) With stand: 35.5 kg (78.3 lbs)/38.5 kg (84.9 lbs) Note: There are two models of AP-10, one has a keyboard cover, the other has no keyboard cover.
