Carvin passive pickups wiring diagrams
This is the 2 pages manual for carvin passive pickups wiring diagrams.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from carvin passive pickups wiring diagrams (Ocr-read)
Page 1

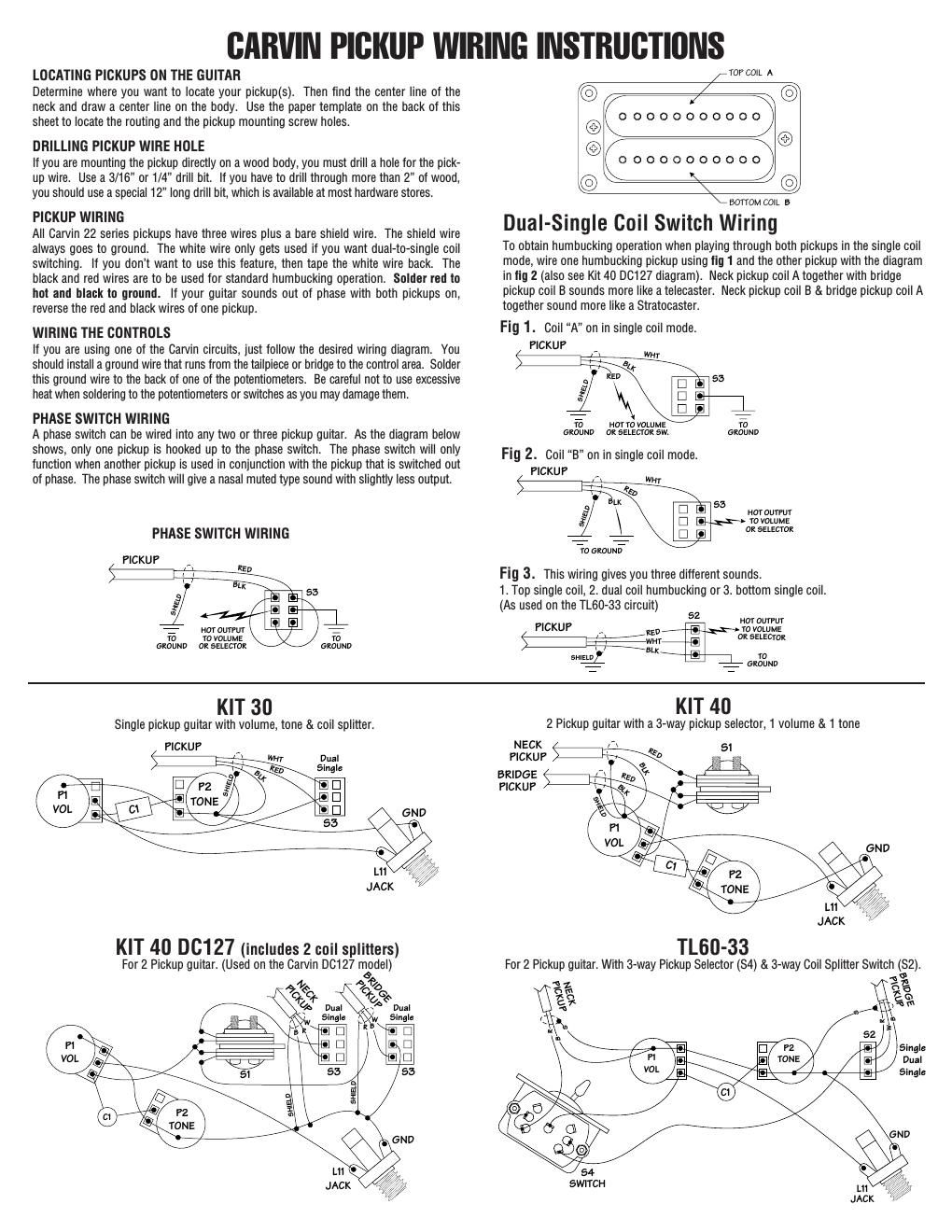

S60 & H60 Routing Template H50N Routing Template C22, H22 & M22 Routing Template 3 5/32" 3 5/16" 1 1/2" 1 7/16" ROUT 1" DEEP ROUT 5/8" DEEP 5/64" DRILL 1/2" DEEP ROUT 9/16" DEEP 3 3/4" 5/64" DRILL 1/2" DEEP 1 9/16" 15/16" 13/16" 1 7/32" 3" 3 5/16" 3/4" 5/64" DRILL 1/2" DEEP ROUT 5/8" DEEP P1 VOLP2 TONE NECK PICKUP MIDDLE PICKUP BRIDGE PICKUP C1 L11 JACKGND S5 SWITCH S S B B R R SB R Kit 50 with 5-way Pickup Selector 3 Pickup guitar with S5 switch. (Used on DC135 with 26 option) P2 TONE P1 VOL C1 S3 NECK PICKUPBRIDGE PICKUP BLK RED BLK BLK RED RED SHIELD SHIELD S3S3 MIDDLE PICKUP SHIELD GND L11 JACK KIT 50 3 Pickup guitar with 3 ON/OFF switches. (Used on the Carvin DC135 model) Use these templates to route for Carvin pickups. Templates are exact size.
