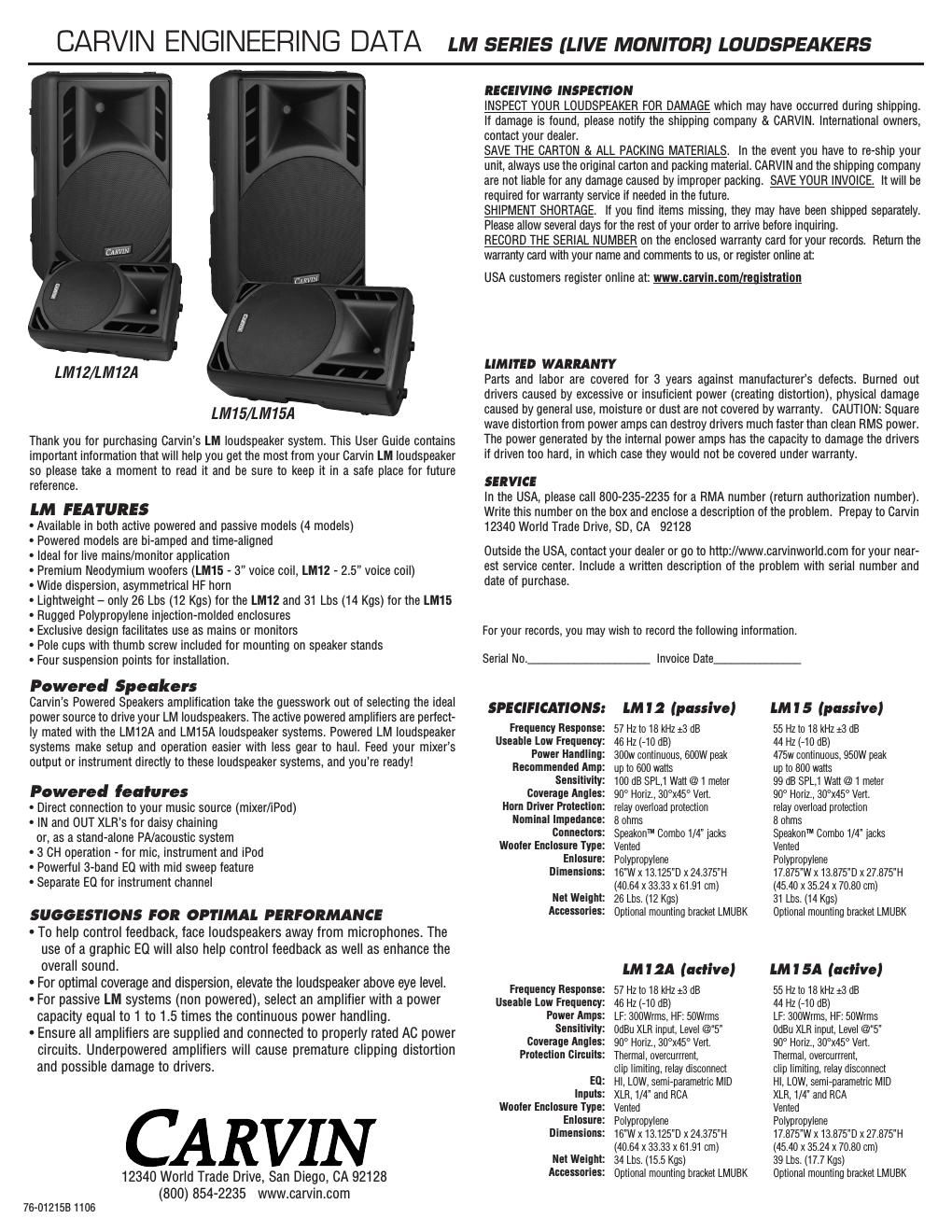

REAR CONNECT PLATEThe Speakon™ jacks will accept 1/4 or Speakon™ connectors. 1/4cables can be inserted directly into the center of the connector.Use the second connector to DAISY-CHAIN up to one additional speaker in parallel. Speakon pin configuration is: 1+ Positive / 1- Negative SPEAKER CABLES Use either Carvins PRO50S speaker cable for up to 50 or high-current 12GA Speakon™ cables for lengths up to 150. 18GA cables are not recomended. You can DAISY-CHAIN up to one additional speaker per cable by using the unused speaker connector. Be sure the total impedance to the amplifier is not lower than the amplifiers minimum impedance. 1. INPUT 1 XLR and 1/4 (TRS) JACKUse these as the primary input from a mixer (or MIC, see #2). Using a balanced connection will reduce noise, which may be picked up by the cable. You may DAISY-CHAIN as many powered systems as you wish (see #13) however, not non-powered systems (see speaker cables). 2. MIC IN SWITCHUse the OUT position for normal line-level mixer input (note: if this switch is left IN, all signals from the mixer will be distorted). Press this switch IN to add 30dB of gain to the XLR and 1/4 inputs of INPUT 1 so that a microphone can be used. 3. LEVEL CONTROLSThe LEVEL on LINE/MIC 1, INPUT 2, and INPUT 3 adjust the overall volume. 4. INPUT 2This input is designed with a high impedance (>100K ohms) for instruments such as a guitar. Other sources such as keyboards or drum machines can also be connected. 5. INSTRUMENT SWITCHPress the switch IN to provide an alternate tone for instruments on INPUT 2. 6. INPUT 3The RCA jacks are for iPods, MP3 players, CD players, keyboards, and DJ mixers. The signals from the two RCA inputs are combined into a mono signal. For stereo operation, a second active speaker is required feeding the Left (White) and Right (Red) RCA of each system. 7. SHAPE SWITCHPress the switch IN to change the EQ. Use for pre-recorded music on INPUT 3. 8. ACTIVE EQUALIZATIONThe active powered loudspeakers offer a 3-band mid sweep equalizer for custom tuning to the acoustical environment. The EQ system is engineered specifically for the active powered loudspeakers featuring a modest boost and cut range of ±6dB to prevent radical adjustments that could otherwise compromise the system. The Mid-band sweep is particularly useful for enhancing critical mid range frequencies for stage monitoring or for cutting certain frequencies to compensate for room resonances. 9. PROTECT LEDIf the system should go into protect mode, the YELLOW LED will light and the power amps will shut off. This may occur if; a) the system is overheated due to clipping the power amps for an extended period of time, b) one of the internal drivers developed a short, or c) the power amps require service. 10. CLIP LEDThe RED CLIP LED will flash if the internal power amps start to distort. Turn the LEVEL controls down to avoid distortion. Damage to the drivers can result from operating at a level where the RED CLIP LED is constantly illuminated. 11. POWER SWITCH and LEDPush this switch to the ON position to apply power to the unit. The blue POWER LED will light to show the system is on. Power up your mixer first, then turn on the LM Active System. When shutting down, turn the LM active speaker off first, then turn off the mixer. 12. AC POWERUse a standard grounded AC cord. Whenever possible, use dedicated circuits for powered speakers. The powered speakers are available in either 120V or 240V models. 13. OUTPUT XLRUse the second XLR to link as many active powered systems as you wish. (see #14) 14. OUT MIX/THRU SWITCH (for daisy chaining additional systems)Press the switch IN for a direct PARALLEL connection to INPUT 1 only - use with external mixer and for daisy chaining other LM systems.With the switch in the OUT position, the combination of all channels including the EQ are sent to the #13 OUTPUT XLR. This unit becomes the master source for other powered systems. OUT MIX / THRU ON OFF 90-250V AC 50-60Hz300VA CERTIFIED 20Hz 1 kHz 20 kH z ATTENU ATION dB Low Frequency High Frequen cy LowPassFilter HighPassFilter 300 W atts LS1502A 50Watts 20Hz 1 kHz 20 kHz ATTENU ATION dB Low Frequency High Frequenc y LowPassFilter HighPassFilter 300 Watts� 742A, 832A 50 Watts 20Hz 1 kHz 20 kHz ATTENU ATION dB Low Frequency High Frequenc y LowPassFilter HighPassFilter 300 Watts� 742A, 832A 50 Watts 300 watts 50 watts Speakon Connector ACTIVE POWERED MODELS NON-POWERED MODELS 1 3 6 73 5 4 32 8 91011 12 14 13 TROUBLESHOOTING TIPS - If the protect LED illuminates, cycle power switch off for ten seconds and reapply power.- Protect LED may illuminate due to the following reasons: overdriving, temperature, or failed speaker drivers.- Be sure pole mount thumb screw is tightened to avoid rattling which could be perceived as audible distorion. RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the prod - ucts enclosure that may be of suf - ficient magnitude to constitute a risk of electric shock to persons. THIS UNIT CONTAINS HIGH VOLTAGE INSIDE! IMPORTANT! FOR YOUR PROTECTION, PLEASE READ THE FOLLOWING:WATER AND MOISTURE: Do not expose this appliance to rain or moisture. Do not use this apparatus near water (in a wet basement, near a swimming pool, bathtub etc). Care should be taken so that liquids are not spilled or splashed onto the unit. Do not place objects filled with liquids such as beverage containers on this apparatus.POWER SOURCES: The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the unit. Unplug during lightning storms.GROUNDING OR POLARIZATION: Precautions should be taken so that the grounding or polarization means of an appliance is not defeated.POWER CORD: Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs and the point where they exit from the appliance. The plug or power inlet is the disconnect device and shall remain readily operable.PLACEMENT: Do not block ventilation openings. Do not install near heat sources such as radiators, stoves or other products that produce heat. Do not install in a confined area. Use only mounting hardware such as brackets and tripods recommended by the manufacturer.SERVICING: The user should not attempt to service the unit. All servicing should be referred to qualified service personnel.FUSING: If your unit is equipped with a fuse receptacle, replace only with the same type fuse. Refer to replacement text on the unit for correct fuse type. This symbol is intended to alert the user to the presence of important operating and maintenance (servic - ing) instructions in the literature accompanying the appliance. LIMITED WARRANTY Your Carvin product is guaranteed against failure for 3 YEARS unless otherwise stated. Carvin will service and supply all parts at no charge to the customer providing the unit is under warranty. Shipping costs are the responsibility of the customer. CARVIN DOES NOT PAY FOR PARTS OR SERVICING OTHER THAN OUR OWN. A COPY OF THE ORIGINAL INVOICE IS REQUIRED TO VERIFY YOUR WARRANTY. This warranty does not cover, and no liability is assumed, for damage due to: natural disasters, accidents, abuse, loss of parts, lack of reasonable care, incorrect use, or failure to follow instructions. This warranty is in lieu of all other warranties, expressed or implied. No representative or person is authorized to represent or assume for Carvin any liability in connection with the sale or servicing of Carvin products. CARVIN SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. When RETURNING merchandise to the factory, you must call for a return authorization number. If your unit is out of warranty, you will be charged the current FLAT RATE for parts and labor to bring your unit up to factory specifications. HELP SECTION1) UNIT WILL NOT TURN ON: Check the power to the AC cord. Check for tripped circuit breakers, unplugged extension cords or power-strip switches that may be turned off. Check the fuse or circuit breaker on the unit if available. If the fuse has been replaced with the proper value and the fuse fails again, or the internal circuit breaker activates after reset, the unit will require servicing.2) NO OUTPUT with POWER light ON: Shipping damage will be the primary reason for your product to not function properly. Please give us a call to help you determine the problem. 3) KEEP YOUR UNIT LOOKING NEW: Use only a dry cloth to wipe the control and venting areas. Surfaces without openings may be cleaned with a damp cloth. REFER SERVICING TO A QUALIFIED TECHNICIAN CAUTION ACTIVE REAR PANEL: (CONNECT PLATE) OUT TAPE INL R GAIN8 LEVEL LOW MON 03612369 912 543210 109876543210 109876 HI03612369 912MID 03612369 912 EFFOFF369963PAN0----L R---- MIC LINE EFF2EFF1 Optional FS22 Footswitch dcm 19CHANNEL1234567891011121315172230500 dB12 CHANNEL123456789101112131517192230500 dB 250500100 CHANNEL 1 1K2.5K 084481212+- 5K10K10K10K084481212+- 250500100 CHANNEL 1 1K2.5K 084481212+- 5K10K10K10K084481212+- PROTECT ∞503022191715131211109876543210 dB DCM10001000 Watt Power Amp CLIPSIGNAL∞503022191715131211109876543210 dBPOWER CHANNEL ONE C HANNEL TWO CLIPSIGNAL Tom iPod is a Trademark of Apple Computers Inc.
