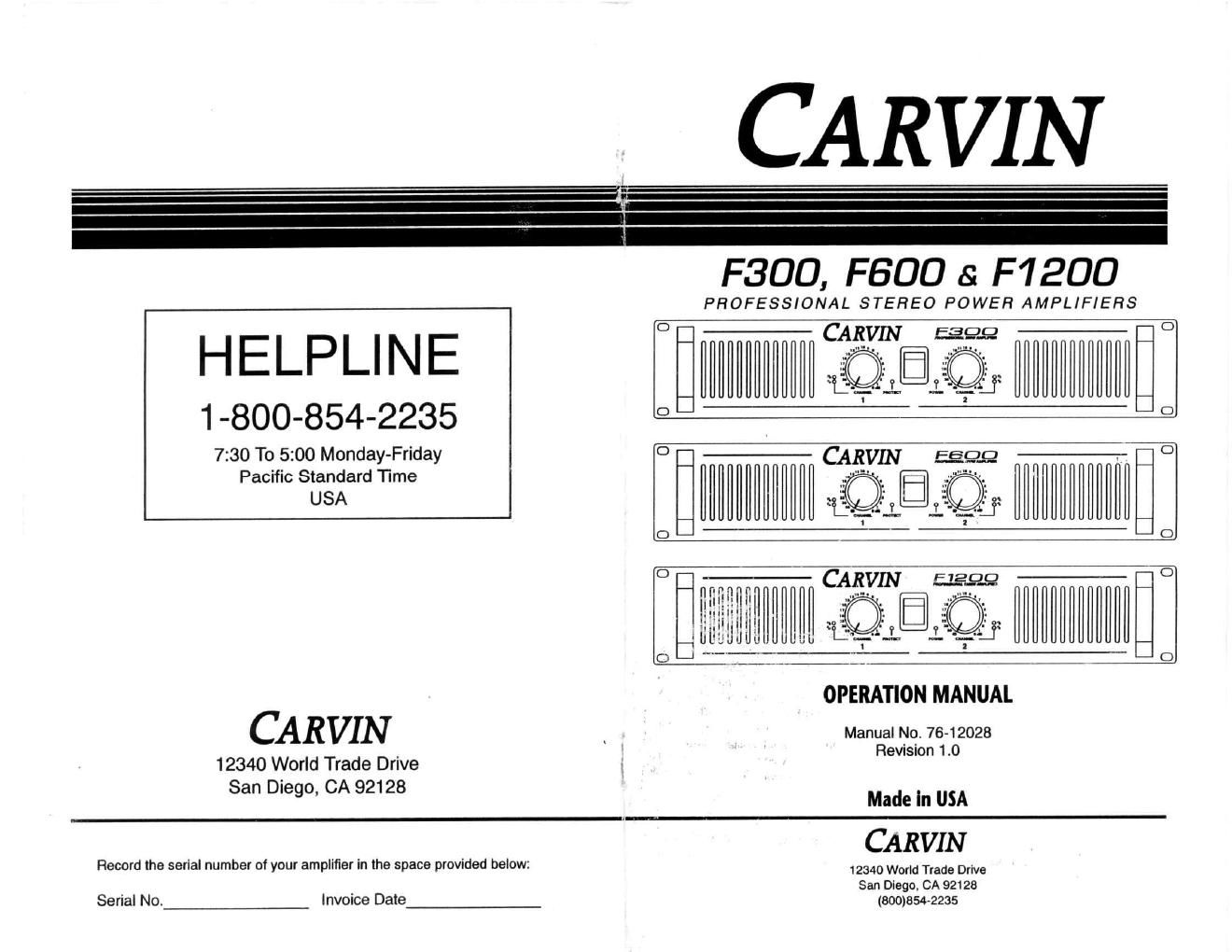

CARVIN

F300, F600 & F1200

PROFESSIONAL STEREO POWER AMPLIFIERS

i

HELPLINE OZWCAW E292 -:O
1-800-854-2235 0 3 1 o
7:30 To 5:00 Monday-Friday A 0
Pacific Standard Time 0 -
USA
:J o
- O
r E
L :Q
OPERATION MANUAL
CARVIN \ Manual N9. 76-12028
12340 World Trade Drive Rev'sm -°
San Diego, CA 92128 Made in USA
CARVIN
Record the serial number of your amplifier in the space provided below: 12340 World Trade Drive

. . San Diego, CA 92128
Serial No. Invoice Date (800)854-2235

Page 2

RECEIVING INSPECTION

INSPECT VOUFl AMPLIFIER FOR ANY DAMAGE which may have occurred during ship-
ment if any damage Is found. notify the shipping company and call CAFlVlN immediately.

SAVE THE CARTON 8. ALL PACKING MATERIALS, In the event you have to reship this
amplifier. always use the original canon and packing material. This will provide the best
possible protection during shipment. Neither CARVIN nor the shipping company are liable
for damage caused by improper packing.

SAVE YOUR INVOICE. It will be required for warranty service. Immediately check your
invoice against the Items received.

SHIPMENT SHOHTAGE. It items are missing. It may be that they were shipped sepa-
rately, Please allow several days tor the balance of your order to arrive before inquiring, If
you determine (after allowing an appropriate amount of time) you have not received all the
items you ordered, please call CARVIN.

FOR THE NEW OWNER

Carvins F-Series of professional stereo amplifiers represent the state of the art in linear
audio power amplification technology.

From small clubs to sports arenas you'll love the crystal clear sound these amplifiers pro
vide. Their light-weight, compact design is complemented by heavy duty construction per-
fectly suited for the rigors of road use. Theylre available In three power levels to fit the
widest possible range of applications.

It all starts with a massive precision toroidal power transformer. This type of transformer
is praised for its efficient transfer of energy and the way it confines noise fields quietly
within its coils \Mth this quiet efficiency also comes lighter weight One of the main rea-
sons Carvin is able to offer a substantial 1,200 Watts of power from a two rack unit pack-
age weighing only 25 pounds.

But thats just the beginning. A specially designed cooling chamber funnels the air vol»
ume of an average sized refrigerator across the heatsinks every 20 seconds. The heatsink
size, shape and configuration are custom made and optimized with the help of computer
aided design. The height to width ratio pushes the envelope of aluminum extrusion tech-
nology. Our high fin count is the greatest in the Industry but even more impressive are the
675 micro-fins which increase the heat transferring surface area of the sink by a phenome-
nal 52%| Staggered mounting of the power transistors distributes heat evenly across the
entire heatsinlr to eliminate hotspots.

Each model in Garvin's F twice Its power rating.

Garvins F-Series offers high quality audio in a tough, efficient package while providing
peace of mind reliability.

(arvfn's USA toll free number: 800-854-2235
