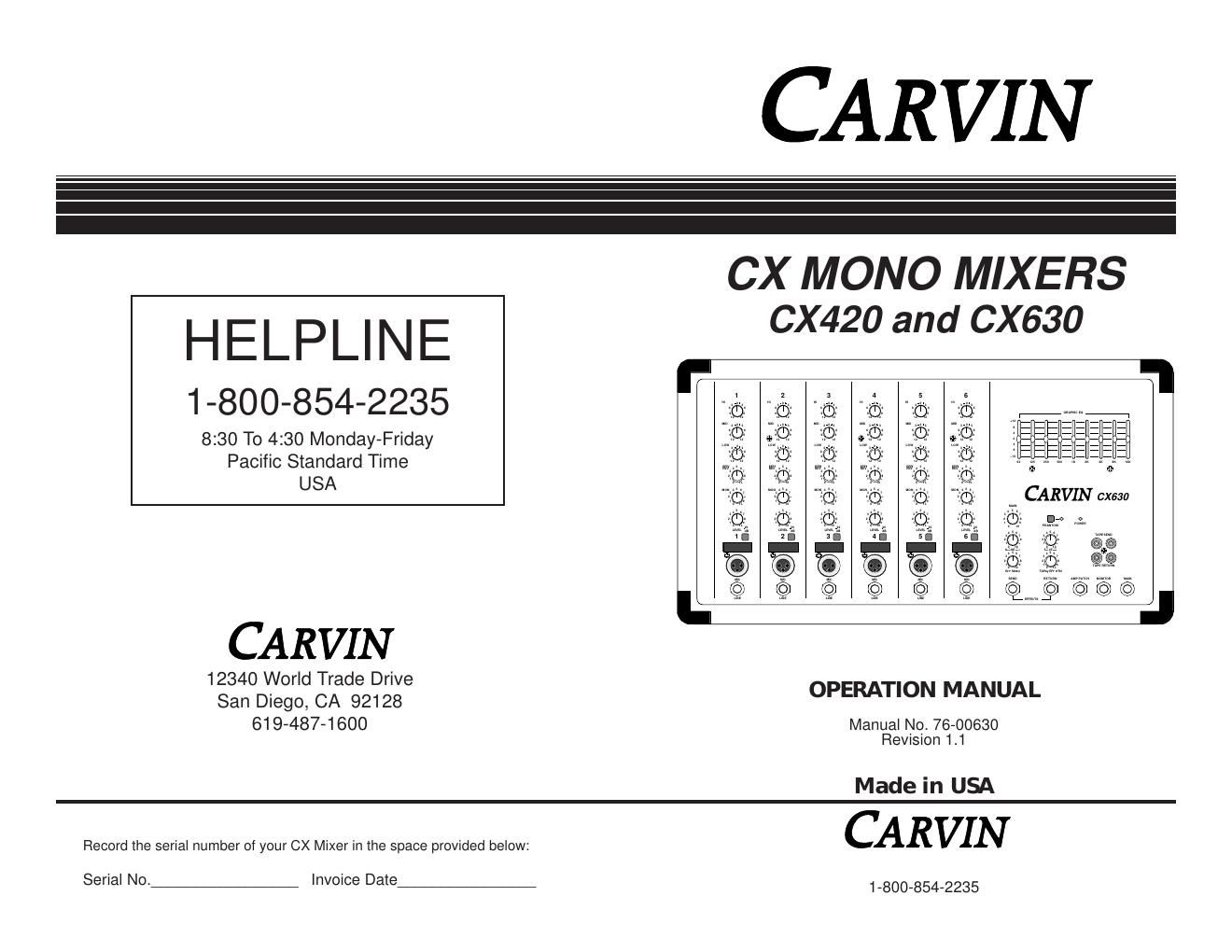

Carvin cx 630 owners manual
This is the 12 pages manual for carvin cx 630 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from carvin cx 630 owners manual (Ocr-read)
Page 1
19 i Call Toll-Free 800-854-2235 if you need help with your CARVIN product. If you need to return it for service, our service department. will issue a Service Number so that we can expect your shipment. Write the Service Number on the carton and be sure to include a full description of every problem. Pack in its original carton using all its packing material. Return by UPS pre- paid. Units returned with physical damage, missing parts, or damage from improper service are not serviceable. REPAIRS UNDER WARRANTY (1Year) There is no charge for service under warranty. However, shipping is to be paid both ways by the customer. REPAIRS OUT OF WARRANTYIf your warranty has expired, call us for the current flat rate service charge which includes parts, labor and testing to bring your unit up to factory specifications. SERVICING IN YOUR AREA You may select your own service center or have your own qualified technician work on the unit at your own expense. This will not void the warranty unless damage was done because of improper servicing. Under the ONE YEAR WARRANTY, Carvin will ship parts pre-paid to you or your technician provided the defective part(s) are first returned for our inspection. If you do not have a qualified service person, we ask that you do not involve yourself in servicing the unit. EXTENDED WARRANTY An extended warranty is available beyond the normal one year period. Please call 1-800-854- 2235 for more information. LIMITED WARRANTY Your Carvin Professional Series Product is guaranteed against failure for ONE YEAR. Carvin will service the unit and supply all parts at no charge to the customer provided the unit is under warranty. CARVIN DOES NOT PAY FOR PARTS OR SERVICING OTHER THAN OUR OWN. This warranty is extended to the original purchaser only and is not transferable. THIS WARRANTY DOES NOT INCLUDE FAILURES CAUSED BY INCORRECT USE, INADE- QUATE CARE OF THE UNIT, OR NATURAL DISASTERS. A COPY OF THE ORIGINAL INVOICE IS REQUIRED TO VERIFY YOUR WARRANTY. Carvin takes no responsibility for any horn driver or speaker damaged by this unit. This warranty is in lieu of all other warranties, expressed or implied. No representative or person is authorized to represent or assume for Carvin any liability in connection with the sale or servicing of Carvin products. No liability is assumed for damage due to accident, abuse, lack of reasonable care, loss of parts, or failure to follow CarvinÕs directions. CARVIN SHALL NOT BE LIABLE FOR INCIDENTAL OR CON- SEQUENTIAL DAMAGES. In the interest of creating new products and improving existing ones, Carvin is continually researching the latest state of the art audio design methods, and modern packaging and production techniques. Thus, Carvin reserves the right to make changes in its products and specifications without notice or obligation. 1-800-854-2235 (619) 487-1600 M-F 8 to 4:30 INSPECT YOUR CX MIXER FOR ANY DAMAGE which may have occurred during shipping. If any damage is found, notify the shipping company and call CARVIN immediately. SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to reship your mixer, always use the original carton and packing material. This will provide the best possible protection for the mixer during shipment. CARVIN and the shipping company are not liable for any damage caused by improper pack- ing. SAVE YOUR INVOICE. It will be required for warranty servicing of your unit. Always check the invoice against the items you have received. SHIPMENT SHORTAGE. If you find some items missing, it may be that they were shipped separately. Please allow several days for the rest of your order to arrive before inquiring. If you determine (after allowing an appropriate amount of time) you have not received all the items you ordered, please call CARVIN. RECEIVING INSPECTION FOR THE NEW OWNER WARRANTY AND SERVICE INFORMATION Congratulations on your selection of CARVIN products: ÒThe ProfessionalÕs Choice.Ó Your new CX series mixer demonstrates CARVINÕs commitment to producing the highest quality and most sophisticated engineering in the audio industry today. Its wide acceptance and use by industry professionals illustrates the basis for CARVINÕs recognition as ÒThe ProfessionalÕs Choice.Ó The CX series mixers were designed with the desire to pack as many high per- formance features into the smallest package we could, without sacrificing the quality of any one of the features or the mixer. The CX630 features a full func- tion 6 channel mixer, a nine band graphic equalizer and a 200 Watt power ampli- fier (100 Watts per speaker output into 8 ohms). The CX420 is a 4 channel ver- sion of the CX630 with a 150 Watt power amplifier (75 Watts per speaker output into 8 ohms). Each CX series mixer is the size of a 5 space rackmount unit, sur- rounded by a 3/4Ó poplar plywood cabinet covered with Duratuffª carpeting, making the CX mixer road worthy and ready for a show anywhere. If you would like to comment on any features or the performance of your new mixer, please feel free to contact us. Comments from our customers have helped us to improve and further develop our products and our business. May you enjoy many years of success and fun with your new CARVIN mixer! CarvinÕs toll free number: 800-854-2235
Page 2
17 2 R16 Resistor, 10K, 1/4W, ±5% 50-10045 R17 Resistor, 10K, 1/4W, ±5% 50-10045 R18 Resistor, 4.70K, 1/4W, ±5% 50-47035 R19 Resistor, 4.70K, 1/4W, ±5% 50-47035 R20 Resistor, 22½, 1/2W, ±5% 52-22015 R21 Resistor, 22½, 1/2W, ±5% 52-22015 R30 Resistor, 47K, 1/4W, ±5% 50-47045 R31 Resistor, 2.2K, 1/4W, ±5% 50-22035 R32 Resistor, 33K, 1/4W, ±5% 50-33045 R33 Resistor, 27K, 1/4W, ±5% 50-27045 R34 Resistor, 33K, 1/4W, ±5% 50-33045 R35 Resistor, 10K, 1/4W, ±5% 50-10045 R36 Resistor, 10K, 1/4W, ±5% 50-10045 R37 Resistor, 10K, 1/4W, ±5% 50-10045 R38 Resistor, 10K, 1/4W, ±5% 50-10045 R39 Jumper, 0½, Carbon, 0 50-00035 R40 Jumper, 0½, Carbon, 0 50-00035 R41 Resistor, 150K, 1/4W, ±5% 50-15055 R42 Resistor, 470½, 1/4W, ±5% 50-47025 R43 Resistor, 470½, 1/4W, ±5% 50-47025 R44 Resistor, 150K, 1/4W, ±5% 50-15055 R45 Resistor, 470½, 1/4W, ±5% 50-47025 R46 Resistor, 33K, 1/4W, ±5% 50-33045 R47 N/U R48 Jumper, 0½, Carbon, 0 50-00035 R49 Resistor, 150K, 1/4W, ±5% 50-15055 R50 Resistor, 470½, 1/4W, ±5% 50-47025 R51 Resistor, 4.70K, 1/4W, ±5% 50-47035 R52 Resistor, 47K, 1/4W, ±5% 50-47045 R53 Resistor, 100½, 1/4W, ±5% 50-10025 R54 Resistor, 150K, 1/4W, ±5% 50-15055 R55 Resistor, 10K, 1/4W, ±5% 50-10045 R60 Resistor, 2.4K, 1/4W, ±5% 50-24035 R61 Resistor, 150K, 1/4W, ±5% 50-15055 R62 Resistor, 2.2K, 1/4W, ±5% 50-22035 R63 Resistor, 220K, 1/4W, ±5% 50-22055 R64 Resistor, 2.2K, 1/4W, ±5% 50-22035 R65 Resistor, 300K, 1/4W, ±5% 50-30055 R66 Resistor, 2.4K, 1/4W, ±5% 50-24035R67 Resistor, 180K, 1/4W, ±5% 50-18055 R68 Resistor, 2.2K, 1/4W, ±5% 50-22035 R69 Resistor, 360K, 1/4W, ±5% 50-36055 R70 Resistor, 2.0K, 1/4W, ±5% 50-20035 R71 Resistor, 130K, 1/4W, ±5% 50-13055 R72 Resistor, 2.2K, 1/4W, ±5% 50-22035 R73 Resistor, 110K, 1/4W, ±5% 50-11055 R74 Resistor, 2.2K, 1/4W, ±5% 50-22035 R75 Resistor, 110K, 1/4W, ±5% 50-11055 R76 Resistor, 1.8K, 1/4W, ±5% 50-18035 R77 Resistor, 91K, 1/4W, ±5% 50-91045 R78 Resistor, 10K, 1/4W, ±5% 50-10045 R79 Resistor, 150K, 1/4W, ±5% 50-15055 R80 Resistor, 470½, 1/4W, ±5% 50-47025 R81 Resistor, 4.70K, 1/4W, ±5% 50-47035 R82 Resistor, 1K, 1/4W, ±5% 50-10035 R83 Resistor, 4.70K, 1/4W, ±5% 50-47035 R90 Resistor, 350½, 10W, ±10% 56-35010 R91 Resistor, 350½, 10W, ±10% 56-35010 R92 Jumper, 0½, Carbon, 0 50-00035 R93 Jumper, 0½, Carbon, 0 50-00035 R94 Jumper, 0½, Carbon, 0 50-00035 R95 Resistor, 680½, 1/4W, ±5% 50-68025 R96 Resistor, 15K, 1/4W, ±5% 50-15045 R97 Resistor, 22K, 1/4W, ±5% 50-22045 R98 Resistor, 22K, 1/4W, ±5% 50-22045 R99 Resistor, 10K, 1/4W, ±5% 50-10045 R100 Resistor, 33K, 1/4W, ±5% 50-33045 R101 Resistor, 680½, 1/4W, ±5% 50-68025 R102 Resistor, 15K, 1/4W, ±5% 50-15045 R103 Resistor, 22K, 1/4W, ±5% 50-22045 S1 Switch DPDT Push PC Mtg 25-02201 S4 Switch DPDT Push PC Mtg 25-02201 U1 100V/100W DMOS Audio Amp 60-72940 U2 100V/100W DMOS Audio Amp 60-72940 All ÒBÓ Reference Designators are 0 ohm jumpers. If youÕre like most new owners, youÕre probably in a hurry to plug your CX mixer in and use it. Here are some brief instructions to get you going quickly. With the mixer unplugged and turned off complete the following procedures: 1. CONNECTING AC POWER TO YOUR MIXER ¥ Check the rear panel to make sure the mixer received uses the proper AC Line Voltage. (USA 120VAC, Europe 240 VAC ...etc.) ¥ Use only a grounded (3 prong) power outlet to prevent a shock hazard. This gives the quietest grounding for your mixer. 2. CONNECTING SPEAKERS ¥ For connecting speakers, use the two 1/4Ó speaker jacks on the rear panel. These jacks are controlled by the main level control on the front panel. The speaker cables should be non-shielded and at least 18 gauge(AWG) wire. For speaker cable runs of over 20 feet 16 gauge wire is recommended. NOTE: Do not run your speakers through microphone cables, guitar cables, or multi-conductor microphone junction boxes or ÒsnakesÓ as they are sometimes referred to. This wire is normal- ly shielded and of a very light gauge causing a substantial loss of power and oscillations at high frequencies in the amplifier. All speaker wires must be non-shielded . 3. CONNECTING INPUTS TO YOUR MIXER ¥ For low level balanced devices such as microphones, plug into the balanced MICinputs using an XLR shielded microphone cable. ¥ For high level unbalanced devices such as Tape Recorders and Keyboards plug into the LINEinput jacks using a 1/4Ó phone shielded cable. 4. TURNING YOUR MIXER ON ¥ Adjust all channel and master level controls to the off position (fully counter clockwise). ¥ Adjust all ÒEQÓ tone controls, the channelÕs Hi, Mid, and Lo and the master 9 Band Graphic EQ, to their center detent position. ¥ Turn the mixer on by the rear panel power switch and watch for the power LED to come on. Your mixer is now ready to operate. QUICK START UP 3 2 1 4 6 7 5 # DESCRIPTION CARVIN # QTY Switch Cap Grey Extended 07-01603 7 Knob 11 D shaft (COLOR) 07-120-- --- Front Panel PCB (6 Chan) 80-0630-1 1 POWER TRANSFORMER 15-15070B 1 Accutronicsª REVERB TANK 70-00821 2 SPEAKER JACK PCB 80-0630-3 1 POWER AMP PCB 80-0630-2 1 Yellow Green Drk Grey 20 25 28 Color Knob Code 1.2.3.4.5.6.7. MAINTENANCE To bring back the new look, your CX mixer can be washed with mild detergent and/ or a warm damp soft cloth. This will remove normal dust and oil from the front and back panels. Never spray cleaners or detergents directly at the unit. The mixerÕs are virtually sealed from outside dust and dirt, but it is recommend- ed to keep the mixer free from dust, dirt, and moisture as much as possible.
