Carvin cx 1252 owners manual

This is the 12 pages manual for carvin cx 1252 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 12

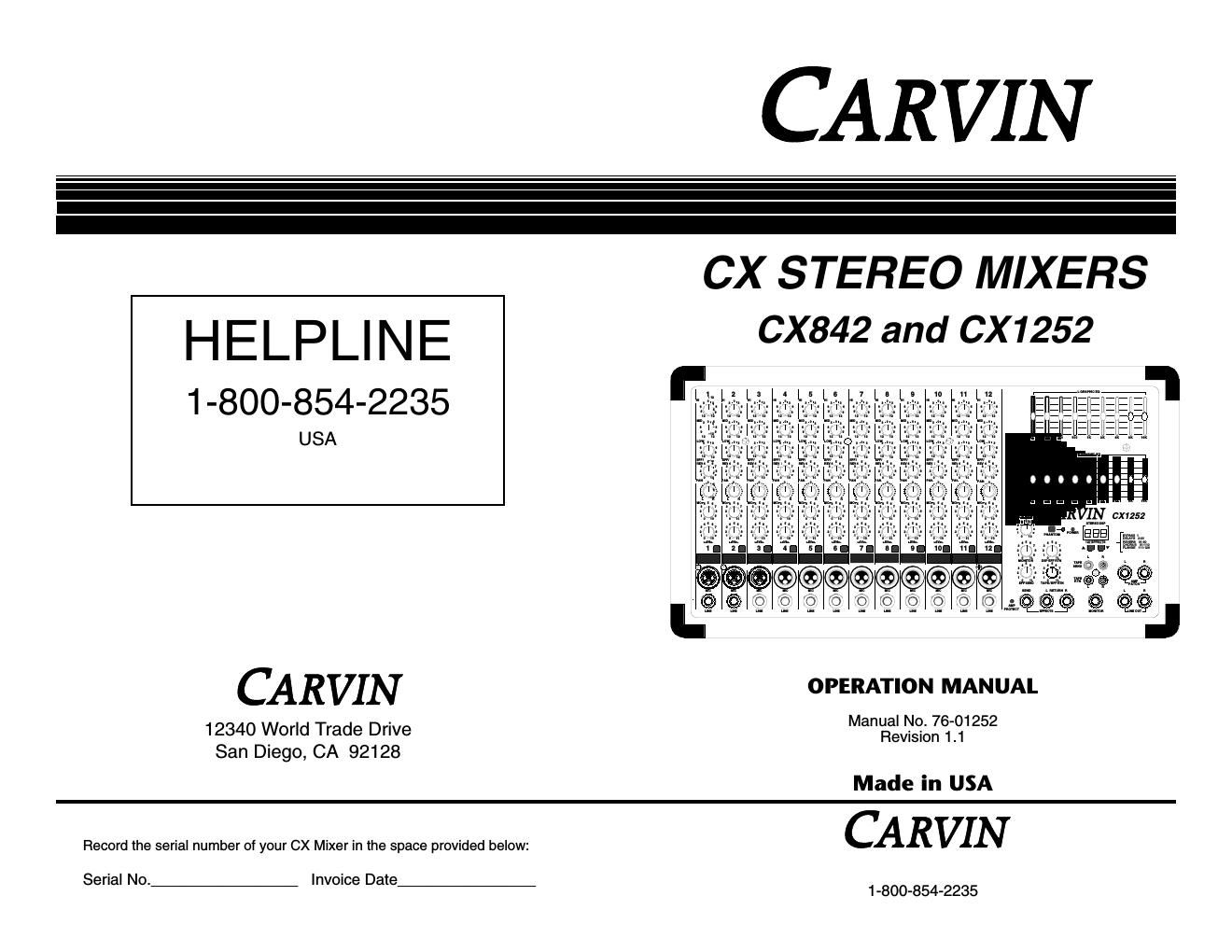

Extracted text from carvin cx 1252 owners manual (Ocr-read)

Page 1

19 Frequency Response:Mic or Line Inputs: 20Hz-20KHz ±2dB Total Harmonic Distortion:Less than .025% Equivalent Input Noise:150 ohm source: -120dBV Output Noise:-80dBu non-powered mixers ( All Levels Minimum ) -60dBu powered mixers Output Power:CX1252: 250Watts RMS/side @ 4Ω ( Power Mixers Only )CX842: 200Watts RMS/side @ 4Ω Maximum Gain:Mic in two-track main out: 70dB Crosstalk:Adjacent chs: -60db at 1KHz Common Mode Rejection:-60db at 1KHz Phantom Power:All channels Channel EQ.:3 band active, LOW: 100Hz ±12dB MID: 1.5KHz ±12dB HI: 10KHz ±12dB Graphic EQ.:9 Band Oct. Intervals ±12dB Mic Input:Balanced XLR input: -60 dBu Line Input:Unbalanced 1/4 Phone Jack -10dBV Power Consumption:CX1252: 620VA, CX842: 540VA Size:Box Model: (25lbs) 11H x 19.5W x9D Rack Model: 8.75H x 19W x 7.75D CX MIXER SPECIFICATIONS Fuse Selector Chart for 120 VAC Models Model Fuse Value Carvin # Size CX1252 6A, 250V, Slow Blow 70-22060 3AG, 1/4 x 1 1/2 (6.35 x 32mm) CX1252R 0.25A, 250V, Slow Blow 70-21002 3AG, 1/4 x 1 1/2 (6.35 x 32mm) CX842 6A, 250V, Slow Blow 70-22060 3AG, 1/4 x 1 1/2 (6.35 x 32mm) FUSE SELECTION Fuse Selector Chart for 240 VAC EXPORT Models Model Fuse Value Carvin # Size CX1252 3A, 250V, Slow Blow 70-22030 3AG, 1/4 x 1 1/2 (6.35 x 32mm) CX1252R 0.125A, 250V, Slow Blow 70-21001 3AG, 1/4 x 1 1/2 (6.35 x 32mm) CX842 3A, 250V, Slow Blow 70-22030 3AG, 1/4 x 1 1/2 (6.35 x 32mm) There are two versions of the CX842 and the CX1252. A 120 Volt AC version using the North American three prong plug and a 240 Volt AC version using the European CEE-7 plug. The following chart shows what fuse values to use for each model. i INSPECT YOUR CX MIXER FOR ANY DAMAGE which may have occurred during shipping. If any damage is found, notify the shipping company and call CARVIN immediately. SAVE THE CARTON & ALL PACKING MATERIALS. If you have to reship your mixer, always use the original carton and packing material. This will provide the best possible protection for the mixer during shipment. CARVIN and the shipping company are not liable for any damage caused by improper packing. SAVE YOUR INVOICE. It will be required for warranty servicing of your unit. Always check the invoice against the items you have received. SHIPMENT SHORTAGE. If you find some items missing, it may be that they were shipped separately. Please allow several days for the rest of your order to arrive before inquiring. If you determine (after allowing an appropriate amount of time) you have not received all the items you ordered, please call CARVIN. Congratulations on your selection of CARVlN products: The Professionals Choice. Your new CX series mixer demonstrates CARVINs commitment to producing the highest quality and most sophisticated engineering in the audio industry today. Its wide acceptance and use by industry professionals illustrates the basis for CARVINs recognition as The Professionals Choice. The CX series mixers were designed to be a professional quality mixer in a com- packed package. The desire was to pack as many professional features into the smallest package we could, without sacrificing the quality of any one of the fea- tures or the mixer. The CX1252 includes a full function 12 channel stereo mixer, two nine band graphic equalizers, a 128 preset digital signal effects processor, and a 500 Watt stereo power amplifier capable of 250 Watts a side into 4 ohms. The CX842 is an 8 channel stereo mixer with a 400 Watt power amplifier. The CX842 has all the features of the CX1252 including the two nine band graphic equalizers and the effects processor. Each CX series mixer is the size of a 5 space rackmount unit surrounded by a 3/4 poplar plywood cabinet covered with Duratuff carpeting making the CX mixer road worthy and ready for a show any- where. If you would like to comment on any features or the performance of your new mixer, please feel free to contact us. Comments from our customers have helped us to improve and further develop our products and our business. May you enjoy many years of success and fun with your new CARVIN mixer! Carvins toll free number: 800-854-2235 RECEIVING INSPECTION FOR THE NEW OWNER

Page 2

17 Ref Des Description CARVIN No. A1 IC4558 Op Amp Dual 60-45580 A2 IC4558 Op Amp Dual 60-45580 A3 IC4558 Op Amp Dual 60-45580 A4 IC4558 Op Amp Dual 60-45580 A5 IC4558 Op Amp Dual 60-45580 A6 IC4558 Op Amp Dual 60-45580 A7 IC4558 Op Amp Dual 60-45580 A9 IC4558 Op Amp Dual 60-45580 A10 IC4558 Op Amp Dual 60-45580 A11 IC4558 Op Amp Dual 60-45580 A12 IC4558 Op Amp Dual 60-45580 A13 IC4558 Op Amp Dual 60-45580 A14 IC4558 Op Amp Dual 60-45580 A15 IC4558 Op Amp Dual 60-45580 A16 IC4558 Op Amp Dual 60-45580 A17 IC4558 Op Amp Dual 60-45580 A18 IC4558 Op Amp Dual 60-45580 A19 IC4558 Op Amp Dual 60-45580 C1 Capacitor Ceramic 82PF 500 Volt 5% 45-82052 C2 Capacitor Ceramic 82PF 500 Volt 5% 45-82052 C3 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C4 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C5 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C6 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C7 Capacitor Ceramic 27PF 500 Volt 5% 45-27052 C8 Capacitor Ceramic 27PF 500 Volt 5% 45-27052 C9 Capacitor Ceramic 330PF 1000 Volt 10% 45-33113 C10 Capacitor Poly .0047µF 100 Volt 10% 46-47212 C11 Capacitor Ceramic 39PF 500 Volt 5% 45-39052 C12 Capacitor Electrolytic 47µF 63Volt 20% 47-47061 C13 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C14 Capacitor Poly .047µF 100 Volt 10% 46-47312 C15 Capacitor Poly .047µF 100 Volt 10% 46-47312 C16 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C17 N/U C18 Capacitor Electrolytic 470µF 16 Volt 20% 47-47116 C19 Capacitor Electrolytic 470µF 16 Volt 20% 47-47116 C20-27 N/U C28 Capacitor Electrolytic 470µF 16 Volt 20% 47-47116 C29 N/U C30 Capacitor Ceramic 180PF 500 Volt 5% 45-18152 C31 Capacitor Ceramic 180PF 500 Volt 5% 45-18152 C32 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C33 Capacitor Ceramic 39PF 500 Volt 5% 45-39052 C34 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C35 Capacitor Ceramic 39PF 500 Volt 5% 45-39052 C36 N/U C38 Capacitor Ceramic 82PF 500 Volt 5% 45-82052 C39 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C41 Capacitor Ceramic 82PF 500 Volt 5% 45-82052 C42 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C44 Capacitor Ceramic 39PF 500 Volt 5% 45-39052 C45 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C46 Capacitor Ceramic 39PF 500 Volt 5% 45-39052 C47 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C48 Capacitor Ceramic 39PF 500 Volt 5% 45-39052 C49 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C50 N/U C51 Capacitor Poly .047µF 100 Volt10% 46-47312 C52 Capacitor Electrolytic 470µF 16 Volt 20% 47-47116 C53 Capacitor Electrolytic 470µF 16 Volt 20% 47-47116 C54 Capacitor Electrolytic 470µF 16 Volt 20% 47-47116 C70 Capacitor Poly .47µF 100V 10% 46-47412 C71 Capacitor Poly .022µF 100 Volt 46-22312 C72 Capacitor Poly .1µF 100 Volt 10% 46-10412 C73 Capacitor Poly .0047µF 100 Volt 10% 46-47212 C74 Capacitor Poly .033µF 100 Volt 10% 46-33312 C75 Capacitor Poly .001µF 100 Volt 10% 46-10212 C76 Capacitor Poly .0068µF 100 Volt 10% 46-68212 C77 Capacitor Poly .001µF 100 Volt 10% 46-10212 C78 Capacitor Poly .0022µF 100 Volt 10% 46-22212 C79 Capacitor Ceramic 250PF 500 Volt 5% 45-25152 C82 Capacitor Poly .22µF 100 Volt 10% 46-22412 C83 Capacitor Poly .01µF 100 Volt 10% 46-10312 C84 Capacitor Poly .068µF 100 Volt 10% 46-68312 C85 Capacitor Poly .0033µF 100 Volt 10% 46-33212 C86 Capacitor Poly .022µF 100 Volt 46-22312 C87 Capacitor Poly .001µF 100 Volt 10% 46-10212 C88 Capacitor Poly .0047µF 100 Volt 10% 46-47212 C89 Capacitor Ceramic 330PF 1000 Volt 10% 45-33113 C90 Capacitor Ceramic 56PF 500 Volt 5% 45-56052 C91 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 C93 Capacitor Poly .47µF 100V 10% 46-47412 C94 Capacitor Poly .022µF 100 Volt 46-22312 C95 Capacitor Poly .1µF 100 Volt 10% 46-10412 C96 Capacitor Poly .0047µF 100 Volt 10% 46-47212C97 Capacitor Poly .033µF 100 Volt 10% 46-33312 C98 Capacitor Poly .001µF 100 Volt 10% 46-10212 C99 Capacitor Poly .0068µF 100 Volt 10% 46-68212 C100 Capacitor Poly .001µF 100 Volt 10% 46-10212 C101 Capacitor Poly .0022µF 100 Volt 10% 46-22212 C102 Capacitor Ceramic 250PF 500 Volt 5% 45-25152 C105 Capacitor Poly .22µF 100 Volt 10% 46-22412 C106 Capacitor Poly .01µF 100 Volt 10% 46-10312 C107 Capacitor Poly .068µF 100 Volt 10% 46-68312 C108 Capacitor Poly .0033µF 100 Volt 10% 46-33212 C109 Capacitor Poly .022µF 100 Volt 46-22312 C110 Capacitor Poly .001µF 100 Volt 10% 46-10212 C111 Capacitor Poly .0047µF 100 Volt 10% 46-47212 C112 Capacitor Ceramic 330PF 1000 Volt 10% 45-33113 C113 Capacitor Ceramic 56PF 500 Volt 5% 45-56052 C114 Capacitor Electrolytic 10µF 50 Volt 20% 47-10051 D1 LED Red #204HD 3mm T-1.00 1" Leads 60-75320 D2 LED Red #204HD 3mm T-1.00 1" Leads 60-75320 D3 N/U D4 Diode RECT GEN 1N4003 1A 200V 61-40030 D5- 9 N/U D10 LED Red #204HD 3mm T-1.00 1" Leads 60-75320 H1 Connect Header .100" 10 Pin 23-10011 H2 N/U H3 Connect Header .100" 4 Pin 23-10004 H4 Connect Header .100" 4 Pin 23-10004 H5 Connect Header .100" 4 Pin 23-10004 H6 Connect Header .100" 4 Pin 90d 23-10014 H7-8 N/U H9 Connect Header .100" 4 Pin 23-10004 J1 Neutrik XLR Connect NL4FC FEM 21-40000 J2 Jack .250" 3 PIN 24mm Plastic 21-06453 J3 Jack RCA QUAD PC Vertical PC MTG 21-40022 J4 Jack .250" 3 PIN 24mm Plastic 21-06453 J5 Jack .250" 3 PIN 24mm Plastic 21-06453 J6 Jack .250" 3 PIN 24mm Plastic 21-06453 J7 Jack .250" 3 PIN 24mm Plastic 21-06453 J8 Jack .250" 3 PIN 24mm Plastic 21-06453 J9 Jack .250" 3 PIN 24mm Plastic 21-06453 J10 Jack .250" 3 PIN 24mm Plastic 21-06453 J11 Jack .250" 3 PIN 24mm Plastic 21-06453 J14 Jack .250" 3 PIN 24mm Plastic 21-06453 J15 Jack .250" 3 PIN 24mm Plastic 21-06453 J16-17 N/U P1 POT 12 "D-P" 35F B50K-C Noble 71-13057 P2 POT 12 "D-P" 35F B50K-C Noble 71-13057 P3 POT 12 "D-P" 35F B50K-C Noble 71-13057 P4 POT 12 "D-P" 35F B50K Noble 71-13056 P5 POT 12 "D-P" 35F B50K Noble 71-13056 P6 POT 12 "D-P" 35F B50K Noble 71-13056 P7 POT 12 "D-P" 35F B5K-C Noble 71-13055 P8 POT 14 "D-P" 35F B100KX2 JP 71-13074 P9 POT 14 "D-P" 35F B100KX2 JP 71-13074 P10 POT 14 "D-P" 35F B100KX2 JP 71-13074 P12 POT 12 "D-P" 35F B50K Noble 71-13056 P13 POT 12 "D-P" 35F B50K Noble 71-13056 P20 Fader 50K Ohm 71-10332 P21 Fader 50K Ohm 71-10332 P22 Fader 50K Ohm 71-10332 P23 Fader 50K Ohm 71-10332 P24 Fader 50K Ohm 71-10332 P25 Fader 50K Ohm 71-10332 P26 Fader 50K Ohm 71-10332 P27 Fader 50K Ohm 71-10332 P28 Fader 50K Ohm 71-10332 P30 Fader 50K Ohm 71-10332 P31 Fader 50K Ohm 71-10332 P32 Fader 50K Ohm 71-10332 P33 Fader 50K Ohm 71-10332 P34 Fader 50K Ohm 71-10332 P35 Fader 50K Ohm 71-10332 P36 Fader 50K Ohm 71-10332 P37 Fader 50K Ohm 71-10332 P38 Fader 50K Ohm 71-10332 Q1 Transistor MPSW42 NPN TO-92 60-00042 Q2 N/U Q3 N/U QC1 Term PCB Vert PC MTG .250 06-40050 QC10 N/U QC11 N/U QC12 N/U R1 Resistor 5.62K Ohm .25W 1% Metal 50-56231 CX STEREO SERIES PARTS LIST THIS UNIT CONTAINS HIGH VOLTAGE COM- PONENTS INSIDE! REFER SERVICING TO QUALIFIED SERVICE PERSONNEL! CAUTION RISK OF ELECTRIC SHOCK 2 If youre like most new owners, youre probably in a hurry to plug your CX mixer in and use it. Here are some brief instructions to get you going quickly. With the mixer unplugged and the unit turned off, complete the following procedures: 1. CONNECTING AC POWER TO YOUR MIXER - Check the rear panel to make sure the mixer received uses the proper AC Line Voltage. (USA 120VAC, Europe 240 VAC ...etc.) - Use only a grounded (3 prong) power outlet to prevent a shock hazard. This gives the quietest grounding for your mixer. 2. CONNECTING SPEAKERS (Powered Models Only) - Use the right and left 1/4 speaker jacks on the rear panel which are con- troled by the main level control on the front). The speaker cables should be non-shielded and at least 18 gauge(AWG) wire. For speaker cable runs of over 20 feet 16 gauge wire is recommended.. NOTE: Do not run your speakers through microphone wire, gui- tar cables, or multi-conductor microphone junction boxes or snakes as they are sometimes referred to. This wire is normal- ly shielded and of a very light gauge causing a substantial loss of power and oscillations at high frequencies in the amplifier. All speaker wires must be non-shielded . 3. SpeakerGuardtm and the PROTECT LED - The protect LED comes on along with the output relays in three different pro- tection modes: Shorted speaker outputs, Speaker Impedance below minimum rating, and when the amplifier exceeds maximum operating temperature. - In event the LED comes on turn off the amplifier and Identify and correct any speaker cable or speaker jack shorts and make sure the total speaker Impedance for each output is 4 ohms or greater. Also make sure the fan is not blocked and check that cool air can circulate around the rear of the mixer. 4. CONNECTING INPUTS TO YOUR MIXER - For low level balanced devices such as microphones, plug into the balanced MICinputs using a shielded microphone cable with XLR ends. - For high level unbalanced devices such as Tape Recorders and Keyboards plug into the LINEinput jacks using a shielded cable with 1/4 phone ends. 5. TURNING YOUR MIXER ON - Adjust all channel and master level controls to their off positions (fully counter clockwise). - Adjust all EQ tone controls- the channels Hi, Mid, and Bass and the two master 9 Band Graphic EQs to their center detent position. - Adjust all the Channel PAN controls to their center detent position. - Turn the mixer on by the rear panel power switch and watch for the power LED to come on. Your mixer is now ready to operate. QUICK START UP MAINTENANCE To bring back the new look, your CX mixer can be washed with mild detergent and/ or a warm damp soft cloth. This will remove normal dust and oil from the front and back panels. Never spray cleaners or detergents directly at the unit. The mixers are virtually sealed from outside dust and dirt, but it is recommend- ed to keep the mixer free from dust, dirt, and moisture as much as possible.
