Carvin ac 120 s owners manual

Page 1

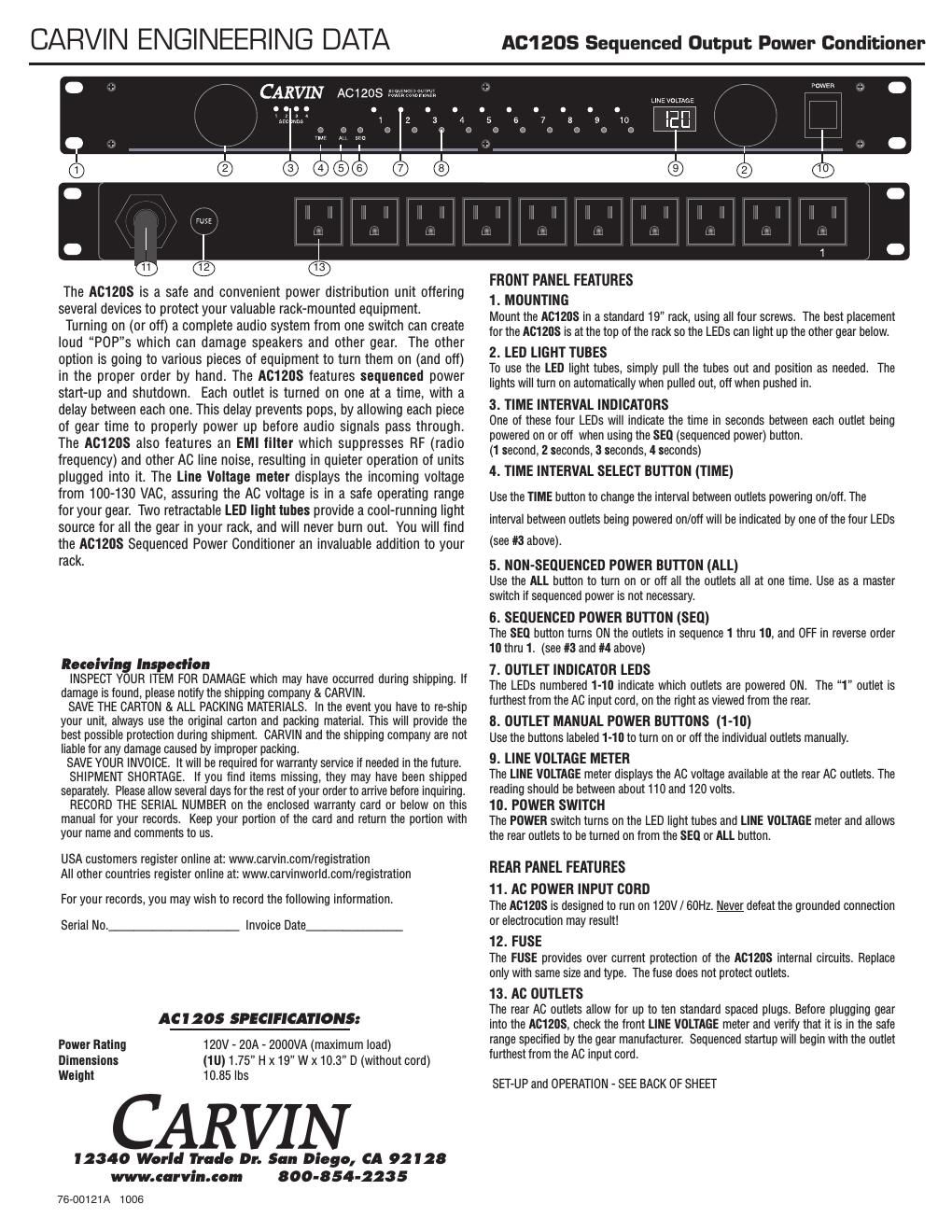

PLUGGING IN: To prevent speaker pops and other surges, it is important to have your equipment power on in the correct order. The order is fairly simple to understand, because it is the same order that audio signals pass through your system. Most importantly, turn power amps ON last, and turn them OFF first. This will prevent the power amps from amplifying pops and possibly damaging your speakers. The AC120S will turn ON the rear outlets in order from 1to 10, and will turn them OFF in reverse order from 10to 1. Plug in each unit in order of the audio signal path, beginning with the right rear outlet (the outlet labeled 1 in the image on the front page), which is furthest from the AC cord. Example: 1. Wireless mic receivers or mic preamp units. 2. The mixer. 3. Compressors/processors in the mic inserts. 4. Effect processors in the effect loops of the mixer. 5. EQs or compressor/limiters between the mixer and amps. 6. Electronic crossovers or speaker management controllers. 7. Power amps. Power amps are always powered ON LAST and OFF FIRST. *NOTE: The maximum total current available to the all ten outlets is 20 AMPS. A maximum of one high powered amplifier can be plugged into the AC120S(such a DCM1000 or larger). CHECKING YOUR SETUP: Now that you have your gear plugged into the AC120Sin the proper order, press IN the POWERswitch. The LINE VOLTAGEmeter should display a number from about 110 to 120 volts. If the voltage is too high or too low, your equipment may become damaged or not turn on. Consult your owners manuals for acceptable ranges. Turn all gear plugged into the AC120Sto their ON positions. (Once your setup is complete, you can leave the switches for this gear in the ON position, and use the AC120Sfor off/on.) If you are using any amplifiers not plugged in to the AC120S, turn them ON LAST, after the power ON sequence is finished. (These amps should also be shut OFF FIRST, before starting the power OFF sequence.) Make sure that your power amps are set to a low volume but not off, so you can hear pops if they happen but are least likely to damage gear. TEST: To test the order of your plugs, press the 1 button on the front panel. The white LED just above the 1 should light up. (see item #8 MANUAL POWERbuttons, on front page). Continue with buttons 2to 10, and notice if any pops are heard. If a loud pop is heard when pressing a certain button, you may need to change the order of your plugs. Now turn each outlet OFF, in reverse order 10to 1, listening for pops and re-arrange the order if necessary. POWERING UP: Press the SEQbutton on the front panel. The LEDs 1thru 10on the front panel will start coming on. If there are any loud pops coming out of your system at any time during the sequence, you may need to increase the TIMEsetting, or change the order of your AC plugs on the rear of the AC120S. POWER OFF: First, turn off any amps in the signal path not plugged into the AC120S. Press the SEQbutton again to begin the POWER OFF sequence. The LEDs will begin to turn off in reverse order, 10thru 1. Again, if there are any loud pops coming out of your system at any time during the sequence, you may need to increase the TIMEsetting, or change the order of your AC plugs. To shut off power during the sequence on or sequence off period, turn off the main POWERswitch on the front panel. RISK OF ELECTRIC SHOCK DO NOT OPEN IMPORTANT! FOR YOUR PROTECTION, PLEASE READ THE FOLLOWING:WATER AND MOISTURE: Do not expose this appliance to rain or moisture. Do not use this apparatus near water (in a wet basement, near a swimming pool, bathtub etc). Care should be taken so that liquids are not spilled or splashed onto the unit. Do not place objects filled with liquids such as beverage containers on this apparatus. POWER SOURCES: The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the unit. Unplug during lightning storms. GROUNDING OR POLARIZATION: Precautions should be taken so that the grounding or polarization means of an appliance is not defeated. POWER CORD: Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs and the point where they exit from the appliance. The plug or power inlet is the disconnect device and shall remain readily operable. PLACEMENT: Do not block ventilation openings. Do not install near heat sources such as radiators, stoves or other products that produce heat. Do not install in a confined area. Use only mounting hardware such as brackets and tripods recommended by the manufacturer. SERVICING: The user should not attempt to service the unit. All servicing should be referred to qualified service personnel. FUSING: If your unit is equipped with a fuse receptacle, replace only with the same type fuse. Refer to replacement text on the unit for correct fuse type. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL! THIS UNIT CONTAINS HIGH VOLTAGE INSIDE! CAUTION RISK OF ELECTRIC SHOCK This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. LIMITED WARRANTYYour Carvin product is guaranteed against failure for ONE YEAR unless otherwise stated. Carvin will service and supply all parts at no charge to the customer providing the unit is under warranty. Shipping costs are the responsibility of the customer. CARVIN DOES NOT PAY FOR PARTS OR SERVICING OTHER THAN OUR OWN. A COPY OF THE ORIGINAL INVOICE IS REQUIRED TO VERIFY YOUR WARRANTY. This warranty does not cover, and no liability is assumed, for damage due to: natural disasters, accidents, abuse, loss of parts, lack of reasonable care, incorrect use, or failure to follow instructions. This warranty is in lieu of all other warranties, expressed or implied. No representative or person is authorized to represent or assume for Carvin any liability in connection with the sale or servicing of Carvin products. CARVIN SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. When RETURNING merchandise to the factory, you must call for a return authorization number. If your unit is out of warranty, you will be charged the current FLAT RATE for parts and labor to bring your unit up to factory specifications. HELP SECTION 1) UNIT WILL NOT TURN ON Check the power to the AC cord. Check for tripped circuit breakers, unplugged extension cords or power-strip switches that may be turned off. Check the fuse or circuit breaker on the unit if available. If the fuse has been replaced with the proper value and the fuse fails again, or the internal circuit breaker activates after reset, the unit will require servicing. 2) NO OUTPUT with POWER light ON Shipping damage will be the primary reason for your product to not function properly. Please give us a call to help you determine the problem. 3) KEEP YOUR UNIT LOOKING NEW Use only a dry cloth to wipe the control and venting areas. Surfaces without openings may be cleaned with a damp cloth. CAUTION
