Carvin ac 120 owners manual

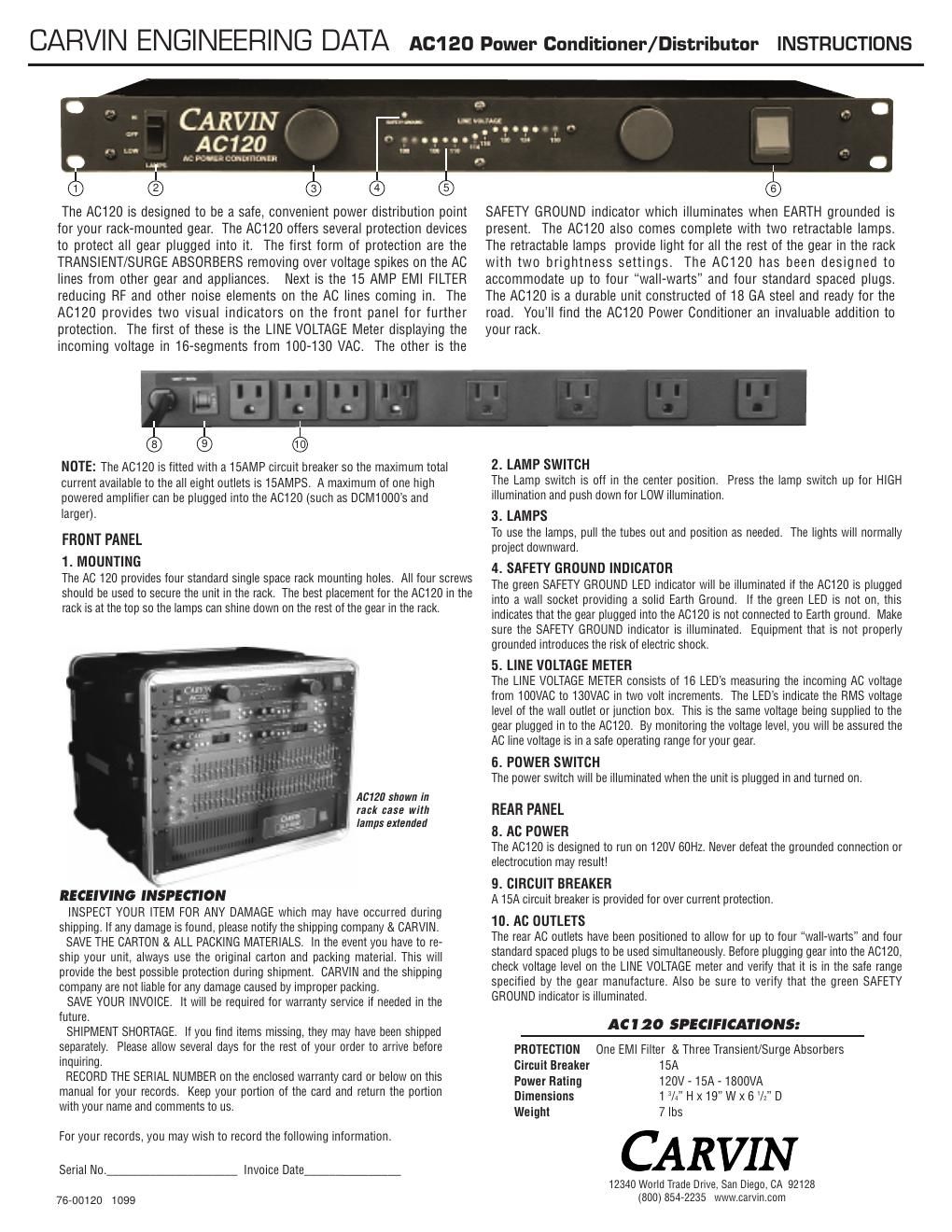

Page 1

For Lamp replacement do, the following: 1. Turn off the AC120 and let lamp tubes cool if needed. 2. Extend light tube. 3. With one hand, hold on to the tube. 4. With the other hand, hold tube cap, turn cap clockwise one click and pull cap off. 5. With finger, nudge lamp out while pushing the tube back into AC120 chassis. 6. Unscrew lamp from socket and replace bulb. 7. Reinsert lamp & socket into tube.8. Be sure to line up the lower flat sides of lamp socket with the double guides inside of lamp tubes. Lamp should seat all the way inside of tube inorder for light to shine through tube light hole. 9. Hold tube with one hand place tube cap on tube with the other hand and turn one click counter clockwise. Cap should not come off when pulling tube out. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN SAFETY INSTRUCTIONS (EUROPEAN)The conductors in the AC power cord are colored in accordance with the following code.GREEN & YELLOWÑEarth BLUEÑNeutral BROWNÑLiveU.K. MAIN PLUG WARNING: A molded main plug that has been cut off from the cord is unsafe. NEVERUNDER ANY CIRCUMSTANCES SHOULD YOU INSERT A DAMAGED OR CUT MAIN PLUG INTO A POWER SOCKET. IMPORTANT! FOR YOUR PROTECTION, PLEASE READ THE FOLLOWING: WATER AND MOISTURE: Appliance should not be used near water (near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings. POWER SOURCES: The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. GROUNDING OR POLARIZATION: Precautions should be taken so that the grounding or polarization means of an appliance is not defeated. POWER CORD PROTECTION: Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance. SERVICING: The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel. FUSING: If your unit is equipped with a fuse receptacle, replace only with the same type fuse. Refer to replacement text on the unit for correct fuse type. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL! PCB PART LISTA1 ÒOp-amp, Low Noise, SMTÓ 62-45580 A2 ÒComparitor, Quad, Single Supply, SMTÓ 62-29010 A3 ÒComparitor, Quad, Single Supply, SMTÓ 62-29010 A4 ÒComparitor, Quad, Single Supply, SMTÓ 62-29010 A5 ÒComparitor, Quad, Single Supply, SMTÓ 62-29010 C1 ÒCapacitor, Electrolytic, 22µF, 35V, SMTÓ 49-22035 C3 ÒCapacitor, Electrolytic, 22µF, 50VÓ 47-22051 C4 ÒCapacitor, Tantalum, 1µF, 35VÓ 48-01031 C5 ÒCapacitor, Ceramic,180PF, 50V, SMTÓ 49-18152 C6 ÒCapacitor, Poly, 1µF, 250VÓ 41-01122 C7 ÒCapacitor, Electrolytic, 22µF, 35V, SMTÓ 49-22035 D1 ÒLED, Small RedÓ 60-75320 D2 ÒLED, Small Red Ò 60-75320 D3 ÒLED, Small Yellow Ò 60-75340 D4 ÒLED, Small Yellow Ò 60-75340 D5 ÒLED, Small Green Ò 60-75330 D6 ÒLED, Small Green Ò 60-75330 D7 ÒLED, Small Green Ò 60-75330 D8 ÒLED, Small GreenÓ 60-75330 D9 ÒLED, Small Green Ò 60-75330 D10 ÒLED, Small GreenÓ 60-75330 D11 ÒLED, Small Green Ò 60-75330 D12 ÒLED, Small Green Ò 60-75330 D13 ÒLED, Small Yellow Ò 60-75340 D14 ÒLED, Small Yellow Ò 60-75340 D15 ÒLED, Small Red Ò 60-75320 D16 ÒLED, Small RedÓ 60-75320 D17 ÒDiode, 1A, 200V, 1N4003Ó 61-40030 D18 ÒDiode, 1A, 200V, 1N4003Ó 61-40030 D19 ÒDiode, 1A, 200V, 1N4003Ó 61-40030 D20 ÒDiode, 1A, 200V, 1N4003Ó 61-40030 D21 ÒDiode, 250mW, 1N914, SMTÓ 62-19140 D22 ÒDiode, 250mW, 1N914, SMTÓ 62-19140 D23 ÒDiode, 1A, 200V, 1N4003Ó 61-40030 D27 ÒLED, Small Green Ò 60-75330 H1 Ò4 Pin Vert, 2.5mm, PCB Ò 23-11004 H2 Ò4 Pin Vert, 2.5mm, PCBÓ 23-11004 P1 ÒPot, Trimmer, 5KÓ 71-25000 PL1 ÒRecepticle, AC, w/Fast-OnÓ 21-31100PL2 ÒRecepticle, AC, w/Fast-OnÓ 21-31100 PL3 ÒRecepticle, AC, w/Fast-OnÓ 21-31100 PL4 ÒRecepticle, AC, w/Fast-OnÓ 21-31100 PL5 ÒRecepticle, AC, w/Fast-OnÓ 21-31100 PL6 ÒRecepticle, AC, w/Fast-OnÓ 21-31100 PL7 ÒRecepticle, AC, w/Fast-OnÓ 21-31100 PL8 ÒRecepticle, AC, w/Fast-OnÓ 21-31100 Q1 ÒTransistor, MMB4403 PNPÓ 62-24403 Q2 ÒTransistor, MMB4403 PNPÓ 62-24403 QC1 ÒQuick Connect, 90¡, .250 Ò 06-40060 QC2 ÒQuick Connect, 90¡, .250 Ò 06-40060 QC3 ÒQuick Connect, 90¡, .250 Ò 06-40060 QC4 ÒQuick Connect, 90¡, .250 Ò 06-40060 QC5 ÒQuick Connect, 90¡, .250 Ò 06-40060 QC6 ÒQuick Connect, 90¡, .250 Ò 06-40060 QC7 ÒQuick Connect, 90¡, .250 Ò 06-40060 QC8 ÒQuick Connect, 90¡, .250 Ò 06-40060 QC9 ÒQuick Connect, 90¡, .250 Ò 06-40060 QC10 ÒQuick Connect, 90¡, .250 Ò 06-40060 R1 ÒResistor 1/4W, SMT, ±1%, 150½Ó 58-15025 R2 ÒResistor 1/4W, SMT, ±1%, 2.2K Ò 58-22035 R3 ÒResistor 1/4W, SMT, ±1%, 33K Ò 58-33045 R4 ÒResistor 1/4W, SMT, ±1%, 2.2K Ò 58-22035 R5 ÒResistor 1/4W, SMT, ±1%, 150½Ò 58-15025 R6 ÒResistor 1/4W, SMT, ±1%, 330½Ò 58-33025 R7 ÒResistor 1/4W, SMT, ±1%, 15KÓ 58-15045 R8 ÒResistor 1/4W, SMT, ±1%, 15KÓ 58-15045 R9 ÒResistor 1/4W, SMT, ±1%, 10K Ò 58-10045 R10 ÒResistor 1/4W, SMT, ±1%, 15K Ò 58-15045 R11 ÒResistor 1/4W, SMT, ±1%, 15KÓ 58-15045 R12 ÒResistor 1/4W, SMT, ±1%, 10KÓ 58-10045 R13 ÒResistor 1/4W, SMT, ±1%,15K Ò 58-15045 R14 ÒResistor 1/4W, SMT, ±1%, 10K Ò 58-10045 R15 ÒResistor 1/4W, SMT, ±1%, 15K Ò 58-15045 R16 ÒResistor 1/4W, SMT, ±1%, 10KÓ 58-10045 R17 ÒResistor 1/4W, SMT, ±1%, 15K Ò 58-15045 R18 ÒResistor 1/4W, SMT, ±1%, 15KÓ 58-15045 R19 ÒResistor 1/4W, SMT, ±1%, 10K Ò 58-10045 R20 ÒResistor 1/4W, SMT, ±1%,15K Ò 58-15045 R21 ÒResistor 1/4W, SMT, ±1%, 10KÓ 58-10045R22 ÒResistor 1/4W, SMT, ±1%, 10KÓ 58-10045 R23 ÒResistor 1/4W, SMT, ±1%, 100KÓ 58-10055 R29 ÒResistor 1/4W, SMT, ±1%, 68KÓ 58-68045 R30 ÒResistor 1/4W, SMT, ±1%, 4.7K Ò 58-47035 R31 ÒResistor 1/4W, SMT, ±1%, 15K Ò 58-15045 R32 ÒResistor 1/4W, SMT, ±1%, 1.0M Ò 58-10065 R33 ÒResistor 1W, SMT, ±1%, 510½Ò 53-51029 R34 ÒResistor 1/4W, SMT, ±1%, 1K Ò 58-10035 R35 ÒResistor 1/4W, SMT, ±1%, 22KÓ 58-22045 R36 ÒResistor 1/4W, SMT, ±1%, 10K Ò 58-10045 R37 ÒResistor 1/4W, SMT, ±1%, 22K Ò 58-22045 R38 ÒResistor 1/4W, SMT, ±1%, 6.8K Ò 58-68035 R39 ÒResistor 1/4W, SMT, ±1%, 6.8K Ò 58-68035 R40 ÒResistor 1/4W, SMT, ±1%, 6.8KÓ 58-68035 R41 ÒResistor 1/4W, SMT, ±1%, 6.8K Ò 58-68035 R42 ÒResistor 1W, SMT, ±1%, 510½Ò 53-51029 R43 ÒResistor 1W, SMT, ±1%, 510½Ò 53-51029 Z1 ÒZener Diode, 16V ±5%, 1N4745AÓ 61-47450 Z2 ÒZener Diode, 13V ±5%, 1N4743AÓ 60-47430 Z3 ÒZener Diode, 13V ±5%, 1N4743AÓ 60-47430 Z4 ÒZener Diode, 16V ±5%, 1N4745AÓ 61-47450 Z5 ÒTransient Absorber, 130VacÓ 60-20065 Z6 ÒTransient Absorber, 130VacÓ 60-20065 Z7 ÒTransient Absorber, 130VacÓ 60-20065 REPLACEMENT PARTS LIST This symbol is intended to alert the user to the presence of uninsulated Òdangerous voltageÓ within the productÕs enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. LIMITED WARRANTYYour Carvin product is guaranteed against failure for 1 YEAR unless otherwise stated. Carvin will service and supply all parts at no charge to the customer providing the unit is under warranty. Shipping costs are the responsibility of the customer. CARVIN DOES NOT PAY FOR PARTS OR SERVICING OTHER THAN OUR OWN. A COPY OF THE ORIGINAL INVOICE IS REQUIRED TO VERIFY YOUR WARRANTY. Carvin assumes no responsibility for horn drivers or speakers damaged by this unit. This warranty does not cover, and no liability is assumed, for damage due to: natural disasters, accidents, abuse, loss of parts, lack of reasonable care, incorrect use, or failure to follow instructions. This warranty is in lieu of all other warranties, expressed or implied. No representative or person is authorized to represent or assume for Carvin any liability in connection with the sale or servicing of Carvin products. CARVIN SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. When RETURNING merchandise to the factory, you may call for a return authorization number. Describe in writing each problem. If your unit is out of warranty, you will be charged the current FLAT RATE for parts and labor to bring your unit up to factory specifications. MAINTAINING YOUR EQUIPMENTAvoid spilling liquids or allowing any other foreign matter inside the unit. The panel of your unit can be wiped from time to time with a dry or slightly damp cloth in order to remove dust and bring back the new look. As with all pro gear, avoid prolonged use in caustic environments (salt air). When used in such an environment, be sure the mixer is adequately protected by a cover. LAMP replacement REPLACEMENT LAMP 6 watt 120V candelabra Carvin part # 70-96120 5 2 3 4 6 1 2 9 7 8 ÒAC120 Chassis, Cables, & HardwareÓ REF DESCRIPTION PART # QTY 1 15A Circuit Breaker 70-28115 1 2 Circuit Board Assembly 80-10034 1 3 Unichassis 10-10039 1 4 Switch, Lamps 25-20911 1 5 Lamp Tube w/ Cap 03-10000 2 6 Lamp Tube Clamp 03-02033 2 7 Front Panel 10-10031 1 8 EMI Filter 15-15250 1 9 Switch, Power 25-31353 1 10 Strain Relief 03-01217 1 11 Power Cord, AC, 16AWG 05-01604 1 12 Cover, Chassis 10-10035 1 13 Lamp (120V) with wires 03-77710 2 14 Wire, 16AWG, Blue 05-36640 1 15 Wire, 16AWG, Black, 203mm 05-46020 1 16 Wire, 16AWG w/ , Black 05-46040 1 17 Wire, 16AWG w/ , Brown 05-46128 1 18 Wire, 16AWG , Red05-46220 2 19 Wire, 16AWG , Blue 05-46620 2 20 Wire, 16AWG,, Grn/Yellow, 5 05-96545 1 21 Cable, Ribbon, 24AWG, 4Pin 05-64420 1 22 Terminal, .25 06-40070 2 23 Terminal, 2 Male/1 Female, .25 06-40080 1 CAUTION Light tubes may be hot
