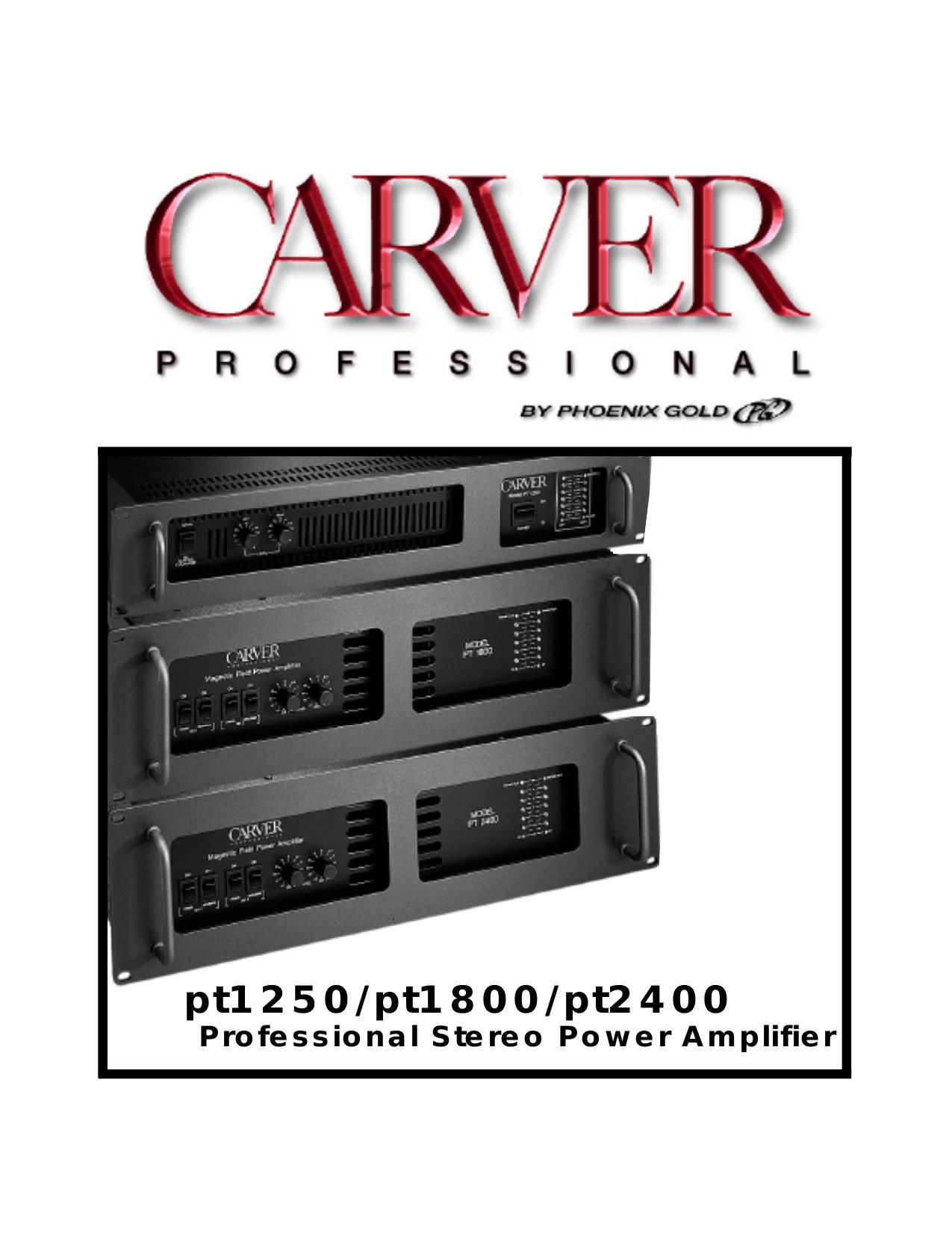

Page 1
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.Introduction..........................................................1 Unpacking and Paperwork...................................1 Features and Specifications pt1250...............................................................2 pt1800...............................................................4 pt2400...............................................................6 Controls and Functions pt1250...............................................................8 pt1800/2400....................................................10 Installation pt1250 Location and General Precautions........................................12 Mechanical Considerations............................12 Rear Support for Road Applications..........................................12 Thermal Considerations..................................12 AC Power Considerations..............................12 Magnetic Leakage Considerations................................................12 Input Wiring....................................................12 Output Wiring.................................................13 Polarity............................................................13 70VDistribution Systems..............................14 Clipping Eliminator........................................14Installation pt1800/pt2400 Location and General Precautions........................................14 Mechanical Considerations............................14 Rear Support for Road Applications..........................................14 Thermal Considerations..................................14 AC Power Considerations..............................15 Magnetic Leakage Considerations................................................15 Input Wiring....................................................15 Output Wiring.................................................15 Polarity............................................................16 Dual Mono......................................................16 Bridged Mono.................................................16 70VDistribution Systems..............................17 Clipping Eliminator........................................17 Power ON Sequencing...................................17 Remote Power Control...................................18 Operating Tips Using the pt1250/1800/2400..........................19 In Case of Difficulty...........................................19 Care and Service Assistance...............................20 Warranty Information.........................................21 Safety Information Table Of Contents
Page 2
Introduction Congratulations on your purchase of a new Carver Professional Power Ampl\ ifier. It is backed by state-of-the-art engineering and manufacturing techniques to bring you t\ he best in quality craftsmanship and reliable performance. The pt1250, pt1800 and, pt2400 a\ re specially designed forpro touring applications. Their rugged construction and low profile make\ it ideal for sustaining the abuses of the road with reliability and space-saving economy. The pt1250 is rated at 625 watts perchannel into 4 ohms and 465 watts per channel into 8 ohms. The pt1800 is\ rated at 900 watts per channel into 4 ohms and 600 watts per channel into 8 ohms. The pt2400 is rated a\ t 1200 watts per channel into 4 ohms and 750 watts per channel into 8 ohms. The sophisticated protection\ circuits designed into this amplifier will protect your system should an unexpected fault occur. They also protect the amplifier from excessive temperature, continuous current limiting and shorted outputs. \ The balanced input uses a high quality, high common-mode rejection differential amplifier for exception\ al hum and noise rejection. The sequencing feature on the pt1800 and pt2400 allows a rack of amplifiers \ to be powered up from a remote location. The daisy-chain connection scheme causes each amplifier to tur\ n on in sequence, preventing the large in-rush current that can occur when an entire rack of amplifiers i\ s turned on simultaneously. This power amplifier was designed and manufactured by people with a lifetime commit\ ment to providing the worlds finest components for music and sound reproduction. Thanks for placing y\ our confidence in Carver Professional. We know your amplifier will provide many years of dependable service and \ reliable sound reproduction. Unpacking and Paperwork Carefully unpack the amplifier and keep the original carton and packing \ materials for future moving, shipment or long-term storage. After opening the box, please check for any visibl\ e signs of damage that were not apparent from the outside of the box. If you do encounter what appears t\ o be concealed damage, please consult your Carver Professional Dealer before installing the unit. Important Paperwork Make sure to save your sales receipt. Your receipt is extremely important to establish the duration of your Limited W arranty, and for insurance purposes. Next, make a note of the serial num\ ber which is located on the back of the amplifier. Record it in the space provided below for con\ venient reference. Model:________ pt1250 ________ pt1 00 ________ pt2400 Serial Number:___________________ Purchased at:_____________________ Date:___________________________ F i n a l l y , take a moment to fill out and return the Warranty Registration Card pa\ cked with the amplifier and return it to Carver Professional. This will allow us to keep you informed about\ new products as they become available. 1
