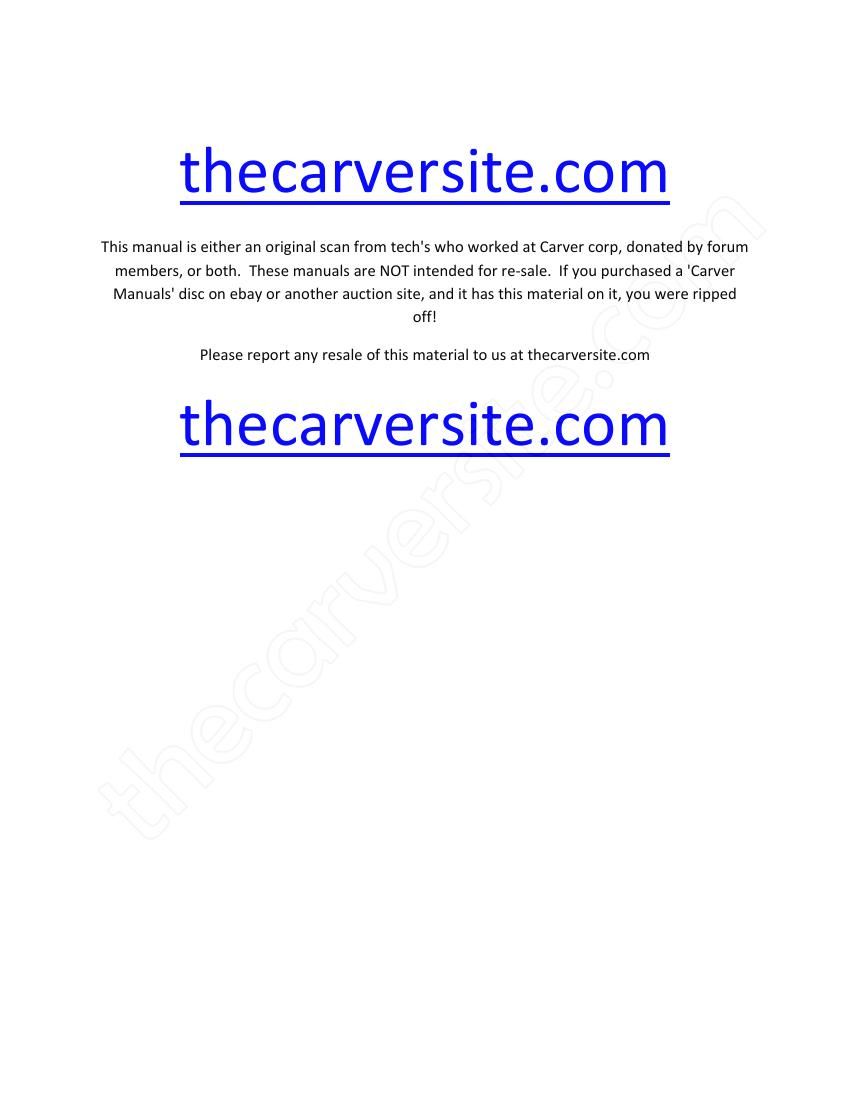

Page 1
theca rversite.com
This manual is either an original scan from tech's who worked at Carver corp, donated by forum
members, or both. These manuals are NOT intended for re-sale. If you purchased a Carver
Manuals disc on ebay or another auction site, and it has this material on it, you were ripped
off!
Please report any resale of this material to us at thecarversite.com
theca rversite.com
Page 22
MISCELLANEOUS
D20, R31, and CB filter supply noise from the +55 volt supply to
reduce noise in the predrivers.
The output pole of Cu and R53 operates as an ultra-sonic output
filter and phase compensator.
Overall negative feedback is provided to the negative port of
the input buffer via Rl8' The amount of feedback is'determined by
R18 R65, C21 and R64 In the right channel the feedback is determined
by R98' 153 csx R152' and R147'
The front panel of the M-200t has a power on/off switch, a power
indicator LED and a fault LED which indicates when the supply 1
into protection.
The amplifier may be operated in stereo or bridged for mono operation,
with no special adaptor. Minimum recommended impedance of 4 ohms nominal
for stereo and 8 ohms nominal for bridged mode. I
The amplifier is protected with an eight amp AGC fuse and 70°C
thermal breaker both in series with the line. _
