Carver CV 2501 Owners Manual
This is the 27 pages manual for Carver CV 2501 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Carver CV 2501 Owners Manual (Ocr-read)

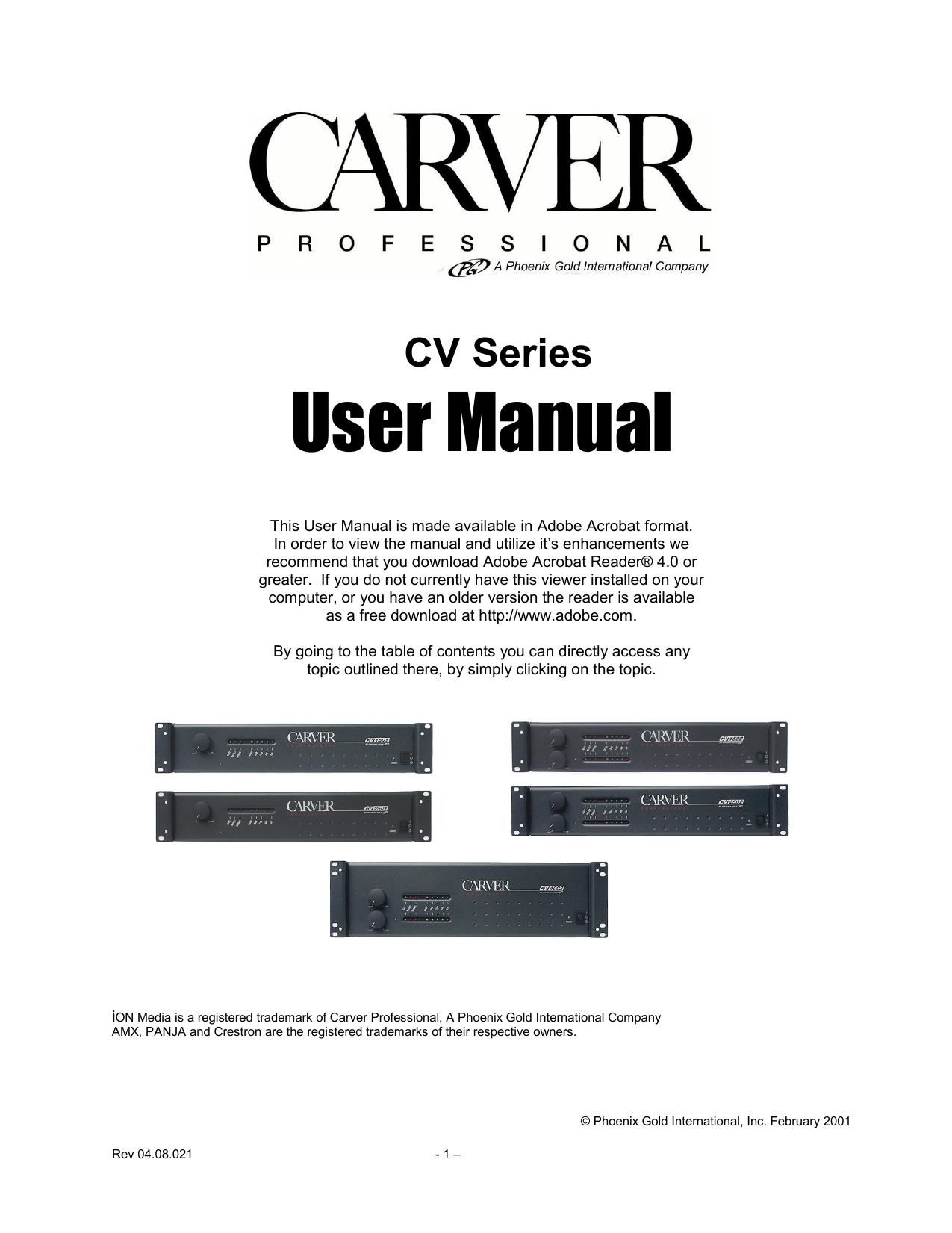

Page 1
Rev 04.08.021 - 2 – CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL ! The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN SAFETY INFORMATION Please read this entire manual , especially the Safety Warnings, before operating your amplifier. TABLE OF CONTENTS Introduction 3 Unpacking and Paperwork 3 Features and Specifications CV1501 4-5 CV2501 4-5 CV1502 6-7 CV2502 6-7 CV4002 8-9 Controls and Functions 10-14 Rack Mounts 10 Level Controls 10 LED Status Display 10 LED Level Display 10 Power Switch 11 Standby LED 11 Data LED 11 Output Connector 12 Sequence Connector 12-13 Remote Level Control 13 Standard Input Module 13 AC Line Cord 13 Configuration DIP Switch 14 Effects Loop 14 Installation and Operation Location and General Precaution 14 Mechanical Considerations 14 Rear Support 14 Thermal Considerations 15 AC Power Considerations 15 Magnetic Leakage 15 Input W iring 15-16 Input Sensitivity 16 Loudspeaker Polarity 16 Mono Operation 16-17 Bridged Mono Connections 17 Power Sequencing 18-20 Remote Level Control 20-22 Effects Loop 22 CV Series Block Diagram 22 Warranty Information 23 In Case Of Difficulty 24-25 Appendix A 26 Appendix B 27
Page 2
Rev 04.08.021 - 3 – INTRODUCTION Congratulations on your purchase of a new Carver Professional CV Series Power Amplifier. The CV Series amplifiers are designed expressly for commercial and institutional audio applications. The CV Series amplifiers are designed and manufactured by Carver Professional, a division of Phoenix Gold International, Inc. They combine Carver Professionals experience in pro audio along with the needs of the system integrator to provide an uncompromising product for the commercial sound industry. The sonic heritage of Carver Professional combined with the performance, manufacturing quality and attention to detail that has defined Phoenix Gold International assures you of the value and integrity you seek in an amplifier product. Thank you for placing your confidence in Carver Professional and Phoenix Gold. We know your amplifier will provide many years of dependable service and reliable sound reproduction. Please read this entire manual , especially the Safety Warnings, before operating your amplifier. U NPACKING A ND P APERWORK Carefully unpack the amplifier and keep the original carton and packing materials for future moving, shipment or long-term storage. After opening the box, please check for visible signs of damage that were not apparent from the outside of the box. If you encounter what appears to be concealed damage, please contact your Carver Professional Dealer before installing unit. Important Paperwork Make sure to save your sales receipt. Your receipt is extremely important to establish the duration of your Limited Warranty and for insurance purposes. Next, make a note of the serial number, which is located on the back of the amplifier. Record it in the space provided below for convenient reference. Model: _______________ Serial Number: __________________________ Purchased at: __________________________ Date: _________________ Finally, take a moment to fill out the Warranty Registration Card packed with the amplifier and return it to Carver Professional. This will allow us to keep you informed about new products, as they become available .
