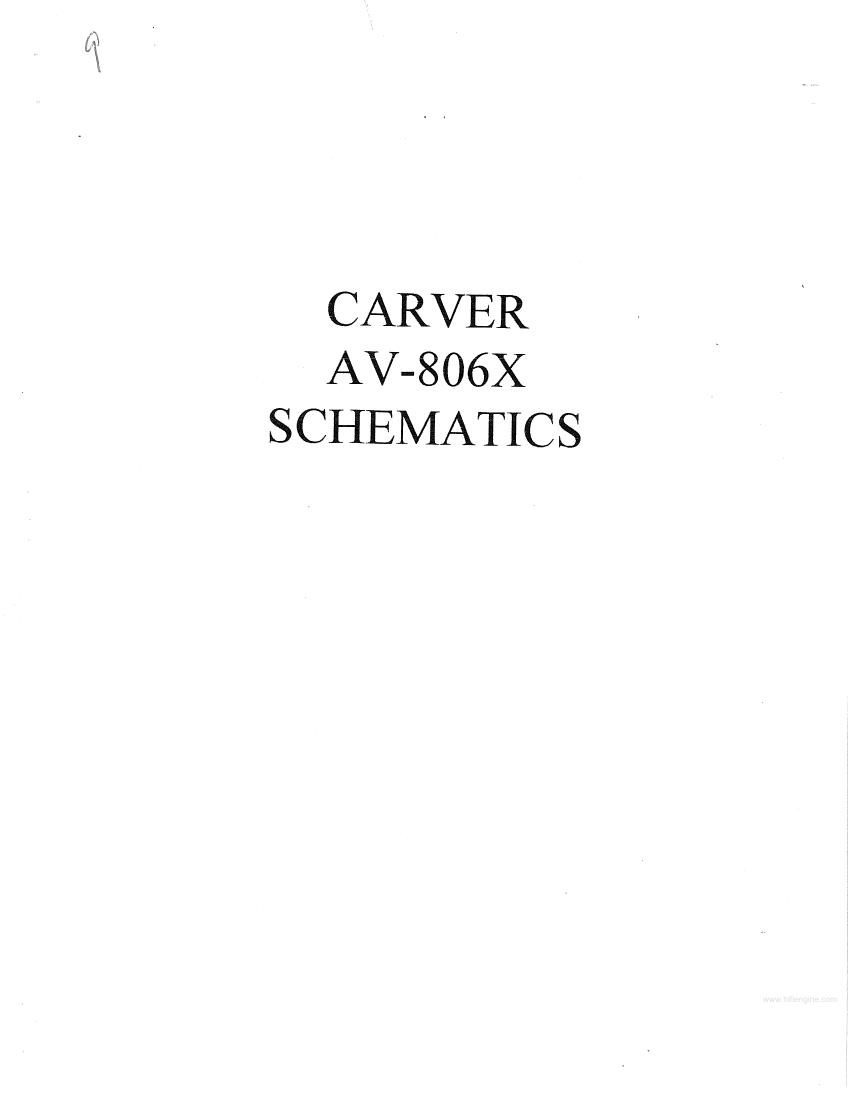

Carver AV806X pwr sch

Page 2

105-30007~01
,105-40014-00
105-4001 8-01
105-50000-00
112-20001-00
1 15-60000-00
118~61030-40
118-90007-00
151-10131-02
151-10131-02
151-20001-00
151 -20051 ~00
151-20154-00
151-30051-00
151-30102-00
151-30106-00
151-30107-01
151-40260-01
152-10004-00
154-10102-01
154-10251-00
159-50001 ~01
159-50002-00
160-20014-00
160-30038-01
160-30038-01
160-30038-01
160-30065-02
160-30065-02
201 ~00035-00
260-50302-04A
266-50107-04A
266-50107-04D
315-13002-00
31 5-1 6001 ~00
318-10030~01
320-40005-01
401 -30019-O1
401-90023-01
402-10007-00
402-10015-01
403-4001 1 ~00
501 -00604-01
501-00608-01
502-20108-01
503-20120~01
504-20117-01
507~20091 ~01
507-201 14-01
508-20039-01
509-20005-02
510-20015-01

AV-806

FOOT, 1.96 DIAX .64 HIGH A 5
FUSEHOLDER PANEL MNT 120-230V A 10

CLIP, FUSE, PCB, 2AG A 5
FUSE CARRIER 120V A 15
MOUNT TYRAP WHT A 17

CONNECTOR,QD TAB .250 PCB A 10
SPACER, LED T1 & T1 -3/4, .550H A 5
STRN RE MCT.063 SJT 16/3&18/3 A 20
SCREW SM 3X1 OMM COPPER B 25
SCREW SM 3X1 OMM COPPER B 62
SCRW, MACH PP 4-40X1/4 BLK WAX A 30
SCRW, MACH PP 6-32X1/4 BLK WAX A 35
SCRW MACH PP 10-32X5/8" BLK WX B 40
SCREW SHT MTL PP BLK 6X1/4 "B" A 45
SCREW SHT MTL PP BLK 8X3/8 "A" A 50
SCREW SHT MTL PP BLK 8X3/4 "A" A 55
SCRW, SM PP SERR BLK 6X1/4 "B" A 60
SCRW METRIC MACH PP 3X6 B 65
NUT, LOCK, 10-32, ZINC A 70
WSHR, .125X.505X.75, BLK, NYL B 73
WASHER FLAT SAE BLK .25X.625 A 71
TYRAP 3 3/8"L BLACK A 72

TYRAP 4"L WHT A 74
CONNECTOR, SPLICE NYLON INSUL A 75
HEADER, 3~PIN .10 LOCK ST POST A 7
HEADER, 3-PIN .10 LOCK ST POST A 5
HEADER, 3-PIN .10 LOCK ST POST A 5
HEADER 2.0MM (.079) 2 PIN B 10
HEADER 2.0MM (.079) 2 PIN B 10
CAP, CER .01UF 250VAC UL/CSA B 80

RES, CF 5% 3K1/4W A 10
RES,FUSIBLE 5% 1 OHM 1/4W 0
RES FUSIBLE 5% 1 OHM 1/4W .5 C 15
FUSE, 12 AMP 250V A 85
FUSE, 6.3A TIME LAG B 20
SWITCH, POWER 15A, 125V B 90
LED, RED/GREEN 3MM A 15

JUMPER, INSULATED, 18 AWG, .6 A 30
LC, RND 16/2 PLZD-CSA/UL APRD B 100
TUBING HTSHRK DUAL WALL 1/2" A 105
SLEEVING UNCOAT FBRGLS ID .263 A 107
TAPE, ADHESIVE TRANSFER 1/2" 108
PCB, POWER DISTRIBUTION C 1

PCB, POWER INDICATOR A 1
CHASSIS - AVX~806 D 110

PANEL, FRONT AV-806X MACHINING A 115
COVER B 120

RAIL B 130

BRACKET, HANDLE 3U B 125
KNOB, POWER SWITCH A 135

FERRULE 5/16" PLASTIC CHARCOAL C 140
HANDLE 3.50X5/16 DIA10-32 BLKA 145
