Cambridgeaudio TT 50 Owners Manual
This is the 12 pages manual for cambridgeaudio TT 50 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from cambridgeaudio TT 50 Owners Manual (Ocr-read)

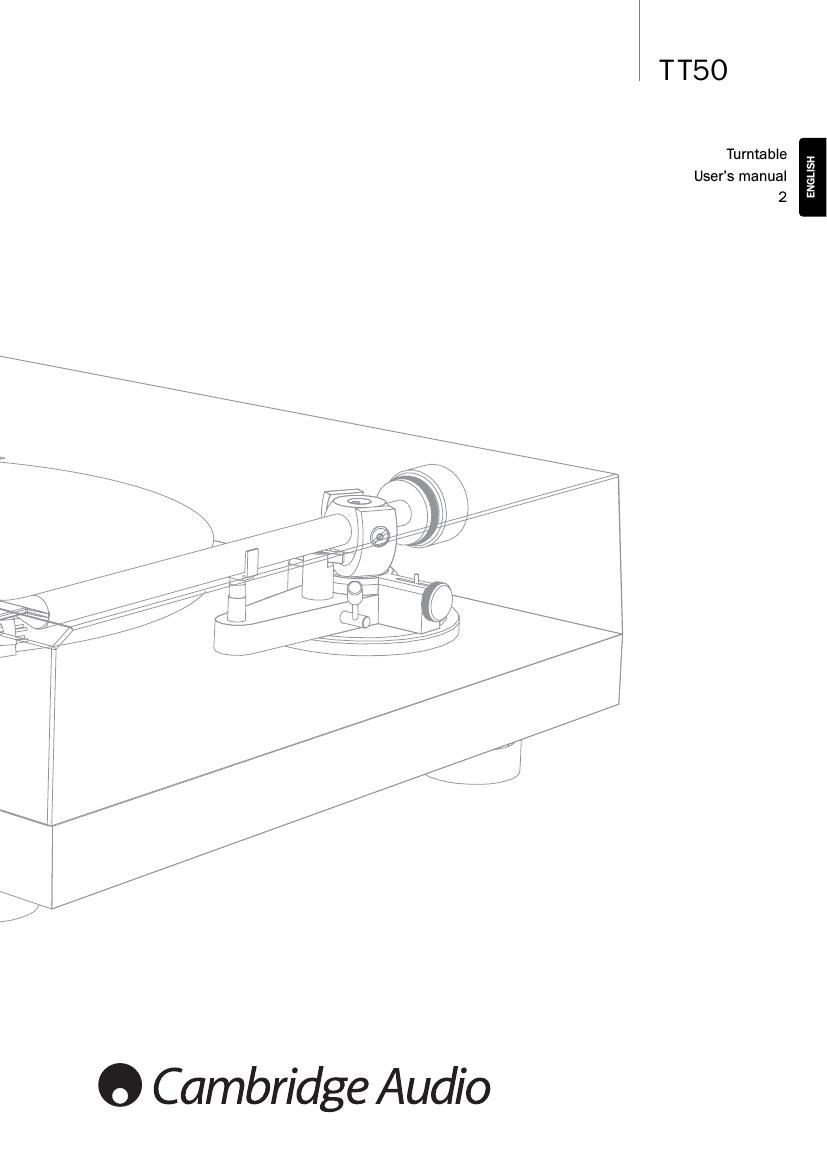

Page 1
Thank you for purchasing this Cambridge Audio TT50 turntable. We hope that you will enjoy many years of listening pleasure from it. The TT50 has been jointly developed between Cambridge Audio and Pro-Ject and features several parts unique to this model such as a proprietary arm with non contact magnetic anti-skate. Other features include a Cambridge Audio made acrylic platter, coated with a layer of elastomer paint for careful control of resonance and matched acoustic impedance to the vinyl record for maximum detail retrieval. The isolation type feet also control resonance and provide a measure of feedback resistance to vibration. The TT50 turntable is supplied with an Audio Technica AT95E Moving Magnet cartridge fully aligned and setup at the factory. The TT50 should always be mounted on a good quality level support, preferably one designed for use with turntables. Your turntable can only be as good as the system it is connected to. Please do not compromise on your supports, amplification, speakers or cabling. Naturally we particularly recommend models from the Cambridge Audio Azur range which have been designed to the same exacting standards as this turntable. In particular pay attention to the quality of your phono stage. The Cambridge Audio Azur 540P or 640P models for instance are an excellent match for the TT50. Your dealer can also supply excellent quality Cambridge Audio interconnects to ensure your system realises its full potential. Thank you for taking the time to read this manual; we do recommend you keep it for future reference. Matthew Bramble, Cambridge Audio Technical Director and the Turntable design team. Introduction 2 Contents Introduction .................................................................................................2 Limited warranty..........................................................................................3 Safety precautions ......................................................................................3 Important safety instructions ....................................................................4 Assembly/setup ..........................................................................................5 Cartridge downforce adjustment ............................................................6 Anti-skating (bias)adjustment .................................................................6 TT50 features ..............................................................................................7 Top view ....................................................................................................7 Rear view ..................................................................................................7 Operating instructions ................................................................................8 Playing records .........................................................................................8 Changing replay speed ............................................................................8 Maintenance and cleaning .........................................................................8 Cartridge replacement/adjustment ...........................................................8 Cartridge fitting ........................................................................................8 Cartridge alignment .................................................................................9 Adjusting the azimuth ...........................................................................10 Technical specifications ...........................................................................11 Troubleshooting.........................................................................................11 Cartridge alignment protractor ................................................................11 Visit www.cambridge-audio.com and register to receive notification of future hardware and software releases. This guide is designed to make installing and using this product as easy as possible. Information in this document has been carefully checked for accuracy at the time of printing; however, Cambridge Audio's policy is one of continuous improvement, therefore design and specifications are subject to change without prior notice. If you notice any errors please feel free to email us at: support@cambridgeaudio.com This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. All trademarks and registered trademarks are the property of their respective owners. © Copyright Cambridge Audio Ltd 2007
Page 2
3 ENGLISH T T50 Cambridge Audio warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below). Cambridge Audio will repair or replace (at Cambridge Audio's option) this product or any defective parts in this product. Warranty periods may vary from country to country. If in doubt consult your dealer and ensure that you retain proof of purchase. To obtain warranty service, please contact the Cambridge Audio authorised dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your Cambridge Audio product, it can be returned by your dealer to Cambridge Audio or an authorised Cambridge Audio service agent. You will need to ship this product in either its original packaging or packaging affording an equal degree of protection. Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that this product is within the warranty period, must be presented to obtain warranty service. This Warranty is invalid if (a) the factory-applied serial number has been altered or removed from this product or (b) this product was not purchased from a Cambridge Audio authorised dealer. You may call Cambridge Audio or your local country Cambridge Audio distributor to confirm that you have an unaltered serial number and/or you purchased from a Cambridge Audio authorised dealer. This Warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of, or to any part of, the product. This Warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than Cambridge Audio or a Cambridge Audio dealer, or authorised service agent which is authorised to do Cambridge Audio warranty work. Any unauthorised repairs will void this Warranty. This Warranty does not cover products sold AS IS or WITH ALL FAULTS. REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER. CAMBRIDGE AUDIO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY IN THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER INCLUDING, BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE. Some countries and US states do not allow the exclusion or limitation of incidental or consequential damages or implied warranties so the above exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other statutory rights, which vary from state to state or country to country. Checking the Power Supply Rating For your own safety please read the following instructions carefully before attempting to connect this unit to the mains. Check that the power supply unit indicates the correct supply voltage. If your mains supply voltage is different, consult your dealer. This unit is designed to operate only on the supply voltage and type that is indicated on the power supply unit. Connecting to other power sources may damage the unit. This equipment must be switched off when not in use. To reduce the risk of electric shock, do not disassemble any part of the unit. There are no user serviceable parts inside. Refer servicing to qualified service personnel. The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-insulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the service literature relevant to this appliance. The crossed-out wheeled bin is the European Union symbol for indicating separate collection for electrical and electronic equipment. This product contains electrical and electronic equipment which should be reused, recycled or recovered and should not be disposed of with unsorted regular waste. Please return the unit or contact the authorised dealer from whom you purchased this product for more information. Approvals This product complies with European Low Voltage (73/23/EEC) and Electromagnetic Compatibility (89/336/EEC) Directives when used and installed according to this instruction manual. For continued compliance only Cambridge Audio accessories should be used with this product and servicing must be referred to qualified service personnel. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Re-orient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Safety precautions Limited warranty
