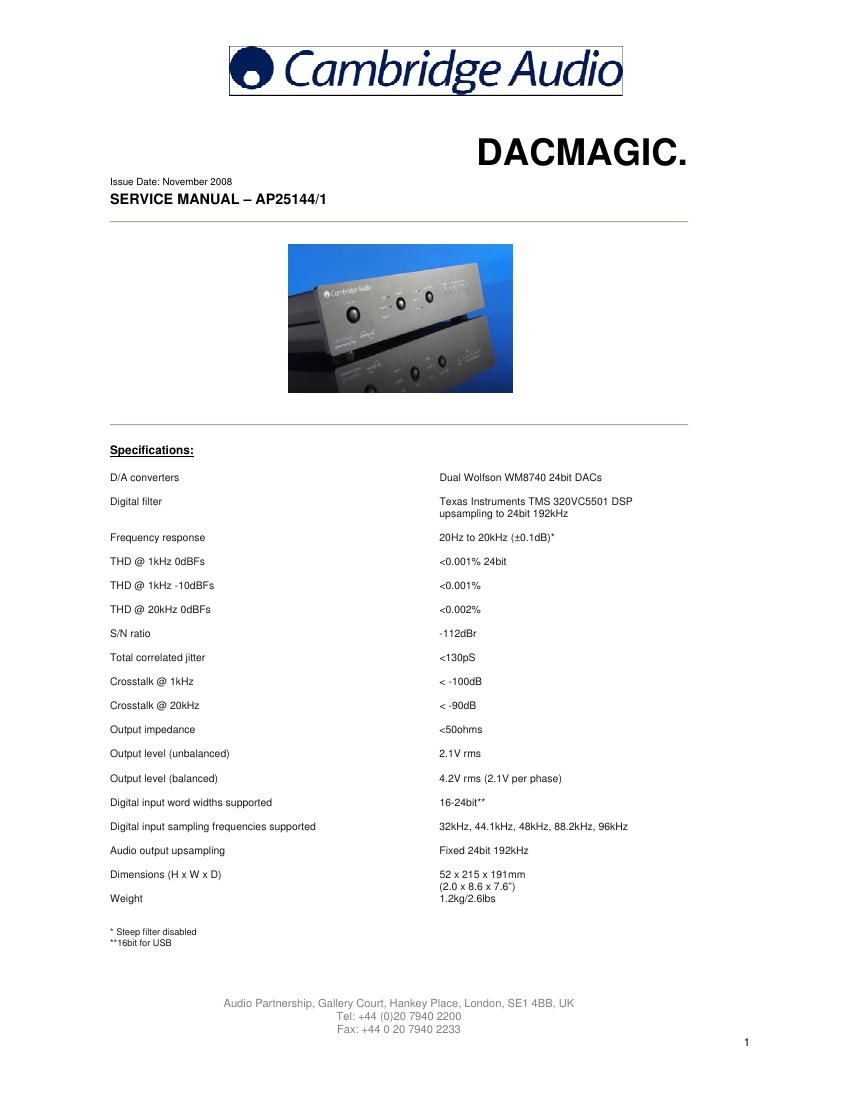

Page: 1 / 15
Extracted text from cambridgeaudio Dacmagic dac sm (Ocr-read)
Page 2
CAMBRIDGE AUDIO AZUR DACMAGIC SERVICE MANUAL
TABLE OF CONTENTS
Specifications
Table of Contents
Front Panel Details
Rear Panel Connections
Safety Instructions
Exploded Diagram
Bill of Materials
Main PCB - SPDIF I/O, ABUS, R5232
11
Main PCB - DSP, DIR, DIT
12
Main PCB - DAC
l3
Main PCB - DAC (Power Supply)
14
Front Panel (Control) LED and Mute
15
