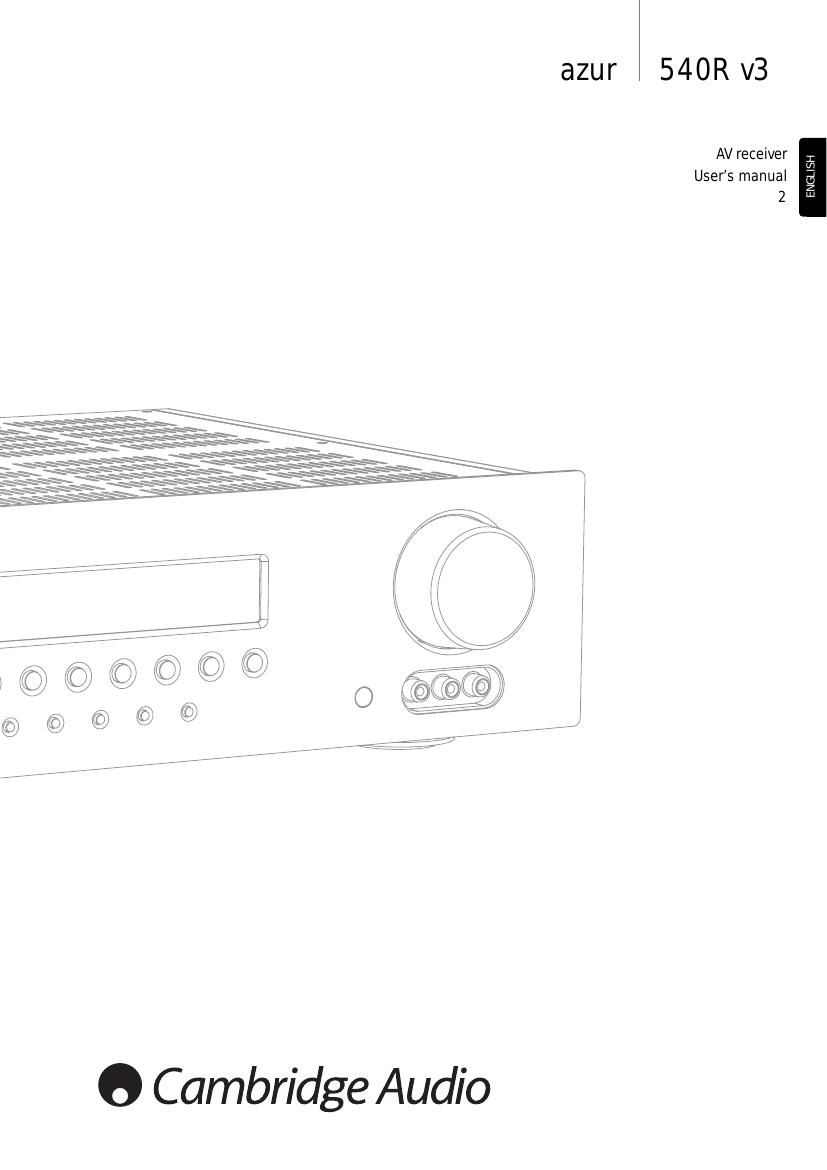

Page 1
Thank you for purchasing this Cambridge Audio Azur range AV Receiver. We hope that you e njoy many years of pleasure from it. The new 540R v3 is designed for excellent multi-channel surround- sound performance without compromising on music reproduction. As such the six fully discrete audiophile grade amplifiers are kept as separate as possible from the processing and input stages. A large power supply with low flux toroidal transformer and careful design of the audio stages ensure that the 540R v3 can reproduce the dynamics and scale required for modern movie soundtracks whilst also being able to reproduce a genuinely musical performance with either stereo or multi- channel music sources. For the new v3 model we have made several enhancements. We have added 2 in 1 out HDMI switching, tweaked the amplifier designs for lower distortion, added a Stereo + Sub mode (digitally created sub) and post-processing modes with PLII to allow creation of a 6.1 output from 2.0/5.1 DD or DTS material. All video inputs are now fully freely assignable to any source, making the unit very flexible despite its relatively small size and socket count. A new Advanced Bass Management feature allows separate crossovers and trims for PLII/Neo, DD/DTS and Stereo + Sub modes, plus a Bass Augment function allows the front speakers to remain Large whilst also sending front left and right bass to the subwoofer. A full RS232 control protocol has been implemented and IR Emitter In added making it easy to integrate the 540R v3 into a Custom Install situation. As usual all this proprietary engineering is housed within our acoustically damped chassis with an Azur navigator remote control supplied Your 540R v3 can only be as good as the system it is connected to. Please do not compromise on your partnering equipment. Naturally we particularly recommend equipment from the Cambridge Audio Azur range which includes CD and DVD players which have been designed to the same exacting standards as this product. Your dealer can also supply excellent quality Cambridge Audio interconnects to ensure your system realises its full potential. Thank you for taking the time to read this manual, we do recommend you keep it for future reference. Matthew Bramble, Cambridge Audio Technical Director and the AV Receiver design team Introduction 2 Contents Introduction .................................................................................................2 Before connecting .......................................................................................2 Limited warranty..........................................................................................3 Safety precautions ......................................................................................3 Important safety instructions .....................................................................4 Rear panel connections..............................................................................5 Front panel controls ....................................................................................6 Remote control ............................................................................................7 Front panel display ......................................................................................8 Loudspeaker connections ..........................................................................8 Analog audio connections ..........................................................................9 Digital audio connections ..........................................................................9 Aerial connections.......................................................................................9 Front Input connections..............................................................................9 Video connections ....................................................................................10 HDMI connections ....................................................................................10 5.1/6.1 Direct In.. .....................................................................................11 6.1 Preamp Out.........................................................................................11 540R v3 setup.................................................................................... ......12 1. Speaker configuration ....................................................................12 2. Speaker delay .................................................................................13 3. Level calibration ..............................................................................14 4. Source setup ...................................................................................14 5. Assigning video sources .................................................................15 Surround sound modes ............................................................................16 Operating instructions.........................................................................17-20 Decode modes - 5.1 speaker setup...................................................18 Decode modes - 6.1 speaker setup...................................................19 Audio split mode .......................................................................................21 Bass/Treble configuration ........................................................................21 Subwoofer setup .......................................................................................21 Advanced bass management ..................................................................21 OSD setup .................................................................................................22 Custom installation use ...........................................................................22 Reset/Back-up memory ...........................................................................22 Troubleshooting.........................................................................................23 Technical specifications ..........................................................................23 The process of setting up the 540R v3 is first to make all the connections to your speakers and source equipment and then set the unit up via its On-Screen Display (OSD), as there are various settings and adjustments that need to be made before the 540R v3 can be used. However before you actually decide which connections to make or perform any adjustments it is strongly advised that you read through the 540R v3 setup section of this manual first, starting on page 12. A lot of explanation is included that will help you to choose the right connection types for both your sources and TV. Before connecting Visit www.cambridge-audio.com and register to receive notification of future hardware and software releases. This guide is designed to make installing and using this product as easy as possible. Information in this document has been carefully checked for accuracy at the time of printing; however, Cambridge Audio's policy is one of continuous improvement, therefore design and specifications are subject to change without prior notice. If you notice any errors please feel free to email us at: support@cambridgeaudio.com This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. All trademarks and registered trademarks are the property of their respective owners. © Copyright Cambridge Audio Ltd 2007 Dolby, Pro Logic, Surround EX and the double-D symbol are trademarks of Dolby Laboratories. DTS, DTS Digital Surround, DTS-ES and Neo:6 are trademarks of Digital Theater Systems, Inc. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Page 2
540R v3 azur 3 ENGLISH Cambridge Audio warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below). Cambridge Audio will repair or replace (at Cambridge Audio's option) this product or any defective parts in this product. Warranty periods may vary from country to country. If in doubt consult your dealer and ensure that you retain proof of purchase. To obtain warranty service, please contact the Cambridge Audio authorised dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your Cambridge Audio product, it can be returned by your dealer to Cambridge Audio or an authorised Cambridge Audio service agent. You will need to ship this product in either its original packaging or packaging affording an equal degree of protection. Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that this product is within the warranty period, must be presented to obtain warranty service. This Warranty is invalid if (a) the factory-applied serial number has been altered or removed from this product or (b) this product was not purchased from a Cambridge Audio authorised dealer. You may call Cambridge Audio or your local country Cambridge Audio distributor to confirm that you have an unaltered serial number and/or you purchased from a Cambridge Audio authorised dealer. This Warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of, or to any part of, the product. This Warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than Cambridge Audio or a Cambridge Audio dealer, or authorised service agent which is authorised to do Cambridge Audio warranty work. Any unauthorised repairs will void this Warranty. This Warranty does not cover products sold AS IS or WITH ALL FAULTS. REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER. CAMBRIDGE AUDIO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY IN THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER INCLUDING, BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE. Some countries and US states do not allow the exclusion or limitation of incidental or consequential damages or implied warranties so the above exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other statutory rights, which vary from state to state or country to country. Plug Fitting Instructions (UK Only) The cord supplied with this appliance is factory fitted with a UK mains plug fitted with a 3 amp fuse inside. If it is necessary to change the fuse, it is important that a 3 amp one is used. If the plug needs to be changed because it is not suitable for your socket, or becomes damaged, it should be cut off and an appropriate plug fitted following the wiring instructions below. The plug must then be disposed of safely, as insertion into a mains socket is likely to cause an electrical hazard. Should it be necessary to fit a 3-pin BS mains plug to the power cord the wires should be fitted as shown in this diagram. The colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug. Connect them as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or coloured GREEN. If your model does not have an earth wire, then disregard this instruction. If a standard 13 amp (BS 1363) plug is used, a 3 amp fuse must be fitted, or if any other type of plug is used a 3 amp fuse must be fitted, either in the plug or adaptor, or on the distribution board. Limited warranty Checking the Power Supply Rating For your own safety please read the following instructions carefully before attempting to connect this unit to the mains. Check that the rear of your unit indicates the correct supply voltage. If your mains supply voltage is different, consult your dealer. This unit is designed to operate only on the supply voltage and type that is indicated on the rear panel of the unit. Connecting to other power sources may damage the unit. This equipment must be switched off when not in use and must not be used unless correctly earthed. To reduce the risk of electric shock, do not remove the unit's cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel. If the power cord is fitted with a moulded mains plug the unit must not be used if the plastic fuse carrier is not in place. Should you lose the fuse carrier the correct part must be reordered from your Cambridge Audio dealer. The symbol on this product indicates that it is of CLASS II (double insulated) construction. The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-insulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the service literature relevant to this appliance. The crossed-out wheeled bin is the European Union symbol for indicating separate collection for electrical and electronic equipment. This product contains electrical and electronic equipment which should be reused, recycled or recovered and should not be disposed of with unsorted regular waste. Please return the unit or contact the authorised dealer from whom you purchased this product for more information. Approvals This product complies with European Low Voltage (73/23/EEC) and Electromagnetic Compatibility (89/336/EEC) Directives when used and installed according to this instruction manual. For continued compliance only Cambridge Audio accessories should be used with this product and servicing must be referred to qualified service personnel. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAU THORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Re-orient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Safety precautions
