Cambridgeaudio azur 540 r mk2 service manual
This is the 41 pages manual for cambridgeaudio azur 540 r mk2 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from cambridgeaudio azur 540 r mk2 service manual (Ocr-read)

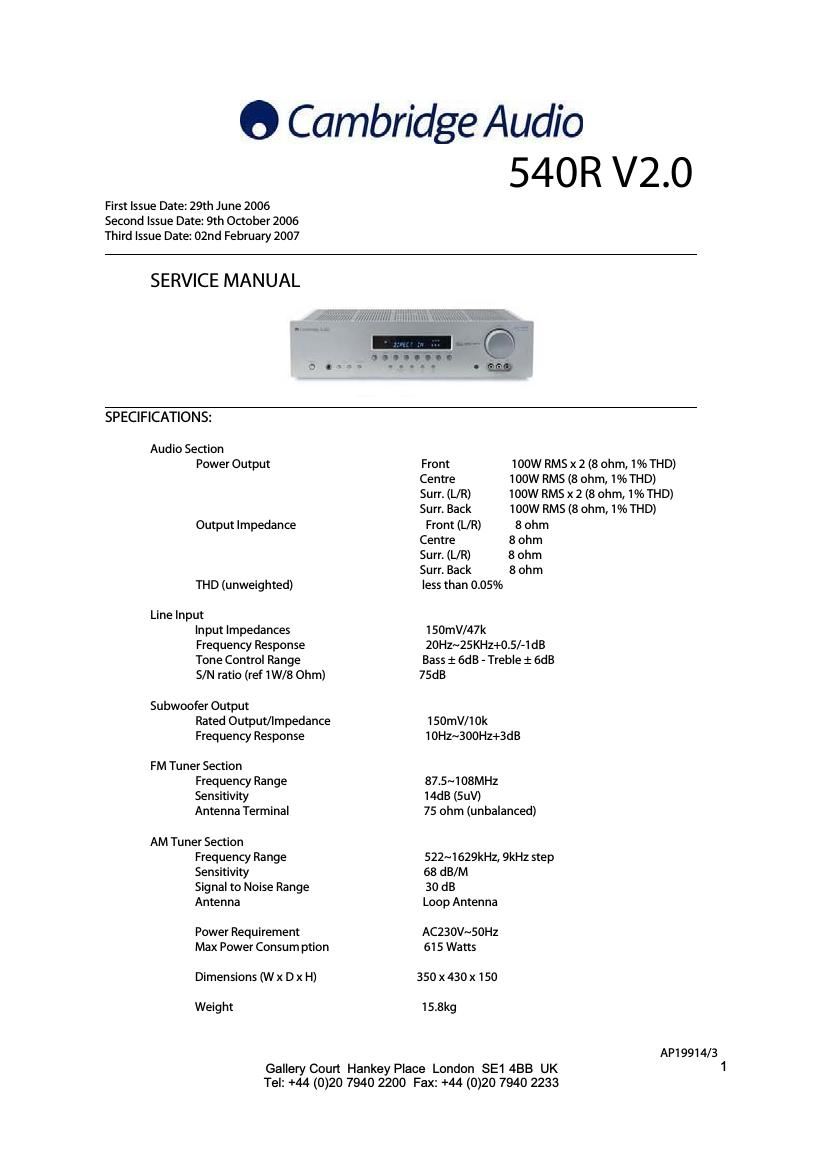

Page 1
6 Cambridge Audio
540 R V2.0
First Issue Date: 29th June 2006
Second Issue Date: 9th October 2006
Third Issue Date: 02nd February 2007
SERVICE MANUAL
SPECIFICATIONS:
Audio Section
Power Output Front 100W RMS x 2 (8 ohm, 1% THD)
Centre 100W RMS (8 ohm, 1%THD)
Surr. (L/R) 100W RMS x 2 (8 ohm, 1% THD)
Surr. Back 100W RMS (8 ohm, 1% THD)
Output Impedance Front (L/R) 8 ohm
Centre 8 ohm
Surr. (L/R) Sohm
Surr. Back 8 ohm
THD (unweighted) less than 0.05%
Line Input
Input Impedances 150mV/47k
Frequency Response 20Hz~25 KHz+0.5l-1 dB
Tone Control Range Bass : 6dB - Treble : 6dB
S/N ratiolref1W/8 Ohm) 75dB
Subwoofer Output
Rated Output/impedance 150mV/10k
Frequency Response 10Hz~300Hz+3dB
FM Tuner Section
Frequency Range 87.5~108MHZ
Sensitivity 14dB (SuV)
Antenna Terminal 75 ohm (unbalanced)
AM Tuner Section
Frequency Range 522~1629kHz, 9kHz step
Sensitivity 68 dB/M
Signal to Noise Range 30 dB
Antenna Loop Antenna
Power Requirement AC230V~50HZ
Max Power Consum ption 615 Watts
Dimensions (Wx Dx H) 350x430x 150
Weight 15,8kg
AP19914/3
Gallery Court Hankey Place London SE1 433 UK 1
Tel: +44 (0)20 7940 2200 Fax: +44 (0)20 7940 2233
