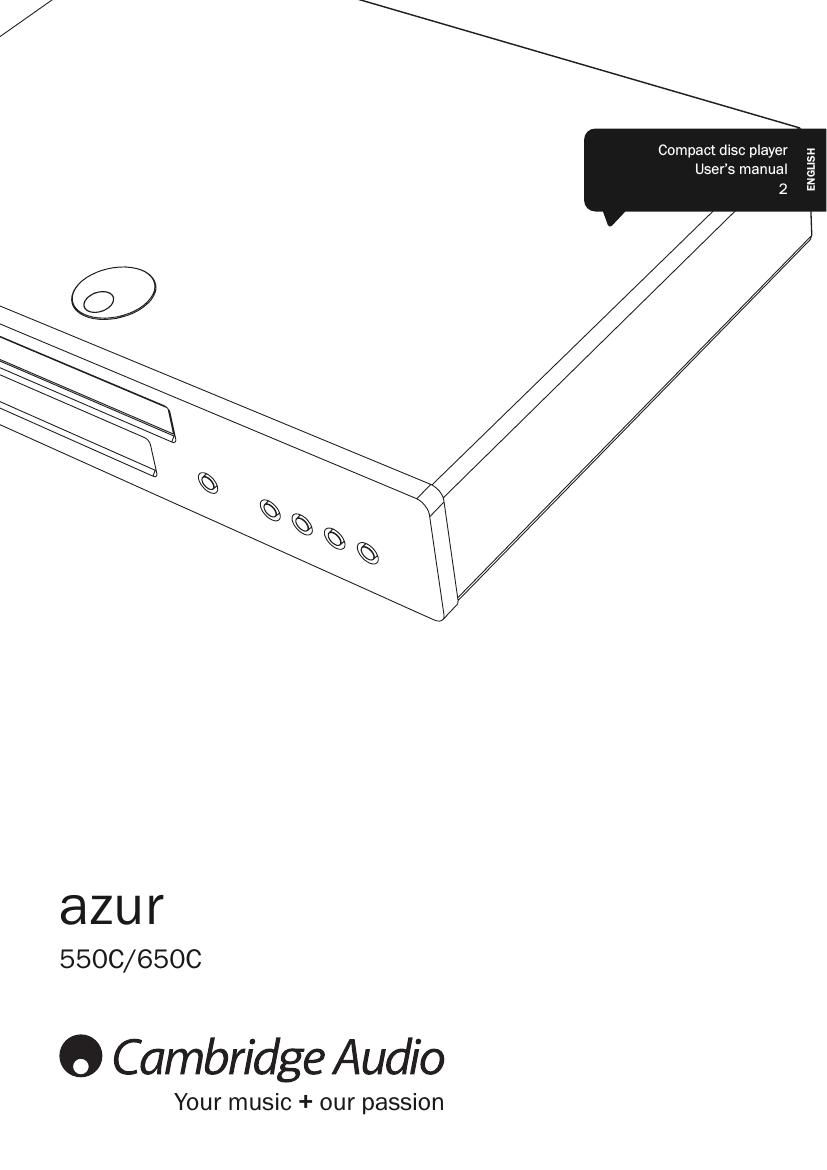

Cambridgeaudio Azur Audio 550C 650C Owners Manual
This is the 12 pages manual for cambridgeaudio Azur Audio 550C 650C Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from cambridgeaudio Azur Audio 550C 650C Owners Manual (Ocr-read)
Page 1
2 Contents Introduction Introduction .............................................................................................. 2 Important safety instructions .................................................................. 3 Limited warranty ...................................................................................... 4 Rear panel connections........................................................................... 5 Front panel controls ................................................................................. 6 Display functions...................................................................................... 6 Remote control ......................................................................................... 7 Operating instructions ............................................................................. 8 Filters ........................................................................................................ 10 Custom installation use ........................................................................... 11 Troubleshooting........................................................................................ 11 Technical specifications........................................................................... 11Thank you for purchasing this Cambridge Audio Azur 550C or 650C CD player. Like all Cambridge Audio products, the 550C and 650C adhere to three core principles – stunning performance, ease of use and incredible value. Developed as part of our on-going research and development regime, including extensive listening tests, we have incorporated many subtle tweaks and improvements to our circuits, components and layouts in the pursuit of our passion for sound quality. We have developed a completely new S3 servo for these models. The S3 is our third generation proprietary audiophile servo solution and draws on all our experience with this technology. It utilises the latest double- sided surface-mount technology for ultra short signal paths with freedom from wire links. It can dynamically adjust the focusing, tracking and output level of the laser in real-time, allowing for maximum retrieval of the digital information with extremely low data jitter. This is complemented by our use of a highly accurate master clock oscillator and very carefully designed impedance-matched clock buffering schemes. We have also incorporated support for CD-text to enhance those discs that feature it. For the critical Digital to Analogue converter stages, we have also moved to double-sided surface-mount to remove wire links and shorten all signal paths. New Metal Electrode Face resistors, polypropylene caps and custom-made electrolytic capacitors have all been used for their superior sound quality. Both models employ the WM8740 24bit/192kHz-capable Digital to Analog converter from Wolfson Microelectronics. This very high quality part is coupled to our proprietary Double Virtual Earth Balanced filter topology which has been revised and re-calibrated for Bessel coefficients in both the 550C and 650C. In line with all our models, a toroidal transformer is fitted to provide lower noise and less waveform distortion for quieter PSU operation. The 650C differs from the 550C in using a pair of WM8740 24bit/ 192kHz-capable Digital to Analogue converters implemented in a dual differential configuration. Since each channel has its own DAC to process information, completely separate and symmetrical analogue filter circuitry can be implemented. The 550C features a Three-Pole Double Virtual Earth Balanced filter topology with new Bessel co-efficients. The 650C features an even more sophisticated Four-Pole Dual Differential Double Virtual Earth Balanced version of this filter. This means that the DAC for each channel features two fully balanced outputs, each of which are then summed in a third order virtual earth balanced filter stage. A further first order balanced filter stage sums the balanced outputs of the earlier filter stages. This double-balanced configuration largely rejects noise and distortion products present in the DACs and filters themselves to produce an unprecedented level of performance. These models are amongst the first to feature a new casework design with a thicker braced front panel, more rigid wrap-over lid assembly and dual-layer damped feet, all of which contribute to better control of resonance. Another highlight is an eco-friendly low power (<1W) standby circuit. This circuit completely powers down the CD player circuits in Standby mode yet is itself totally isolated when the CD player is on, thus having no effect on sound quality. Your CD player can only be as good as the system it is connected to. Please do not compromise on your amplifier, speakers or cabling. Naturally, we particularly recommend amplification from the Cambridge Audio Azur range, which has been designed to the same exacting standards as our CD players. Your dealer can also supply excellent quality Cambridge Audio interconnects to ensure your system realises its full potential. Thank you for taking the time to read this manual; we recommend you keep it for future reference. Matthew Bramble Cambridge Audio Technical Director and the 550C/650C design team Make sure you register your purchase. Visit: www.cambridgeaudio.com/sts By registering, youll be the first to know about: Future product releasesSoftware upgradesNews, events and exclusive offers plus competitions! This guide is designed to make installing and using this product as easy as possible. Information in this document has been carefully checked for accuracy at the time of printing; however, Cambridge Audio's policy is one of continuous improvement, therefore design and specifications are subject to change without prior notice. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. All trademarks and registered trademarks are the property of their respective owners. © Copyright Cambridge Audio Ltd 2010
Page 2
3 550C/650C azur Important safety instructions For your own safety please read the following important safety instructions carefully before attempting to connect this unit to the mains power supply. They will also enable you to get the best performance from and prolong the life of the unit: 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use with only the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug having been damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. WARNING – To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. – Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. The unit is of Class 1 construction and must be connected to a mains socket outlet with a protective earthing connection. The unit must be installed in a manner that makes disconnection of the mains plug from the mains socket outlet (or appliance connector from the rear of the unit) possible. Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable. Only use the mains cord supplied with this unit. Please ensure there is ample ventilation (at least 10cm clearance all round). Do not put any objects on top of this unit. Do not situate it on a rug or other soft surface and do not obstruct any air inlets or outlet grilles. Do not cover the ventilation grilles with items such as newspapers, tablecloths, curtains, etc. This unit must not be used near water or exposed to dripping or splashing water or other liquids. No objects filled with liquid, such as vases, shall be placed on the unit.The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-insulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the service literature relevant to this appliance. WEEE symbol The crossed-out wheeled bin is the European Union symbol for indicating separate collection for electrical and electronic equipment. This product contains electrical and electronic equipment which should be reused, recycled or recovered and should not be disposed of with unsorted regular waste. Please return the unit or contact the authorised dealer from whom you purchased this product for more information. CE mark This product complies with European Low Voltage (2006/95/EC), Electromagnetic Compatibility (2004/108/EC) and Environmentally-friendly design of Energy-related Products (2009/125/EC) Directives when used and installed according to this instruction manual. For continued compliance only Cambridge Audio accessories should be used with this product and servicing must be referred to qualified service personnel. C-Tick mark This product meets the Australian Communications Authoritys Radio communications and EMC requirements. Ross Test Stamp This product meets Russian electronic safety approvals. FCC regulations NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Re-orient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. ENGLISH
