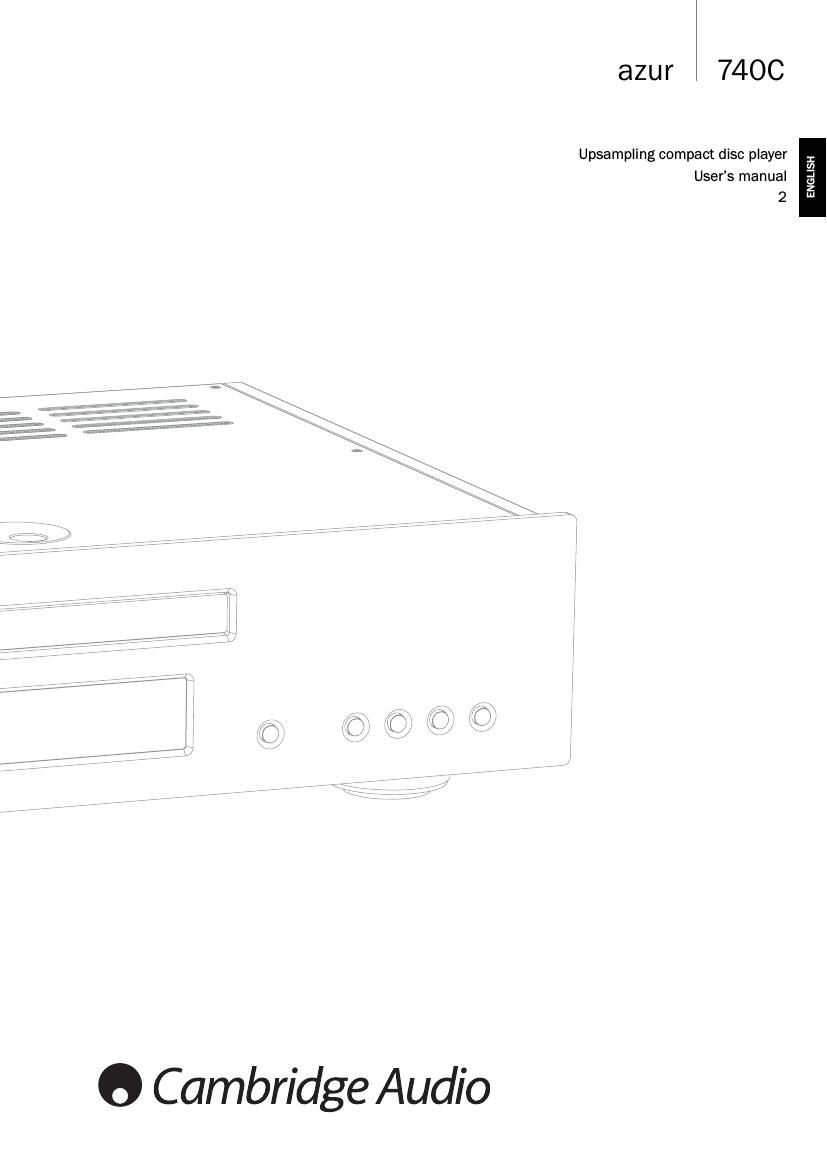

Page 1
Thank you for purchasing this Azur 740C Upsampling Compact Disc Player. We hope that you will appreciate the results and enjoy many years of listening pleasure from it. Key to the abilities of the 740C is ATF TM(Adaptive Time Filtering) an upsampling process developed in conjunction with Anagram Technologies of Switzerland. This system intelligently interpolates 16 bit/44.1kHz CD (or other) audio data to 24bit/384kHz through the use of a 32 bit Analog Devices Black Fin DSP (Digital Signal Processor) for the very best sound quality. The ATF system applies sophisticated polynomial curve fitting interpolation and incorporates a time domain model which allows data buffering and re-clocking almost completely eradicating digital jitter. As with the 540C/640C V2 CD players our proprietary Dual Differential Virtual Earth Balanced filter topology is used. However in the 740C this has been further enhanced. As the upsampled audio data rate is so high, aliasing artefacts are moved way above audible frequencies, this in turn allows us to use a new low order 2 pole linear-phase Bessel version of the topology for constant group delay and minimal phase shift in the audio band. Two very high quality Wolfson WM8740 24 bit DACs (Digital to Analog Converters) are used in dual differential mode. As each channel has its own DAC to process information, completely separate and symmetrical analog filter circuitry can be implemented. These allow both left and right channel circuitry to operate identically, ensuring the 740C delivers fantastic sound-staging and stereo imaging properties. Two digital inputs are fitted allowing other digital sources to be brought into the 740C and upsampled, the 740C then working as a very high quality DAC. A digital output is also fitted which can even output upsampled data at various rates and word widths, independent from the main audio output, which is always set at 24/384 for best sound quality. In addition to these audiophile features Control Bus Input/Output and IR Emitter Inputs are provided to make it easy to integrate this unit into Custom Installation systems if desired. All this proprietary engineering is housed within our low resonance, acoustically damped chassis. An Azur Navigator remote control is also provided, giving full remote control of your CD player and Azur amplifiers in an attractive and easy to use handset. Your CD player can only be as good as the system it is connected to. Please do not compromise on your amplifier, speakers or cabling. Naturally we particularly recommend amplification from the Cambridge Audio Azur range, and in particular the new 740A Integrated Amplifier which has been designed to the same exacting standards as this CD player. Your dealer can also supply excellent quality Cambridge Audio interconnects to ensure your system realises its full potential. Thanks for taking the time to read this manual; we do recommend you keep it for future reference. Matthew Bramble Technical Director 2 Contents Introduction Introduction .................................................................................................2 Limited warranty..........................................................................................3 Safety precautions ......................................................................................3 Important safety instructions .....................................................................4 Rear panel connections..............................................................................5 Front panel controls ....................................................................................6 Remote control ............................................................................................7 Remote control of matching products .......................................................7 iPod compatibility ........................................................................................7 Operating instructions ................................................................................8 External digital sources ..............................................................................9 CD player setup .........................................................................................10 Custom installation use............................................................................11 Troubleshooting ........................................................................................11 Technical Specifications ..........................................................................11 This guide is designed to make installing and using this product as easy as possible. Information in this document has been carefully checked for accuracy at the time of printing; however, Cambridge Audio's policy is one of continuous improvement, therefore design and specifications are subject to change without prior notice. If you notice any errors please feel free to email us at: support@cambridgeaudio.com This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. All trademarks and registered trademarks are the property of their respective owners. © Copyright Cambridge Audio Ltd 2007 Adaptive Time Filtering (ATF) technology is copyright Anagram Technologies SA. All Rights Reserved. iPod is a registered trademark of Apple Computer, Inc. All rights reserved.
Page 2
740C azur 3 ENGLISH Cambridge Audio warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below). Cambridge Audio will repair or replace (at Cambridge Audio's option) this product or any defective parts in this product. Warranty periods may vary from country to country. If in doubt consult your dealer and ensure that you retain proof of purchase. To obtain warranty service, please contact the Cambridge Audio authorised dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your Cambridge Audio product, it can be returned by your dealer to Cambridge Audio or an authorised Cambridge Audio service agent. You will need to ship this product in either its original packaging or packaging affording an equal degree of protection. Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that this product is within the warranty period, must be presented to obtain warranty service. This Warranty is invalid if (a) the factory-applied serial number has been altered or removed from this product or (b) this product was not purchased from a Cambridge Audio authorised dealer. You may call Cambridge Audio or your local country Cambridge Audio distributor to confirm that you have an unaltered serial number and/or you purchased from a Cambridge Audio authorised dealer. This Warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of, or to any part of, the product. This Warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than Cambridge Audio or a Cambridge Audio dealer, or authorised service agent which is authorised to do Cambridge Audio warranty work. Any unauthorised repairs will void this Warranty. This Warranty does not cover products sold AS IS or WITH ALL FAULTS. REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER. CAMBRIDGE AUDIO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY IN THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER INCLUDING, BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE. Some countries and US states do not allow the exclusion or limitation of incidental or consequential damages or implied warranties so the above exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other statutory rights, which vary from state to state or country to country. Plug Fitting Instructions (UK Only) The cord supplied with this appliance is factory fitted with a UK mains plug fitted with a 3 amp fuse inside. If it is necessary to change the fuse, it is important that a 3 amp one is used. If the plug needs to be changed because it is not suitable for your socket, or becomes damaged, it should be cut off and an appropriate plug fitted following the wiring instructions below. The plug must then be disposed of safely, as insertion into a mains socket is likely to cause an electrical hazard. Should it be necessary to fit a 3-pin BS mains plug to the power cord the wires should be fitted as shown in this diagram. The colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug. Connect them as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or coloured GREEN. If your model does not have an earth wire, then disregard this instruction. If a standard 13 amp (BS 1363) plug is used, a 3 amp fuse must be fitted, or if any other type of plug is used a 3 amp or 5 amp fuse must be fitted, either in the plug or adaptor, or on the distribution board. Checking the Power Supply Rating For your own safety please read the following instructions carefully before attempting to connect this unit to the mains. Check that the rear of your unit indicates the correct supply voltage. If your mains supply voltage is different, consult your dealer. This unit is designed to operate only on the supply voltage and type that is indicated on the rear panel of the unit. Connecting to other power sources may damage the unit. This equipment must be switched off when not in use and must not be used unless correctly earthed. To reduce the risk of electric shock, do not remove the unit's cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel. If the power cord is fitted with a moulded mains plug the unit must not be used if the plastic fuse carrier is not in place. Should you lose the fuse carrier the correct part must be reordered from your Cambridge Audio dealer. The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-insulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the service literature relevant to this appliance. The crossed-out wheeled bin is the European Union symbol for indicating separate collection for electrical and electronic equipment. This product contains electrical and electronic equipment which should be reused, recycled or recovered and should not be disposed of with unsorted regular waste. Please return the unit or contact the authorised dealer from whom you purchased this product for more information. Approvals This product complies with European Low Voltage (73/23/EEC) and Electromagnetic Compatibility (89/336/EEC) Directives when used and installed according to this instruction manual. For continued compliance only Cambridge Audio accessories should be used with this product and servicing must be referred to qualified service personnel. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Re-orient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Safety precautions Limited warranty
