Cambridgeaudio Azur 540R Owners Manual
This is the 12 pages manual for cambridgeaudio Azur 540R Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from cambridgeaudio Azur 540R Owners Manual (Ocr-read)
Page 1

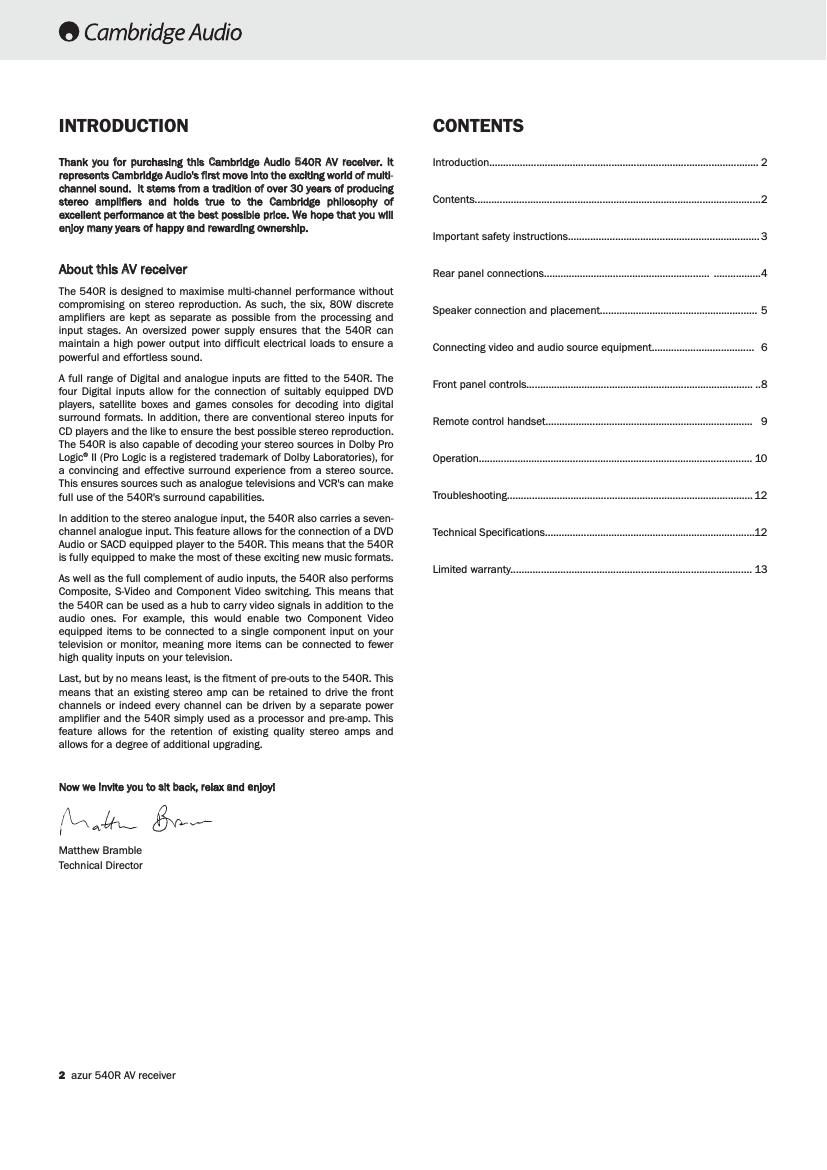

540RAV receiver azur 540R AV receiver 3 IMPORTANT SAFETY INSTRUCTIONS Read a and f follow i instructions - All the safety and operation instructions should be read before use. Retain i instructions - These instructions should be retained for future reference. Heed w warnings - Comply with all warnings on the 540R and in the manual. Cleaning - Unplug the 540R from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. Grounding a and p polarisation - The 540R may be equipped with a polarised alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarised plug. (North America Only) Overloading - Do not overload wall outlets or extension cord as this can result in a risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are dangerous. They may result in a shock or fire hazard. Power s sources - The 540R should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power-supply to your home, consult your product dealer or local Power Company. Accessories - Do not place the 540R on an unstable surface or shelf. The amp may fall, causing serious injury to a child or adult as well as serious damage to the product. Outdoor a antenna g grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NIPA No. 70-1984 (section 54 of Canadian Electrical Code, Part 1) provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna- discharge unit, size of grounding conductors, location of antenna- discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. Power c cord p protection - Your power supply cord should be placed so that the power lead is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at Wall plugs and where the power lead exits from the 540R. Contact t the s service d department s should a any oof tthese c conditions o occur: When the power-supply cord or plug is damaged. If liquid has been spilled, or objects have fallen into the amp. If the 540R has been exposed to rain or water. If the 540R does not operate normally after following the operation instructions, adjust only those controls that are covered by the operation instructions. If the amp has been dropped or damaged in any way. When the amp exhibits a distinct negative change in performance. Servicing - Do not attempt to service the 540R yourself as removing cover may expose you to dangerous voltages or other hazards. Refer all servicing through your dealer to qualified service personnel. Attachments - Do not use attachments not recommended by your dealer as they may cause harm to the 540R. Lightning - For added protection during a thunderstorm, or when it is left unattended and unused for long period of time, unplug the 540R from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the 540R from lightning and power-line surges. Heat d dispersion - Leave at least 10 cm of space between the top, back and sides of the 540R and the wall or other components for proper ventilation. Notes o on uuse Avoid high temperatures, allow for sufficient heat dispersion when installed on a rack. Handle the power cord carefully. Hold the plug when unplugging the cord. Keep the 540R free from moisture, water and dust. Unplug the power cord when not using the 540R for long periods of time. Do not obstruct the ventilation holes. Do not let foreign objects, or liquids to get into the 540R. Never disassemble or modify the 540R. IMPORTANT If tthe 5 540R i is rrun a at aa vvery h high l level, a a ssensor w will ddetect a a ttemperature rise a and s show " "PROTECTION O OVERLOAD" o on tthe d display. T The 5 540R w will then g go iinto s stand-b by. I It ccannot b be sswitched o on aagain u until t the temperature h has f fallen t to aa mmore n normal l level Plug f fitting i instructions ( (UKonly) The cord supplied with the 540R is factory fitted with a 13Amp mains plug fitted with a 13Amp fuse inside. If it is necessary to change the fuse, it is important that a 13Amp one is used. If the plug needs to be changed because it is not suitable for your socket, or becomes damaged, it should be cut off and an appropriate plug fitted following the wiring instructions below. The plug must then be disposed of safely, as insertion into a 13Amp socket is likely to cause an electrical hazard. Should it be necessary to fit a 3-pin BS mains plug to the power cord the wires should be fitted as shown in this diagram. The colours of the wires in the mains lead of the 540R may not correspond with the coloured markings identifying the terminals in your plug. Connect them as follows:- The wire which is coloured BLUE must be connected to the terminal which is marked with the letter 'N' or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter 'L' or coloured RED The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter 'E' or coloured GREEN. If your model does not have an earth wire, then disregard this instruction.
Page 2
4azur 540R AV receiver REAR PANEL CONNECTIONS FM / / AAM aantenna All tuner antenna connections are made here. Video o out S-Video out - Connect this to your television via an S-Video cable to display the picture of any unit connected via S-Video to the 540R. Composite Video out - Connect this to your television via an RCA phono cable to display the picture of any unit connected to the 540R via composite video. S-VVideo i in Video 1 / Video 2 - These can be used to connect any S-Video source to the 540R. DVD - Connect to the corresponding S-Video output terminal of a DVD player to play through the 540R. Note that any source can be connected here if desired. Composite V Video i in Video 1 / Video 2 - Connect to the corresponding Composite output terminal of a piece of video source equipment to play through the 540R. DVD - Connect to the corresponding Composite output terminal of a DVD player to play through the 540R. It is possible to connect any equipment with a Composite video output to these inputs. Coax i in CD - Connect to the corresponding Coaxial Digital output terminal of a CD player to play throught the 540R. DVD - Connect to the corresponding Coaxial Digital output terminal of a DVD player to play throught the 540R. It is possible to connect any equipment with a coaxial digital output to these inputs. Optical i in Video 1 / Video 2 - Connect to the corresponding Optical Digital output terminal of a suitably equipped video player to play through the 540R. DVD - Connect to the corresponding Optical Digital output terminal of a DVD player to play through the 540R. It is possible to connect any equipment with an Optical Digital output to these inputs. Coax O Out Connect to an external recording device to record selected digital audio source. Optical O Out Connect to an external recording device to record selected digital audio source. Component i in DVD - Connect to the Cr, Cb, Y terminals of a DVD player. Video - Connect to the Cr, Cb, Y terminals of a games console or other component equipped source. Component O Out Connect to the Pr, Pb, Y terminals on a Television. Reset This is used to reset the whole system including all existing saved information. Insert a paper clip and hold for approx 3 seconds. The unit will be reset and all saved settings will return to factory default settings. Audio I In CD/Aux - Connect to the line output terminals of a CD player. Video 1 /Video 2 - Connect to the line output terminals of a video player. DVD - Connect to the line output terminals of a DVD player. Tape Play - Connect to the line output terminals on the Tape Deck. Tape Rec - Connect to the line input terminals on the Tape Deck. Any line level source can be connected to any of these inputs (except Tape Play/Rec). 6.1 D Direct I In Connect to the 7 channel output terminals of a DVD player for playing DVD-A or SACD through the 540R. 6.1 D Direct O Out Connect to the 7 channel input terminals of another amplifier, separate power amps or active loudspeakers. Speaker t terminals Connect to loudspeakers with an impedance of between 4 and 8 ohms. Power O On // ooff Press this switch to turn on /off this unit.
