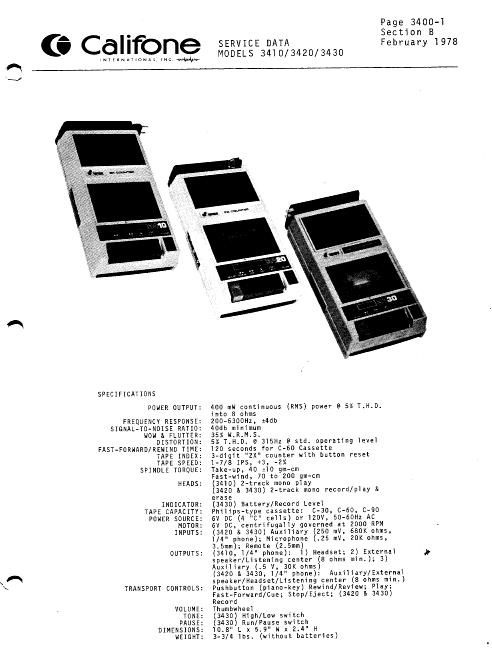

Page 1
Page 3400-1
A ' Section B
G CGIIIOI Ie SERVICE A February 1978
W MODELS sue/342013430
NIEENATIONAL,TNC
SPECIFICATIONS
POWER OUTPUT: 400 mu continuous (RMS) power @ 5% T.H.D.
into 8 ohms
FREQUENCY RESPONSE: 200-6300H1, t4db
SIGNAL-TO-NOISE RATIO: 4Udb minimum
WON & FLUTTER: 35% H.R.M.S.
DISTORTION: 5% T.H.D. @ 315Hz G std. operating level
FAST-FORHARD/REHIND TIME: 120 seconds for C-60 Cassette
TAPE INDEX: 3-digit "2X counter with button reset
TAPE SPEED: 1-7/8 IFS. +3, -2%
SPINDLE TORQUE: Take-up, 40 #10 gm-cm
Fast-wind, 70 to 200 gm-cm
HEADS: (3410) Z-track mono play
(3420 & 343D) Z-track mono record/play &
erase
INDICATOR: (3430) Battery/Record LeveT
TAPE CAPACITY: Philips-type cassette: 6-30, 6-60, C-90
POWER SOURC 6V DC (4 "C" c9115) or 120V, 50-60Hz AC
MOTO 6V DC, centrifugaITy governed at 2000 RPM
INPUTS: (3420 & 3430) Auxiliary (250 mV, 680K ohms,
1/4" phone); Microphone (.25 mV. 20K ohms,
3.5mm); Remute (2.5mm)
OUTPUTS: (3410, 1/4" phone): 1) Headset; 2) External *
speaker/Listening center (8 ohms min.); 3)
Auxiliary (.5 V. 30K oth)
(3420 & 3430, 1/4" phone): Auxiliary/External
speaker/Headset/L1stening center (8 ohms min.)
TRANSPORT CONTROLS: Pushbutton (piano-key) Rewind/Review; Play;
Fast»Forward/Cue; Stop/Eject; (3420 & 3430)
Record
VOLUME: Thumbwhee
TONE: (3430) High/Low swfitch
PAUSE: (3430) Run/Pause switch
DIMENSIONS: 10.8" L x 5.9" H x 2.4" H
WEIGHT: 3-3/4 Tbs. (withput batteries)
