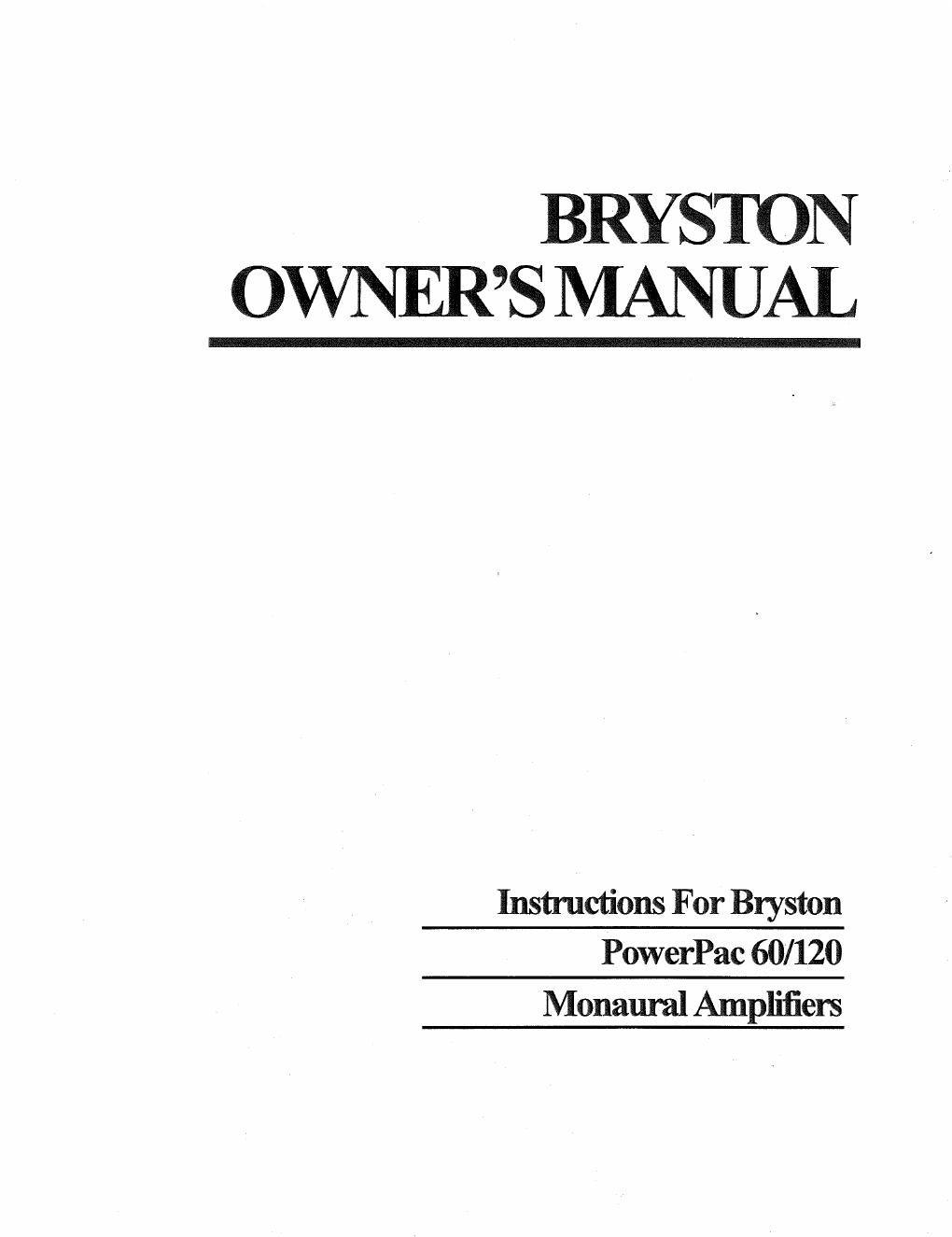

BRYSTON
OWNERS MANUAL

Instructions For Bryston
PowerPac 60/120
Monaural Amplifiers

Page 2

GENERAL INSTRUCTIONS

General infomiation:

Thank you for choosing a Bryston
product. We would welcome any comments
or suggestions you ma_ have regarding the
opera ion of our ampli ier. We consider our
customer to e Brystpns most important re-
sponse and your opinion is very much appre-
cia e .

_ in the unlikel event you have a prob-
lem With your ampli ier and. must return it for
service pease keep the original box and all
packaging material.

The Bryston PowerPac 60/120 is a
high quality modular single channel 60/120

watt power amplifier intended for use in a pli-
cations where portability, quality and flexi ility
are of prime importance.

The PowerPac 60 or 120 is a perfect
choice for use as a modular power amplifier
which can be attached directly to the rear of
your loudspeaker . it can also be bolted on
he wall, or in the wall, for utilization in audio/
video surround systems (left/rightlcenter/
rears) where a non-conspicuous power mod-
ule is required. Another application would be
in multi-room_audio systems where single or
multiple amplifiers are needed to provide mu-
sic to other rooms.

Setup Recommendations:

We recommend that you do not place
the amplifier in a totally enclosed area. Allow
some space at the top, Sides as your Bryston
amplifier relies on convection cooling and
some airflow is desirable.

Make sure the power switch on the
front panel of the amplifier is in the off tout)
position. Plug the_ _ower cord into the ront
panel of the ampli ier, then insert the male
end into the wall outlet.

. All Bryston amplifiers contain high
quality, dedicated CllCUltly in'the power sup-
plies to reject RF, line spikes and other
power-line problems.

Bryston power amplifiers do not re-

auire specialized power line conditioners.

lu the amplifier directly into its own wall
et.

Connect your loudspeakers ensuring
that the posmve (red; and ground (black) ter-
minals on your ampli ier are connected to the
positive and ground terminals on your loud-
speakers.

Note:
Make sure that the front panel

switch for choosing balanced or non-

balanced is in the correct position.

Description:

The Bryston Powerpac 120 monaural ampli-
fier con5ist of four of Brystons custom power
transistors as output deVIces. The power out-
put is 120 Watts @ 8 Ohms.

Dimensions: (LHM 12 X 4.3 X 7 Inches
30.5 x 10.99 x 17.8 cm.
Weight 10.6 Lbs/4.8Kg.

The Bryston Powerpac 60 monaural amplifier
consist of two of Bryston's custom power tran-
5istors as output deVIces. The power output
is 60 Watts @ 8 Ohms.

Dimensions: (LHVlo 12X 1.3x 7.1 Inches
30.5X4.6 x 17.9 cm.
Weight 5. 7 Lbs/2. 6Kg.
