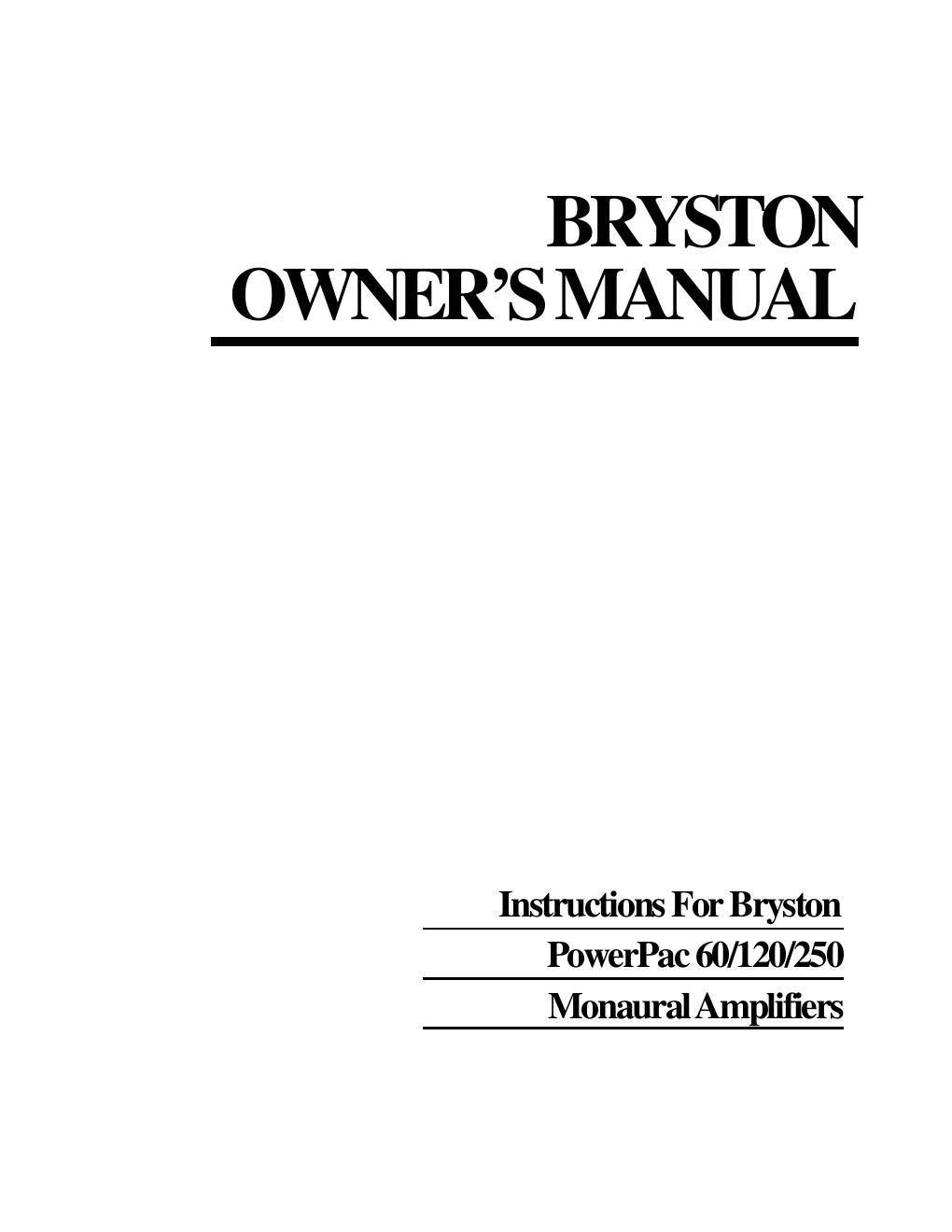

Bryston powerpac 60 120 250 owners manual
This is the 8 pages manual for bryston powerpac 60 120 250 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bryston powerpac 60 120 250 owners manual (Ocr-read)
Page 1
GENERAL INSTRUCTIONS Setup Recommendations: Description: General Information: Thank you for choosing a Bryston product. We would welcome any comments or suggestions you may have regarding the operation of your amplifier. We consider our customer to be Bryston,s most important re- source and your opinion is very much appre- ciated. In the unlikely event you have a prob- lem with your amplifier and must return it for service please keep the original box and all packaging material. The Bryston PowerPac 60/120/250 are high quality modular single channel 60/120 /250 watt power amplifier intended for use in applications where portability, quality and flexibility are of prime importance. The PowerPac is a perfect choice for use as a modular power amplifier which can be attached directly to the rear of your loud- speaker . It can also be bolted on the wall, or in the wall, for utilization in audio/video sur- round systems (left/right/center/rears) where a non-conspicuous power module is required. Another application would be in multi-room audio systems where single or multiple ampli- fiers are needed to provide music to other rooms. We recommend that you do not place the amplifier in a totally enclosed area. Allow some space at the top, sides as your Bryston amplifier relies on convection cooling and some air flow is desirable. Make sure the power switch on the front panel of the amplifier is in the off (out) position. Plug the power cord into the front panel of the amplifier, then insert the male end into the wall outlet. All Bryston amplifiers contain high quality, dedicated circuitry in the power sup- plies to reject RF, line spikes and other power-line problems. Bryston power amplifiers do not re- quire specialized power line conditioners. Plug the amplifier directly into its own wall socket. Connect your loudspeakers ensuring that the positive (red) and ground (black) ter- minals on your amplifier are connected to the positive and ground terminals on your loud- speakers. Note: Make sure that the front panel switch for choosing balanced or non- balanced is in the correct position. The Bryston PowerPac 60 monaural amplifier consist of two of Brystons custom power transistors as output devices. The power output is 60 Watts @ 8 Ohms. The Bryston PowerPac 120 monaural amplifier consist of four of Brystons custom power transistors as output devices. The power output is 120 Watts @ 8 Ohms. The Bryston PowerPac 250 monaural amplifier consist of eight of Brystons custom power transistors as output devices. The power output is 250 Watts @ 8 Ohms. Dimensions PP60: (LHW) 12 X 1.8 X 7.1 Inches, 30.5 x 4.6 x 17.9 cm. Weight 5.7 Lbs/2.6Kg. Dimensions PP120: (LHW) 12 X 4.3 X 7 Inches, 30.5 x 10.9 x 17.8 cm. Weight 10.6 Lbs/4.8Kg. Dimensions PP250: (LHW) 17 X 4.5 X 8.4 Inches, 43 x 11.5 x 21 cm. Weight 23 Lbs/10.5Kg.
Page 2
BRYSTON POWERPAC 60/120/250 Grounding and Ground LIft Switch (except PP250): Input and Output Connectors: Bryston PowerPac amplifiers come standard with two input connectors: one un- balanced RCA/phono connector and a bal- anced combination XLR - 1/4-inch jack with fully discrete active input circuitry. All input connectors are gold-plated and should only be used only with high- quality, gold-plated interconnect cable as a poorly plated connector will eventually cor- rode through the gold flash. Bryston offers interconnect cables with heavily gold plated, quality connectors available through any Bryston authorized dealer or directly from Bryston. Output connectors consist of one pair of five-way binding post terminals (1 red and 1 black) that can accept either standard banana plugs, spade lugs, pins or bare wire. Since the binding posts are gold- plated, we recommend gold plated connec- tors also be used on the speaker cables. All Bryston amplifiers will accept bal- anced or single-ended (RCA) input connec- tors. The balanced inputs use combination 3-pin XLR (pin-1-ground), (pin-2-+) and 1/4-inch tip-(+), ring and sleeve (ground) input connectors. A ground lift switch is located on the front panel of the amplifier. It is connected between the chassis ground (including the third prong on the power cord) and the signal ground. This switch is normally left in the con- nected (up) position. Occasionally a multi- amplifier installation or an unusual grounding situation with another component (CD player, video recorder, television etc.) will cause a ground loop between the signal ground and the chassis ground. This switch will reduce the resultant hum in many cases without re- sorting to a cheater plug by switching to the separated (down) position. Note: this switch does not disconnect the chassis from the third prong on the power cord which must be left intact for safety reasons. POWERPAC 60/250 ONLY Dual colour LED pilot lights indicating GREEN at normal level, flashing RED at clipping.
