IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol within an equilateral triangle, is intended to aler t the user to the presence of un-insulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons . The exclamation point within an equilateral triangle is intended to aler t the user to the presence of impor tant operating and maintenance (servicing) instructions in the literature accompanying the product. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the pro - vided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched par ticularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the car t, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a car t is used use caution when moving the car t/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING AND ENSURE THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, ARE PLACED ON THE EQUIPMENT. TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE. THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE. BRYSTON LIMITED WARRANTY Bryston analog audio circuits are warranted to be free from manufacturing defects for twenty (20) years from the original date of manufacture. The warranty includes par ts and labour. Bryston Digital circuits and cables are warranted for five years from the original date of manufacture. The warranty includes par ts and labour. Bryston products having motorized moving par ts, excluding motorized volume controls, are warranted for three years from the original date of manu - facture. The warranty includes par ts and labour. Bryston will remedy the problem by repair or replacement, as we deem necessary, to restore the product to full per formance. Bryston will pay ship - ping costs one way (usually the return por tion) during the first three years of warranty coverage. In the event of a defect or malfunction, contact Brystons repair centers for return authorization. Products must be returned using original packaging material only. Packing material may be purchased from Bryston if necessary. This warranty is considered void if the defect, malfunction or failure of the product or any component par t was caused by damage (not resulting from a defect or malfunction) or abuse while in the possession of the customer. Tampering by persons other than factory authorized service personnel or failure to fully comply with Bryston operating instructions voids the warranty. This warranty gives you specific legal rights and you may also have other rights which may vary from province to province and country to country. As of 2006-02-22 Bryston will only warranty Bryston products purchased through authorized Bryston dealers. Bryston products with a date code of 0608 or higher (date code format is yyww, where yy is the two least significant digits of the year and ww is the week of the year) must be accompanied by a copy of the bill-of-sale from a Bryston authorized dealer to qualify for warranty service. The warranty is transferable from the original owner to a subsequent owner as long as a copy of the bill-of-sale from the original authorized Bryston dealer accompanies the re-sale. The copy of the bill of sale to any subsequent owner need ONLY include the Name of the Bryston Authorized Dealer and the Model and Serial number of the Bryston product The warranty will only be honored in the country of the original purchase unless otherwise pre-authorized by Bryston. Postal address: P.O. BOX 2170, Stn. Main PETERBOROUGH, ONTARIO CANADA K9J 7Y4 Courier address: 677 NEAL DRIVE PETERBOROUGH, ONTARIO CANADA K9J 6X7 PHONE: 705-742-5325FAX: 705-742-0882E-mail: cdnser@bryston.ca 79 COVENTRY ST., Suite 5 NEWPORT, VERMONT U.S.A. 05855-2100 PHONE: 80 2-334-1201 FAX: 802-334-6658E-mail: usaser@bryston.ca BRYSTON SERVICE in CANADA : BRYSTON SERVICE in the USA : contact your local distributor or CHECK OUR WEB SITE: www.bryston.ca E-MAIL BRYSTON DIRECTLY: cdnser@bryston.ca FAX BRYSTON DIRECTLY: 01-705-742-0882 PHONE BRYSTON DIRECTLY: 01-705-742-5325 BRYSTON SERVICE outside Canada and the USA :
Page 2

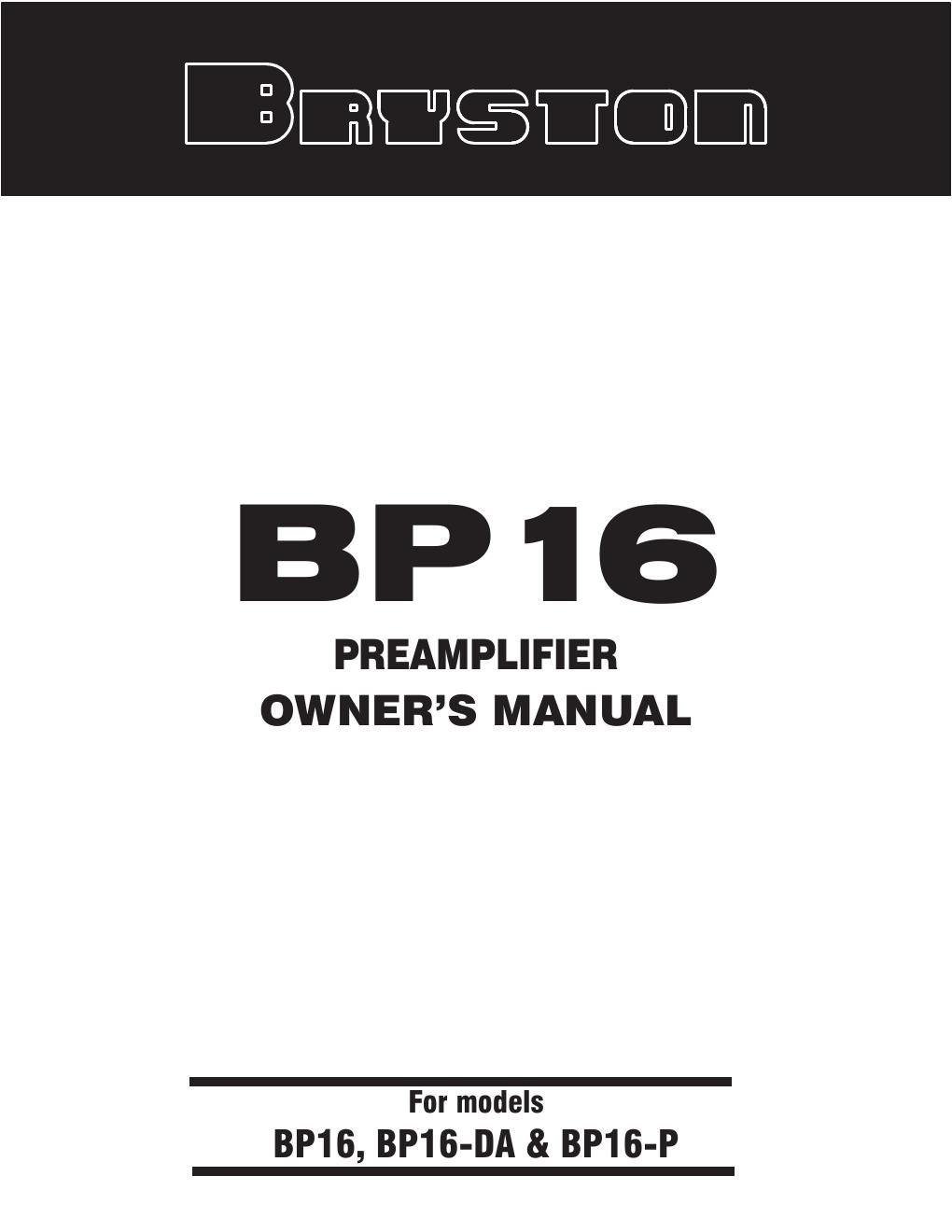

BP16 PREAMPLIFIER 1 INTRODUCTION: Thank you for purchasing a Bryston BP16 Preamplifier. We are confident it will provide you with many years of musical enjoyment. We would welcome any suggestions or comments you may have regarding the operation of your Bryston amplifier. In the unlikely event that your amplifier may require service Bryston recommends that you retain the origi - nal shipping box and packaging material for future use if required. SETUP RECOMMENDATIONS: You may place your BP16 Preamplifier in any convenient location. Make sure you position the amplifier to maintain a direct line-of-sight between the hand-held remote and the remote sensor eye located on the front panel. If plugged in the BP16 will remain in standby indicated by the RED power LED on the front panel. The amplifier is powered up by engaging the power button located on the front panel of the BP16 or by depressing the POWER button on the hand held remote control unit.. The BP16 will power-up momentarily with mute engaged, indicated by the mute LED turning red on the front panel; it will then turn off within a few seconds. The POWER LED will stay lit green indicating normal operation. CONNECTIONS: WIRED (SERIAL DATA) REMOTE CONTROL : There is one RS-232, one AUX IR input and two 12 volt trigger output connections as well. The RS-232 is bi-d irectional and allows for future software downloads from the Bryston website. It also interfaces with control systems such as Crestron and AMX. CHASSIS GROUND : A chassis ground thumb screw terminal is provided on the rear panel. 12 VOLT TRIGGER CONNECTOR: These 12Vdc control outputs allow the BP16 to exert on/off control over compatible equipment. See REMOTE POWER CONTROL for more informa - tion.. LINE LEVEL ANALOG AUDIO INPUTS : The Bryston BP16 Preamplifier comes equipped with 8 pairs of gold plated analog RCA input connectors: TV , CD , AUX-1/PHONO , AUX-2/SPDIF , VIDEO , TUNER , RECORD IN and POWER AMP IN . All have and input impedance of 50K ohms - POWER AMP IN is normally connected, internally, to PRE AMP OUT via the CONNECTED/SEPARATE slide switch located on the rear panel. When this switch is in the SEPARATE position, however, any line level audio input can be used at the POWER AMP INPUT jacks to drive the amplifier. - In BP16-DA models the AUX2 (D1/D2) input jacks accept only SPDIF PCM bit streams. They do NOT accept analog audio input signals. - In BP16-P models, which are equipped with a moving-magnet phono equalization module, the inputs labeled AUX1/PHONO accept moving mag - net phono cartridge inputs. These inputs are NOT line level inputs in the BP16-P and cannot be used as such. LINE LEVEL ANALOG AUDIO OUTPUTS : The Bryston BP16 Preamplifier comes equipped with 3 pairs of gold plated analog RCA jacks for outputs: 2 pairs of PREAMP OUT jacks and 1 pair of RECORD OUT jacks . - PREAMP OUT is normally connected, internally, via the CONNECTED/SEPARATE switch, to POWER AMP IN - RECORD OUT output is not affected by volume, balance or mute controls. DIGITAL AUDIO INPUTS: In the BP16-DA model, which contains a stereo D/A converter module, there are 4 digital audio inputs available. Two TOSLINK optical inputs are selected by pressing the D3 (TOSLINK-1) or D4 (TOSLINK-2) buttons on the front panel (when in digital mode) or on the handheld remote. Two SPDIF coaxial inputs can be connected to the BP16-DA using the RCA input jacks labeled D1 and D2 . To select these inputs first place the unit in digital mode by pressing the DIGITAL 4 Selec t button on the front panel (or the A/D button on the handheld remote) and then press the D1 or D2 button on the front panel or on the remote). When the green LED above the font panel DIGITAL 4 SELECT switch button in ON concur - rently with either the D1 (cd) , D2 (tuner) , D3 (tv) or D4 (vIdeO) LEDs, then digital mode is engaged. Note : Whatever digital input was previously selected in Digital Mode will be automati - cally reselected upon re-entering Digital
