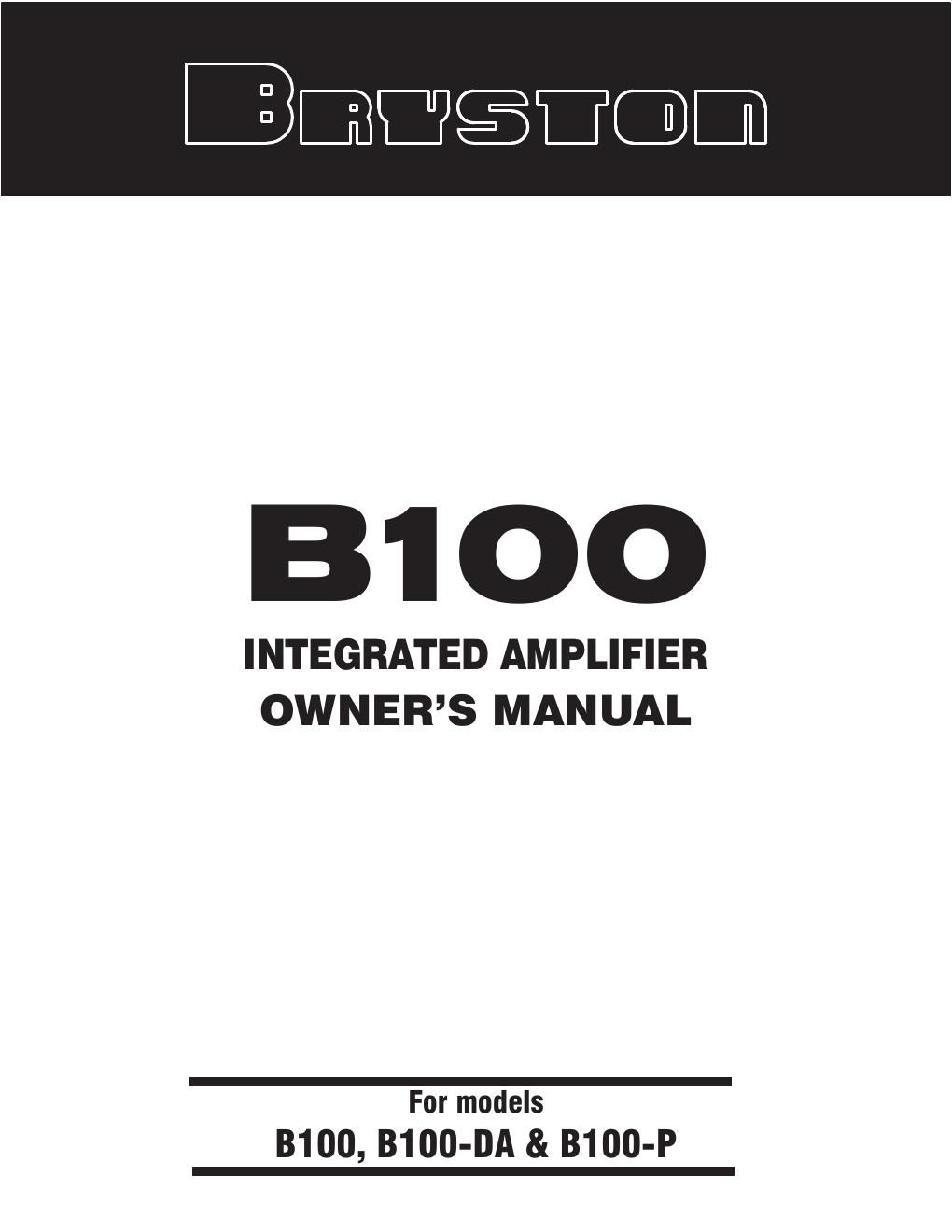

Bryston b 100 owners manual
This is the 10 pages manual for bryston b 100 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bryston b 100 owners manual (Ocr-read)
Page 1
The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includ ing amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used use caution when moving the cart/apparatus combi nation to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not oper ate normally, or has been dropped. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING AND ENSURE THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, ARE PLACED ON THE EQUIPMENT. TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE. THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE. IMPORTANT SAFETY INSTRUCTIONS
Page 2
B100 TWO CHANNEL POWER AMPLIFIER 1 INTRODUCTION: Thank you for purchasing a Bryston B100 integrated amplifier. We are confident it will provide you with many years of musical enjoyment. We would welcome any suggestions or comments you may have regarding the operation of your Bryston amplifier. In the unlikely event that your amplifier may require service Bryston recommends that you retain the original shipping box and packaging material for future use if required. SETUP RECOMMENDATIONS: You may place your B100 integrated amplifier in any convenient location. Make sure you position the ampli - fier to maintain a direct line-of-sight between the hand-held remote and the remote sensor eye located on the front panel. If plugged in the B100 will remain in standby indicated by the RED power LED on the front panel. The amplifier is powered up by engaging the power button located on the front panel of the B100 or by depressing the POWER button on the hand held remote control unit.. The B100 will power-up momentarily with mute engaged, indicated by the mute LED turning red on the front panel; it will then turn off within a few seconds. The POWER LED will stay lit green indicating normal operation. CONNECTIONS: LOUDSPEAKERS : Connect your loudspeakers, ensuring that the positive (red) and ground (black) terminals (gold-plated 5-way binding posts) on the Bryston B100 integrated amplifier are connected to the positive and ground terminals on your loudspeakers. Make certain the left and right speaker outputs on the amplifier are connected to your appropriate left and right loudspeakers. SEPARATE PRE-AMP OUT & POWER AMP IN JACKS: These two pair of RCA jacks allow for the independent use of the stereo amplifier section within a multi-chan - nel audio or video system. On the rear panel there are connections labeled PRE AMP OUT (preamplifier output) and POWER AMP IN (power amplifier input) along with two slide switches (one per channel) labeled Separate/Connect. This feature allows you to "separate or connect" the preamplifier section of the B100 from the power amplifier section thus producing a separate stereo preamp and separate stereo power amplifier. WIRED (SERIAL DATA) REMOTE CONTROL : There is one RS-232, one AUX IR input and two 12 volt trigger output connections as well. The RS-232 is bi- directional and allows for future software downloads from the Bryston website. It also interfaces with control systems such as Crestron and AMX. CHASSIS GROUND : A chassis ground thumb screw terminal is provided on the rear panel. 12 VOLT TRIGGER CONNECTOR: These 12Vdc control outputs allow the B100 to exert on/off control over compatible equipment. See REMOTE POWER CONTROL for more information.. LINE LEVEL ANALOG AUDIO INPUTS : The Bryston B100 integrated amplifier comes equipped with 8 pairs of gold plated analog RCA input con - nectors: TV , CD , AUX-1/PHONO , AUX-2/SPDIF , VIDEO , TUNER , RECORD IN and POWER AMP IN . All have and input impedance of 50K ohms - POWER AMP IN is normally connected, internally, to PRE AMP OUT via the CONNECTED/SEPARATE slide switch located on the rear panel. When this switch is in the SEPARATE position, however, any line level audio input can be used at the POWER AMP INPUT jacks to drive the amplifier. - In B100-DA models the AUX2 (D1/D2) input jacks accept only SPDIF PCM bit streams. They do NOT accept
