Extracted text from bryston 4 bsst brochure (Ocr-read)
Page 1
FEATURES - Front panel membrane power switch - Toggle power switch on rear panel - No fuses; protected by resettable circuit breaker - Soft-start circuit on power up - Modular construction - Quad-complimentary output stage - Multiple filter capacitance per channel - Independent power supply for each channel - Robust pro audio construction - Audiophile sound quality - Selectable external power-up - Quick-connect remote 12V power trigger input - Delayed output on trigger - Selectable gain settings for each channel - Balanced and single-ended inputs - XLR or 1/4 phone jack for balanced input - RCA jack for single-ended inputs - Channel status LED indicators - Option of 17 shelf mount or 19 rack mount - Rack mount version include handles - Option of silver or black faceplate - UL, CE, and CSA approved - Available for 100V, 120V, or 240V power - 20-Year Unlimited Warranty Electronic front panel membrane power switch (no moving parts); rear panel toggle power switch doubles as circuit breaker reset (no fuses). SST Input flexibility: XLR or 1/4 phone jack for balanced signals and RCA jack for single-ended source; input gain is selectable. Quick-connect 12 Volt trigger input allow remote on/off triggering of your amplifier(s). Power LEDs on the front panel indicate each channels functional status - green for power-on, red for overdrive. Modular design with independent power supplies each with its own transformer for precise sound-staging. The Bryston SST Series 4B SST As Bryston makes a great many of the amplifiers found in professional studios and concert venues, we make all amplifiers available in standard 19 rack mount configuration with handles, as well as the 17 shelf-mount version preferred by many consumers. Either size aluminum front panel may be ordered in a silver or black finish. 20 -YEAR W ARRANTY Unlimited, unprecedented, unequaled Bryston Limited P.O. Box 2170, 677 Neal Drive, Peterborough, Ontario Canada K9J 7Y4 Phone: 1-800-632-8217 www.bryston.ca

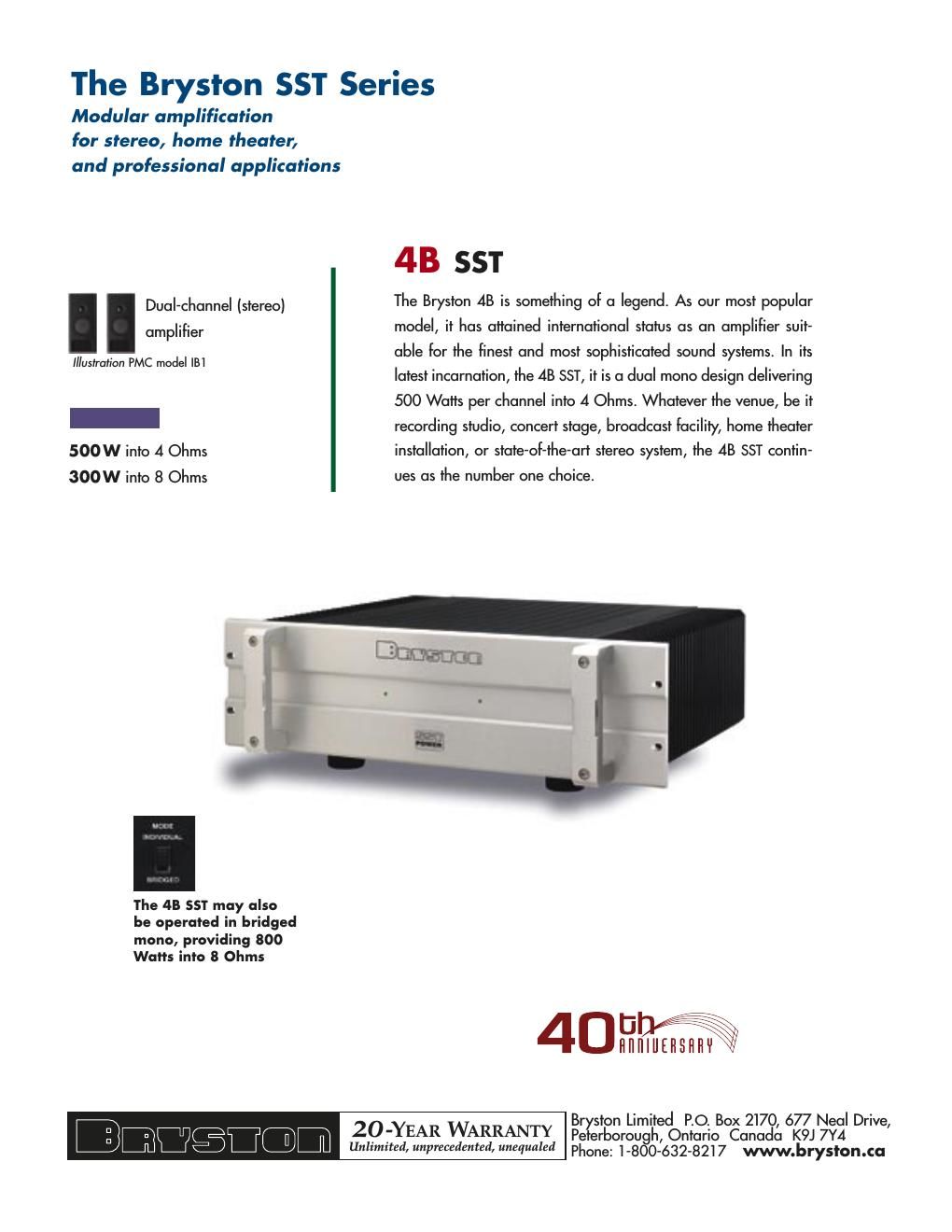

Page 2
The Bryston SST Series 4B SST Dual-channel (stereo) amplifier 20 -YEAR W ARRANTY Unlimited, unprecedented, unequaled Bryston Limited P.O. Box 2170, 677 Neal Drive, Peterborough, Ontario Canada K9J 7Y4 Phone: 1-800-632-8217 www.bryston.ca Canadas largest independent manufacturer of high-end audio electronics for consumers and professionals. Founded 1962. Power and heat specifications Max. power consumption 160 Watts at idle 2100 Watts at rated output into 4 or 8 Ohms Max. heat dissipation 545 BTU/hr. at idle 3890 BTU/hr. at rated output into 4 or 8 Ohms Dimensions 19 x 5.25 x 17.25 in. 48.25 x 13.3 x 43.8 cm 15.75 in./40.1 cm 17 x 5.25 x 15.75 in. 43.2 x 13.33 x 40.1 cm 42 lbs/18 kg Rack mount version (with handles) Mounted rack depth Shelf mount version (without handles) Approx. weight SPECIFICATIONS Power output 500 Watts per channel into 4 Ohms; 300 Watts per channel into 8 Ohms Distortion < 0.007% from 20Hz to 20kHz at rated output into 4 Ohms IM or THD+noise < 0.005% from 20Hz to 20kHz at rated output into 8 Ohms Gain & Sensitivity 1 Volt setting 29dB; 2.3V 2 Volt setting 23dB; 4.6V Noise (Measured with input shorted; 20Hz. to 20kHz.) >110dB below rated output @ 29dB gain (-75dBu) >113dB below rated output @ 23dB gain (-78dBu) Slew rate Greater than 60 volts per microsecond Power bandwidth From less than 1 Hz to over 100 kHz Damping factor Over 300 at 20 Hz, ref. 8 Ohms Input Impedance 50kOhms single-ended, 20kOhms balanced
