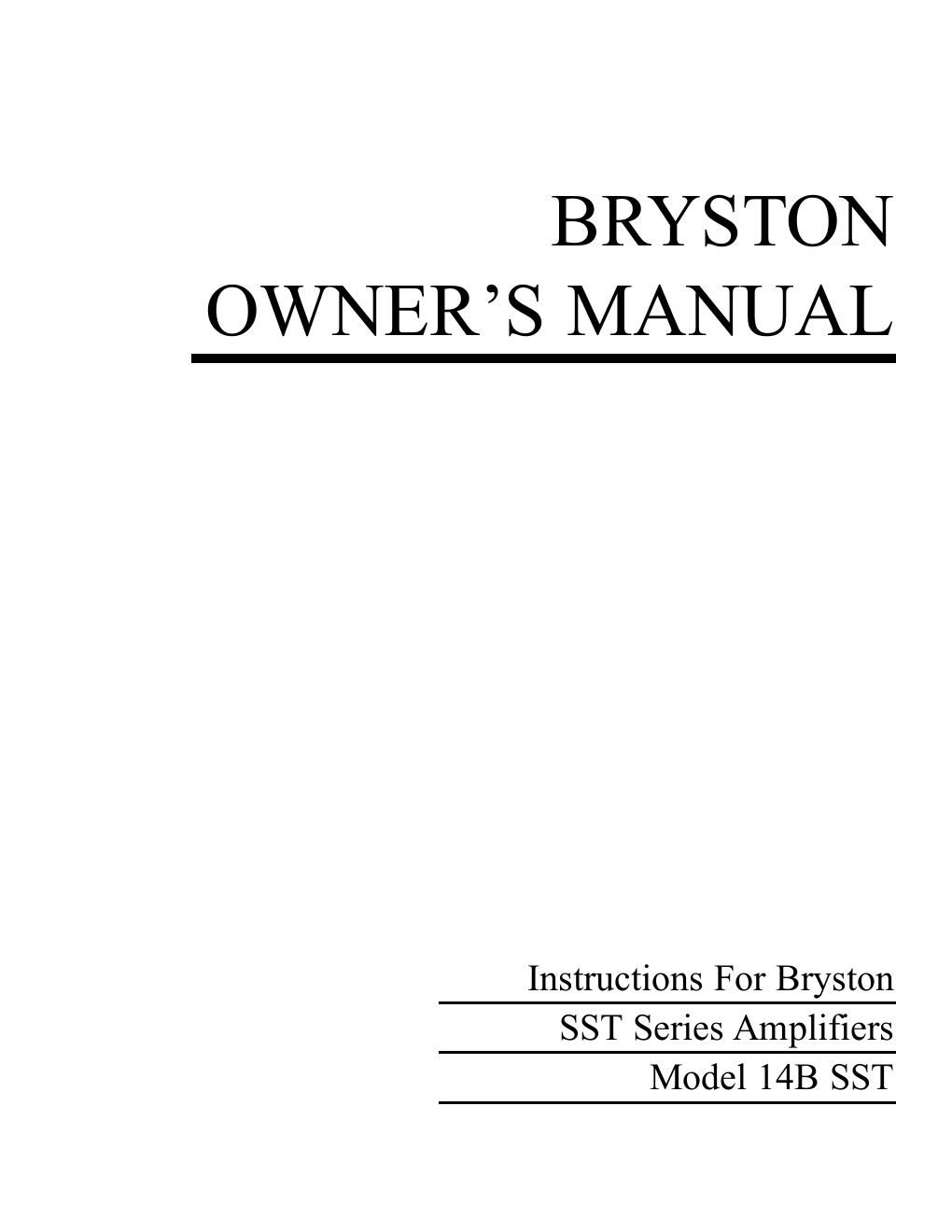

Bryston 14b sst owners manual
This is the 14 pages manual for bryston 14b sst owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bryston 14b sst owners manual (Ocr-read)
Page 1
14B SST Series Amplifier Table of Contents General IntroductionPage 1 Description Installation and Ventilation Rear Panel Input Settings/Connections Page 2 Setting Input Selector Switch Balance Input Connector Configuration Setting Input Sensitivity Output Binding Posts Page 3 Front Panel DescriptionPage 4 LED Indicator (Power-up Sequence) LED Indicator (Operating Conditions) Power Control PanelPage 5 Master Circuit -Breaker AC Power Input Local/Auto Switch Local/External Switch Block DiagramsPage 6 Typical Performance GraphsPage 7-10 Technical SpecificationsPage 11 Important Warranty InformationBack Cover
Page 2
14B SST Series Amplifier 1 Introduction Thank you for choosing the 14B SST SERIES Stereo Power Amplifier. Bryston welcomes any suggestions you may have, or comments regarding the operation of your amplifier. We consider you, our customer, to be Brystons most important resource, and your opinion is very much appreciated. Description 14B SST The 14B SSTis a dual channel 600 Watt audio power amplifier. The 14B SST selects a balanced or single ended input and a gain of 29dB (UNBAL or BAL+6db) or 23dB (BAL REG) may be selected. The 14B SST includes soft start power control circuitry to eliminate high inrush currents when A/C power is applied. The power up or turn-on of the 14B SST may be activated by a remote control voltage 4v to 12v ac or dc. Warranty ( see back page for details ) Shipping Box & Packing Material Please keep the original shipping box and all packing material. This will ensure the amplifier is protected in future trans- port. In the unlikely event you have a problem and must return it for service you must use the proper packing material. Ship the amplifier only in the original packing material, as the unit is not insurable by carriers otherwise. Installation ( see rack mounting section if applicable ) Ventilation. The most important installation consideration is ventilation. The 14B SST amplifier is convection cooled. Unrestricted air-flow across the 14B SST heat sinks is a must. For this reason do not install anything directly above it. Allow 3.5 (2u) to 5 (3u) inches of space above and to the sides of this amplifier. Do not install directly above other heat gener- ating equipment. Should your instillation conditions be constricted, then additional forced air-cooling may be necessary. Bryston can provide an optional fan package if required. Thermal shut down during operation indicates insufficient air flow, and a remedy must be found for cooling the amplifier. Provide a minimum 6 space to the rear of the amplifier for ventila- tion and dressing cables to and from the amplifier. Never operate the amplifier in a vertical position. Wiring the SST amplifier ( also see rear panel description ) Speaker wiresshould be as short as practical. Use quality wire, and if runs are more than 3 meters use at least 12 gage wire. The speaker binding posts will accept wire up to 3 gage in size. Bryston offers speaker cables and amp interconnects for your application. Check our website under products/cables (www.bryston.ca) for more information. A/C power Before plugging in the power cord be sure your 14B SST amplifier is specified for the correct a/c voltagefor your locali- ty. The voltage is listed on the label found at the upper right of the rear panel. The circuit feeding the 14B SST should be sufficient so as not to cause the circuit breaker to trip (15 amp min). Note: the 14B SST when delivering maximum power into a 4 ohm load, will consume all the available power in a normal household circuit, therefore a dedicated electrical cir- cuit may be necessary with this situation. Never lift the safety ground to the amplifier nor remove the ground pin from the plug. IMPOR TANT NOTE: If your 14B SST is equipped with a 20 amp breaker, a dedicated line should be run with a minimum of 12 gage wire. Please consult an authorized Electrician before installing this amplifier. Bryston and/or its dealers will not be held responsible for and damage that may happen to person/property if the proper procedures listed above are not taken. Power line conditioners will not improve the 14B SST amplifier performance, in fact most of the time they restrict the flow of current to the amplifier, reducing performance at higher output levels
