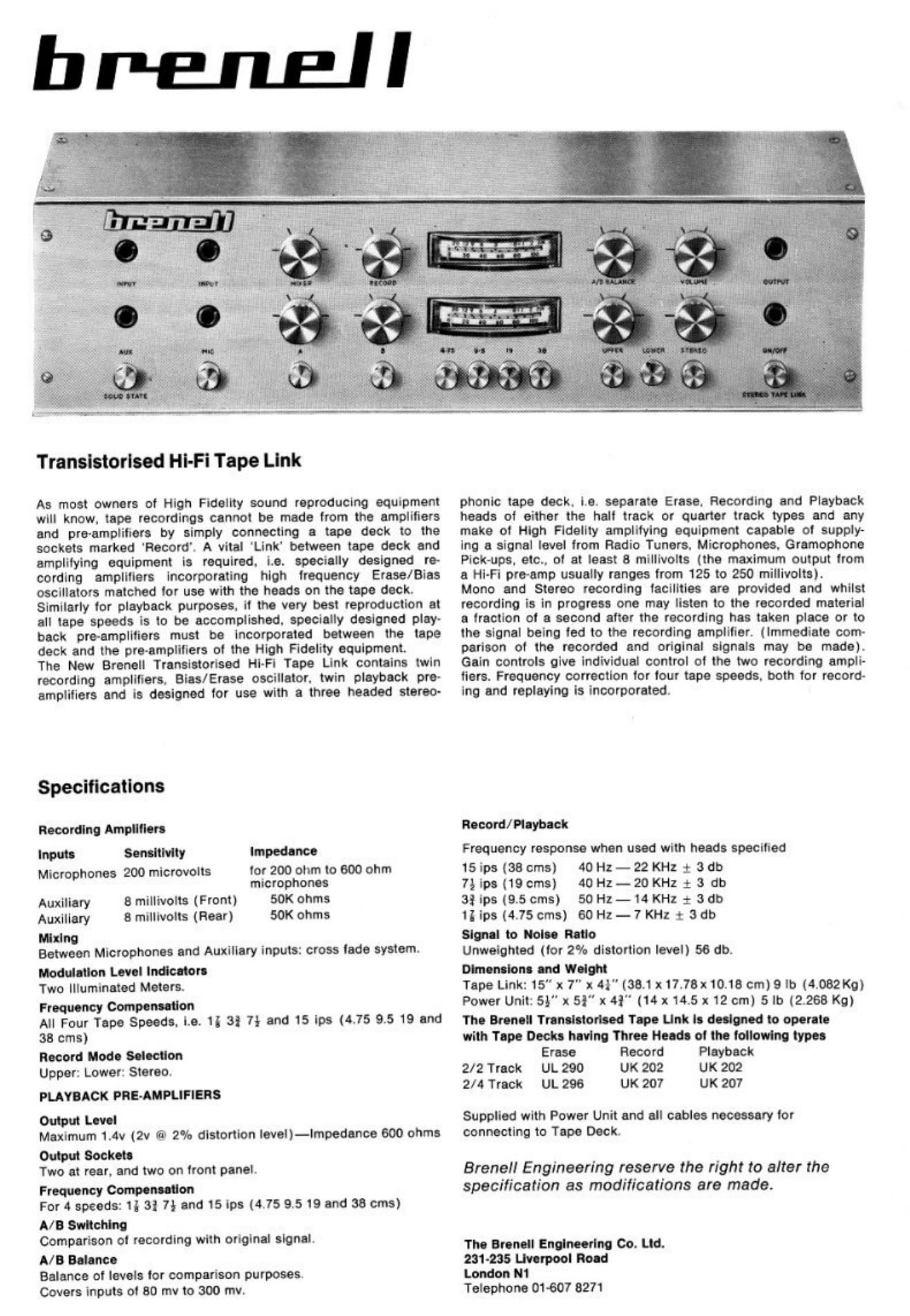

Brenell TapeLink Transistor

Page 1

Translstorlsed Hi-Fi Tape Link

As most owners of High Fidelity sound reproducing equipment
will know. tape recordings cannot be made from the amplifiers
and preamplifiera by simply connecting a tape deck to the
sockets marked 'Record'. A vital 'Link' between tape deck and
amplilying equipment is required. i.e. specially designed re-
cording amplifiers Incorporating high lreguency Erase/Bias
oscillators matched tor use with the heads on the tape deck.

Similarly tor playback purposes. it the very best reproduction at
all tape speeds is to be accomplished. specially designed play-
back pre-empliiiers must be incorporated between the tape
deck and the pro-amplifiers oi the High Fidelity equipment.

The New Brenell Transistorlsed l-ll-Fi Tape Llnk contains twin
recording amplifiers. Bias/Erase oscillator. twin playback pre-
amplifiers and is designed for use with a three headed stereo~

Specifications

Recording AmpIilers

Inputs Sensitivity Impedance

Microphones 200 microvolts lor 200 ohm to 600 ohm
microphones

Auxiliary 8 millivolts (Front) 50K ohms

Auxiliary 8 millivolts (Rear) 50K ohms

sing

Between Microphones and Auxiliary inputs: cross lode system.

Mediation Level lndcators

Two Illuminated Meters.

Frequency Compensation

All Four Tape Speeds. La. 1] 3! 7i and 15 lps (4.75 9.5 19 and
38 cms)

Record Mode Selection

Upper: Lower: Stereo.

PLAYIACK PHI-AMPLIFIERS

Output Level
Maximum 1.4V (2v t3) 2% distortion lemon-impedance 600 ohms

Output Sockets
Two at rear, and two on front panel.

Frequency Compensation
For 4 speeds: 1; 31 7t and 15 lps (4.75 9.519 and 30 cms)

A/B Swim

Comparison ot recording with original signal.
All Balance

Balance of levels tor comparison purposes.
Covers Inputs pl 80 mv to 300 mv.

phonic tape deck. is. separate Erase. Recording and Playback
heads oi either the hall track or quarter track types and any
make 01 High Fidelity amplifying equipment capable ol supply-
lng a signal level from Radio Tuners. Microphones. Gramophone
Pick-ups. etc.. oi at least 8 mllllvolts (the maximum output lrorn
a Hi-Fi pro-amp usually ranges from 125 to 250 millivolts).

Mono and Stereo recording lacllltles are provided and whilst
recording is in progress one may listen to the recorded material
a traction ot a second after the recording has taken place or to
the signal being led to the recording amplifier. (immediate com-
parison oi the recorded and original signals may be made).
Gain controls give individual control at the two recording ampli-
liers. Frequency correction tor tour tape speeds. both tor record-
ing and replsylng is incorporated.

Record/Playback

Frequency response when used with heads specified

15 ips (Moms) 40 Hz -22 KHz 1 3 db

7) ips (19 cms) 40 l-lz- 20 KHz 1 3 db

3 lps (9.5 ems) 50 Hz - 14 KHz : 3 db

11lps(4.75 cms) 60 Hz - 7 Kit: 1 3 db

Signal to Noise Mo

unweighted (ior 2% distortion level) 56 db.

Dbnertslona ltd Halal

Tape Link: 15 x 7" x 41" (33.1 x17.73x10.18 cm) 9 lb (4.082Kg)
Power Unit: 5}" x 5!" x 41 (14 114.5 x 12 cm) 5 lb (2.268 Kg)
The Brenall Translatortsed qu Link is designed to operate
with Tape Decks having Three Needs of the lollowing types

Erase Record Playback
2/2 Track UL 290 UK 202 UK 202
2/4 Track UL 296 UK 207 UK 207

Supplied with Power Unit and all cables necessary ior
connecting to Tape Dock.

Brenell Engineering reserve the right to alter the
specification as modifications are made.

The lreneii lndneerlng Co. Ltd.
231-235 Liverpool Road

London N1

Telephone 01-607 8271
