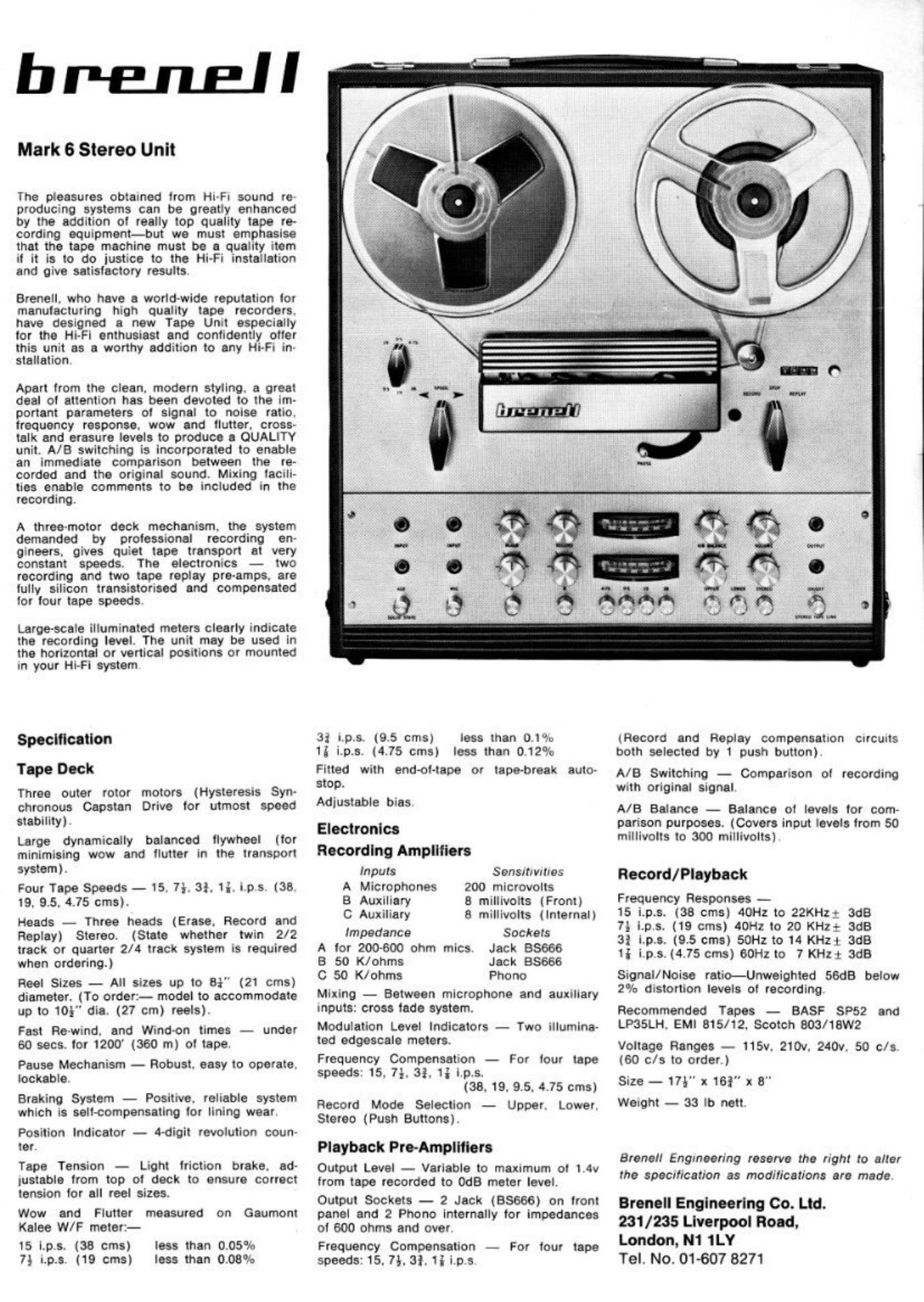

Mark 6 Stereo Unit

The pleasures obtained lrom Hi-Fi sound rer
producing systems can be greatly enhanced
by the addition ot really top quality tape re-
cording eqmpment-but we must emphasise
that the tape machine must be a quality item
it it is to do justice to the Hi-Fi installation
and give satisfactory results

Brenell. who have a worldwide reputation tor
manutacturing high quality tape recorders,
have designed a new Tape Unit especrally
tor the HiFi enthusiast and contidently otter
this unit as a worthy addition to any Hi-Fi inr
stallation

Apart from the clean. modern styling. a great
deal ol attention has been devoted to the im-
portant parameters ol signal to noise ratio.
frequency response. wow and tlutter. cross-
talk and erasure levels to produce a QUALITV
unit. A/B switching is incorporated to enable
an immediate comparison between the re-
corded and the original sound. Mixing tacili-
ties enable comments to be included in the
recording.

A three-motor deck mechanism, the system
demanded by protcseional recording on
gineers. gives quiet tape transport at very
constant speeds. The electronics - two
recording and two tape replay pre-amps. are
lully silicon transistorised and compensated
tor tour tape speeds.

Large-scale illuminated meters clearly indicate
the recording level. The unit may be used in
the horizontal or vertical positions or mounted
in your Hl-Fi system

Specification
Tape Deck

Three outer rotor motors (Hysteresis Syn-
chronous Capstan Drive for utmost speed
stability)

Large dynamically balanced flywheel (tor
minimising wow and tiutter in the transport
system).

Four Tape Speeds -15.7; 31.1; ips (38
19. 9.5. 4.75 cms).

Heads - Three heads (Erase. Record and
Replay) Stereo. (State whether twin 2/2
track or quarter 2/4 track system is refituired
when ordering.)

Reel Sizes - All sizes up to 8}" (21 cms)
diameter. (To order:- model to accommodate
up to 10)" die. (27 cm) reels).

Fast Rewind. and Windon times - under
60 secs. lor 1200' (360 m) of tape.

Pause Mechanism - Robust. easy to operate.
lockable.

Braking System - Positive. reliable system
which is sell-compensating tor lining wear

Position Indicator - 4-dlgit revolution coun-
ter
Tape Tension - Light triction brake. ad-

iustable from top at deck to ensure correct
tension tor all reel sizes.

Wow and Flutter
Katee W/F meter:----

15 to s. (38 cms)
7) i.p.s. (19 cms)

measured on Gaumont

less than 0.05%
less than 0.08%

33 i.p.s. (95 cms)
15 i.p.s. (475 cms)

Fitted with end-ot-tape or
stop.

Adjustable bias

less than 0.1%
less than 012%

tape-break auto-

Electronics
Recording Amplifiers
Inputs Sensmwries
A Microphones 200 microvolts
8 Auxiliary 8 milllvolts (Front)
C Auxiliary a millivolts (internal)
Impedance Sockets
A tor 200-600 ohm mics. Jack 88666
B 50 K/ohms Jack 88666
C 50 K/ol'lms Phono
Mixing - Between microphone and auxiliary
inputs: cross iade system.
Modulation Level Indicators - Two illumina-
ted edgescaie meters.
Frequency Compensation - For tour tape

speeds: 15. 7;. 31. 1; i.p.s.
(38. 19. 9.5. 4.75 cms)

Record Mode Selection - Upper. Lower.
Stereo (Push Buttons)

Playback Pro-Amplifiers

Output Level - Variable to maitimum oi l 4v

from tape recorded to OdB meter level.

Output Sockets -- 2 Jack (88666) on lront
panel and 2 Phono internally for impedances
ot 600 ohms and over

FrequenCy Compensation -
speeds: 15. 7;. 3!. 1i i.p.s

For tour tape

(Record and Replay compensation Circuits
both selected by 1 push button)

NB Switching - Comparison oi recording
with original signal

A/B Balance - Balance oi levels tor com-
parison purposes. (Covers input levels trom 50
millivolts to 300 millivolts)

Record/Playback

Frequency Responses -

1S i.p.s. (38 cms) 40Hz to 22KHz; 3dB
; i.p.s. (19 cms) 40Hz to 20 KHz+ 3dB

3i i.p.s. (9.5 cms) 50Hz to 14 KHzl 3GB

1} ips. (4.75 cms) 60Hz to 7 KHz 1 3dB

Signal/Noise ratio-Unweighted 56dB below
2% distortion levels or recording

Recommended Tapes - BASF SP5? and
LPSSLH, EMt 815/12. Scotch 803/18W2

Voltage Ranges - 115v. 210v. 240v. 50 Us
(60 c/s to order)

Size -175"x 161"): 8"
Weight - 33 lb nett.

Brenell Engineering reserve the right to alter
the specrfication as modifications are made

Brenell Engineering Co. Ltd.
231/235 Liverpool Road.
London, N1 1LY

Tel. No. 01.607 8271
