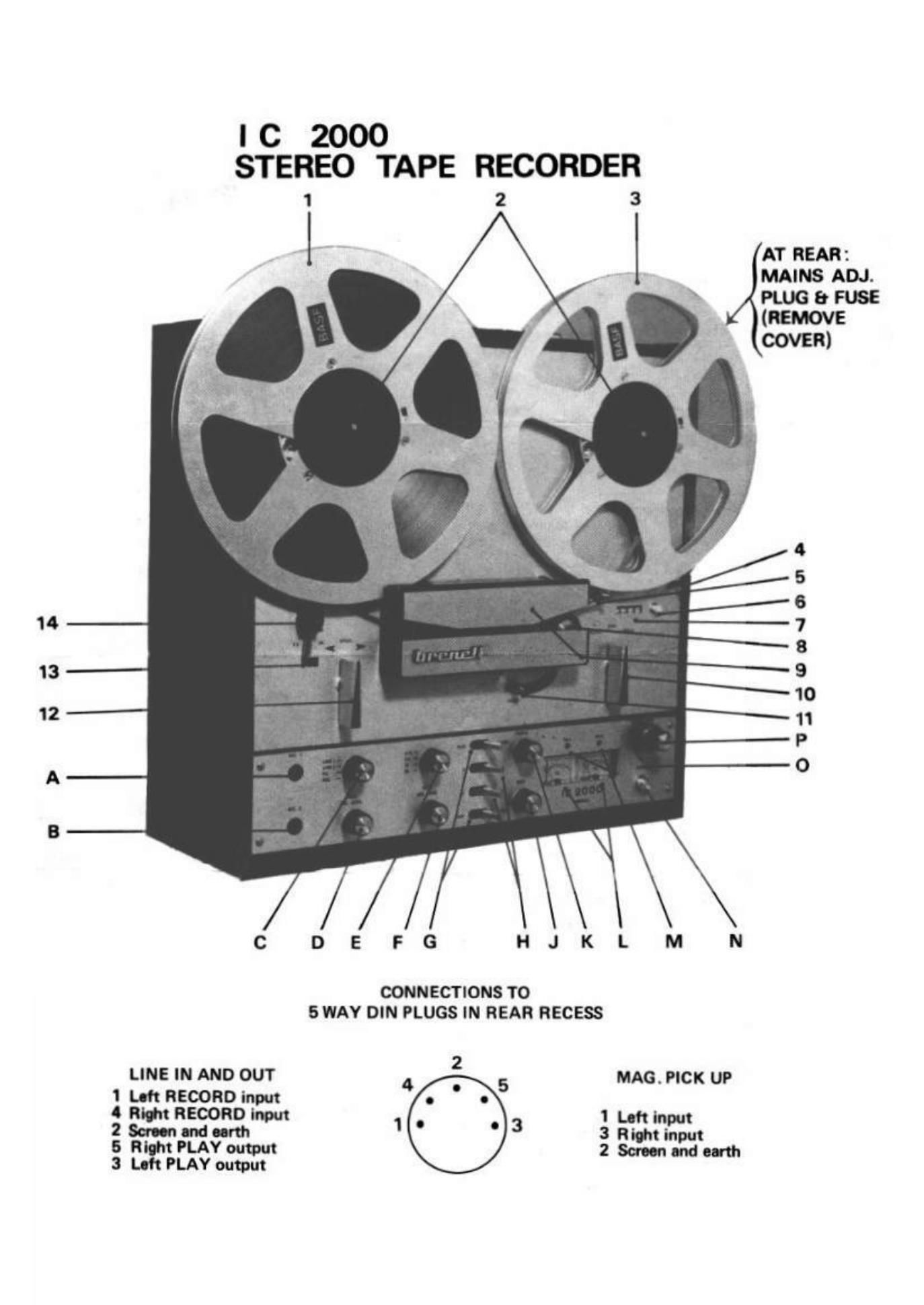

Brenell IC 2000

Page 1

14

13

12

IC

2000

STEREO TAPE RECORDER
1 2 3

C

LINE IN AND OUT

1 Loft RECORD input
6 Rw RECORD inpm
2 Sam and cant:

5 R t PLAY

3 PLAY output

ougawmqamo

DEFG HJKLMN

CONNECT IONS TO
SWAY DIN PLUGS IN REAR RECESS

5 MAG. PICK UP

3 :1 about
: input
2 Sam and earth

Page 2

Feed spool

Spool retainers {hubs below)
Takerup spool

Tape-spillage stop-pillar
Tape guide

Zero set button

Tape position indicator
Pinch wheel

Head covers

Record-Replay switch,
adjacent: record interlock button
Pause control lever

Fast forward-rewind switch
Tape tension switch

Speed change switch

_.
oomummwa-t

dd-l-h
th-J

A Channel 1 - microphone input

B Channel 2 - microphone input

0 Channel 1 8t 2 - input selector switch

D Channel 1 - record-level control

E Speed equalisation switch

F Channel 2 - record level control

G Channel 1 & 2 - record-playback selector
H Channel 1 8t 2 - A-B comparison selecmr
J Bass control

K Treble control

L Record-level meters

M Channel 1 81 2 Bias pre-sets

N Mains on-off button

0 Neon mains indicator light

P Playback volume level controls

NOTES

(channel lzbottom, channel 2:top}

Tape : standard play or long play

Input selector switch (C) :

Speed change switch (14):

REAR CONNECTIONS

Line 1 High level input (studio use etc.)
150 mV to 25 V into 1 M ohm

Line 2 Low level input (Radio, Tuner etc. Ceramic pick-up with 470 K ohms

series resistorl
2 mV to 200 mV into 100 K ohms.

P U Magnetic Pick-up direct
47 K ohms, 3 mV

Ribbon or moving coil microphone
200 ohms, sensitivity 200 microvolts.

Speeds available with 1 inch die. capstan sleeve fitted to capstan spindle (see
G" on Tape Loading Chart):

9.5, 19, 39 cm/s {3%, 7%, 15 ips). Read figures below switch.

with '/2 inch ma. capstan sleeve finedlSUPplledns accessory).

19, 9.5, 4.75 cm/s (7%, 3%, 1 ips). Read figures above switch.

The capstan sleeve is retained on the capstan spindle by a grub screw. Allow
for clearance above spindle bearing when fitting capstan sleeve. Special sleeves
for 60 cps mains supply or other speeds are available.

MIC

Right and left hand extension loudspeakers: 12 watts RMS from each channel, into 8 ohms. 2 pole jack

Stereo Headphones:

Magnetic pickup:
Line In and Out;

Mains supply:

FUSES

plugs (BS 666) disconnect internal speakers. Ensure speakers are phased
correctly. Set volume controls to minimum (fully anti-clockwise] before
connecting.

all types suitable. Set volume controls to minimum before connecting.
Use 3 pole jack plug.

5 pin DIN plug. See connection diagram on page 1.

5 pin DIN plug. See connection diagram on page 1.
Line In: see input selector switch notes above.
Line Out: suitable for most amplifiers (50 K ohms, 200 mVl.

110 to 250 volts, AC only, 50 cps, (60 cps available).
Mains selector plug must be set to correct supply voltage; normally set to
240 volts before despatch.
Connect 3 pin mains plug to 3 core mains cable:
Yellowvlgreen to earth pin llargesll
Brown to live pin (marked L)
Blue to neutral pin (marked N)
For access remove rear panel.

2 amps.
1% amps.

- inside red selector plug -
, below mains transformer -

Mains fuse
2 LT. fuses
