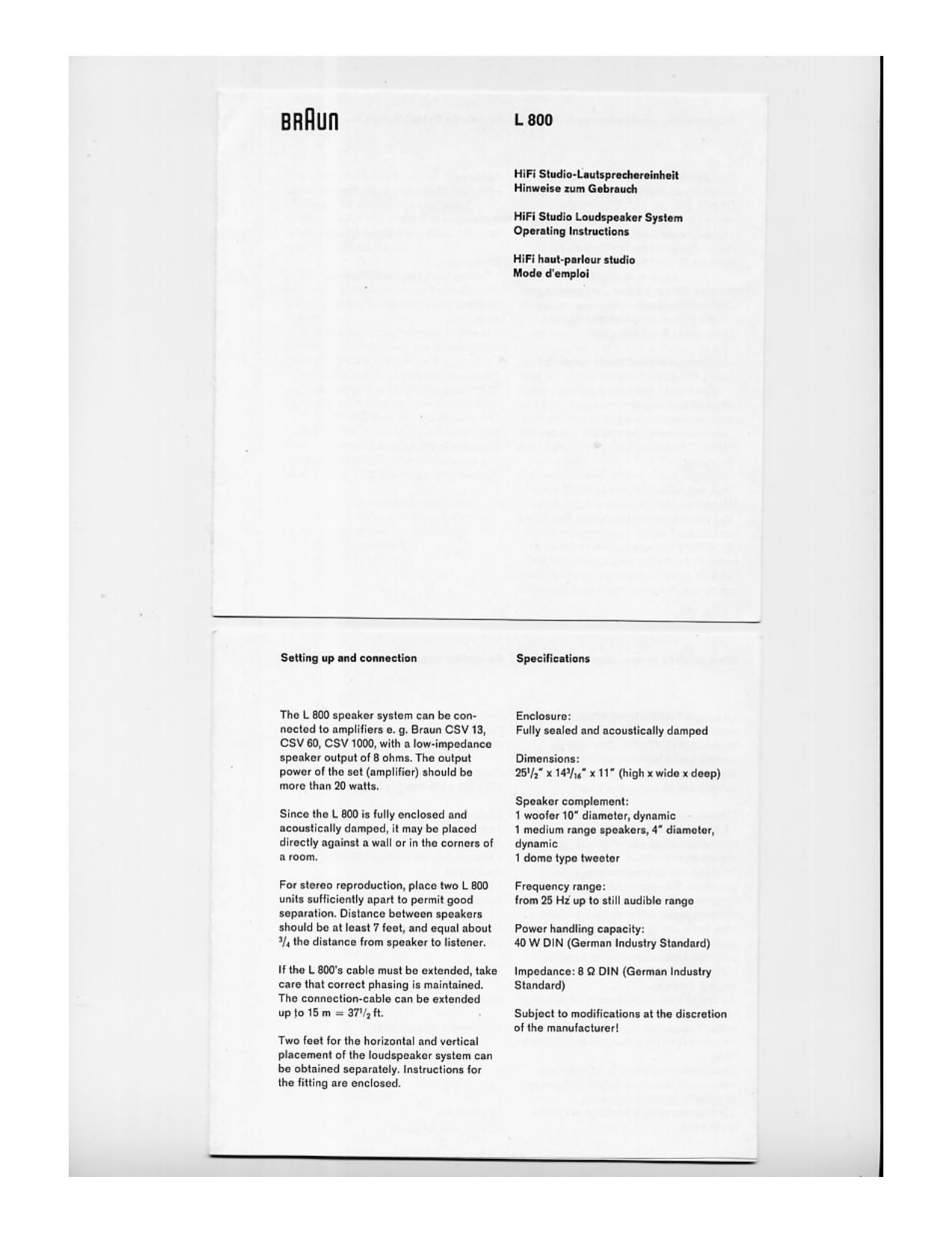

Page 1

aaflun

L 800

HiFl Studio-Lluhpredlernlnhell
Hlnwnise mm Gabraudl

HiFi Studio Loudspeaker System
0pc atlng Instruction-

HiFi hlutrpnrleur studio

Mode dernplel
Setting up and connection Specifications
The L 800 speaker system can be con- Enclosure:

nocted to amplifier: e. 9. Braun CSV13.
CSV 60, CSV 1000, with a low-impedance
speaker output of 3 ohms. The output
power of the set (amplifier) should be
more than 20 watts,

Since the L 500 is lully enclosed and
acoustically damped, it may be placed
directly against a wall or in the corner: of
a room.

For stereo reproduction, place lwo L 600
units sutliciently apart to permit good
separation. Distance between speakers
should be at least 7 teet, and equal about
3/. the distance from speaker to listener.

It the L 900s cable must be extended, take
care that correct phasing is maintained.
The connection»ceble can be extended
up in 15 m = 37, It.

Two feet lor the horizontal and vertical
placement of the loudspeaker system can
be obtained separately. Instructions tor
lhe lilting are enclosed.

Fully sealed and acoustically damped

Dimensions:
25," x 1413].. x 11 " (high at wide x deep)

Speaker complement:

1 woolen 10' diameter. dynamic

1 medium range speakers, 4' diameter,
dynamic

1 dome type tweeter

Frequency range:
item 25 Hz up to still audible range

Power handling capacity:
40W DIN (German Industry Standard)

Impedance: 8 9 DIN (German Industry
Standard)

Subiect to modifications at the discretion
ol the manufacturerl
