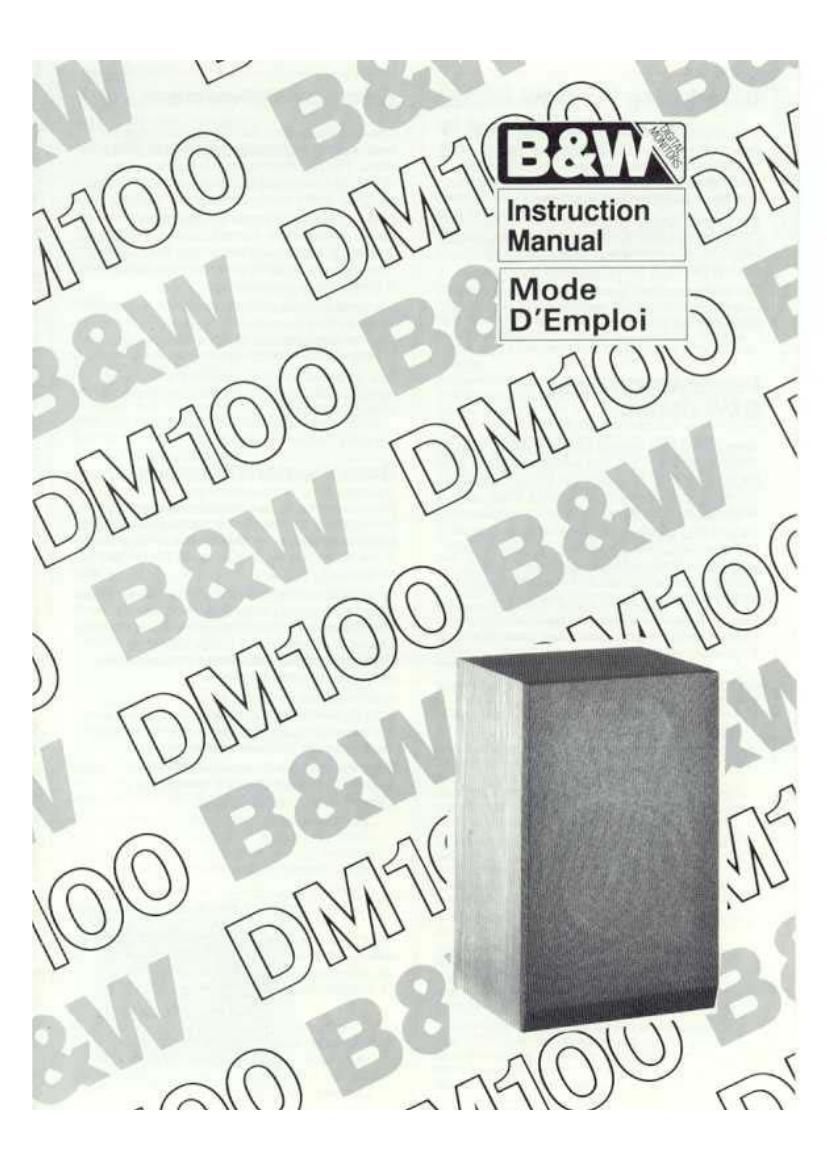

BowersWilkins DM 100 Owners Manual

Page 2

Introducing the saw DM100

Your Digital Mini Monitor system Dth titres
designed and mode by 85W. the British
manufacturer whose loudspeakers are used by
the leading recording companies worldwide to
monitor digital recording sessions,

it is a Zmy system at quite exceptional sensitivity.

Other characteristics are broad linear lrequency
response and excellent transient performance.
even at very high sound pressure levels.

The performance at your DM100 will delight you
- and this manual will enable you to mextmise
your listening pleasure

Presentation de la
Batw DM100

Votra Digital Mini Monitor DMtOO a are concue et
realieee par 88W. le conetrucleur britanique dont
lee encemtes sent utilisees par les plus grandee
maisons de dlsques dens le monde antler pour
verifier la qualite dee enregistrements digiteux.

II s'agil d'un systems 2 votes d'un rendement
ease: exceptionnel Les entree ceracteriatiques
soul une reponee en frequence etendue et
d'excellentes pertarmancee transitoires. meme 9
de tree hams niveaux de pression sonore.

Lee pertormencee de vos DMtiO vous
enchantaront, et catte notice yous permettra
d'optimiser votre plaisir d'ecouto

Electrical Connection

Connect the loudspeaker to your amplifier by
means at either the screw terminals or 4mm
plugs The red terminal on the loudspeaker
should be connected to the red terminal on the
amplifier. or the connection marked positive

Correct phasing of stereo loudspeakers is
extremely Important and incorrect connection will
produce a loss at base and a poor stereo image
This will be rectified by reversing the connections
to one of the loudspeakers.

It is good practice to keep the connecting leads
between the power amplifier and speakers as
short as possible. and to use a heavy gauge wire
to keep the DC resistance to a minimum

As a guide we would recommend a minimum
cable size at 1.5mm up to 5m long. and 25mm
or more over 5m.

Branchement Electrique

Heller rename a l'ampliticaleur avec soil le
bornler a vis. eoit dee liches banenes de 4mm La
borne rouge de l'enceinte doit etre reliee a la
borne rouge de l'ernpiiiicaleur. on a la borne
$96768 (4»).

Le reperage correct de in phase est extrememem
important pour dee enceintes en stereo et un
branchement incorrect provoqueratt une perte de
basses et une mauvaiee image stereo. La
situation corrects eera retablie en lnversanl les
polantee d'une des encemtes.

It as important do gerder lee cables do liaison
entre l'emptiiicateur et tee enceintes outset courts
qua possible. et d'ullliser un diametre de cAble
important pour limiter la resistance no minimum.

Nous vous recommendons un diametre minimum
de cable de 1.5mm iusqu'e 5m de long at
25mm' ou plus an dela 69 SM.
