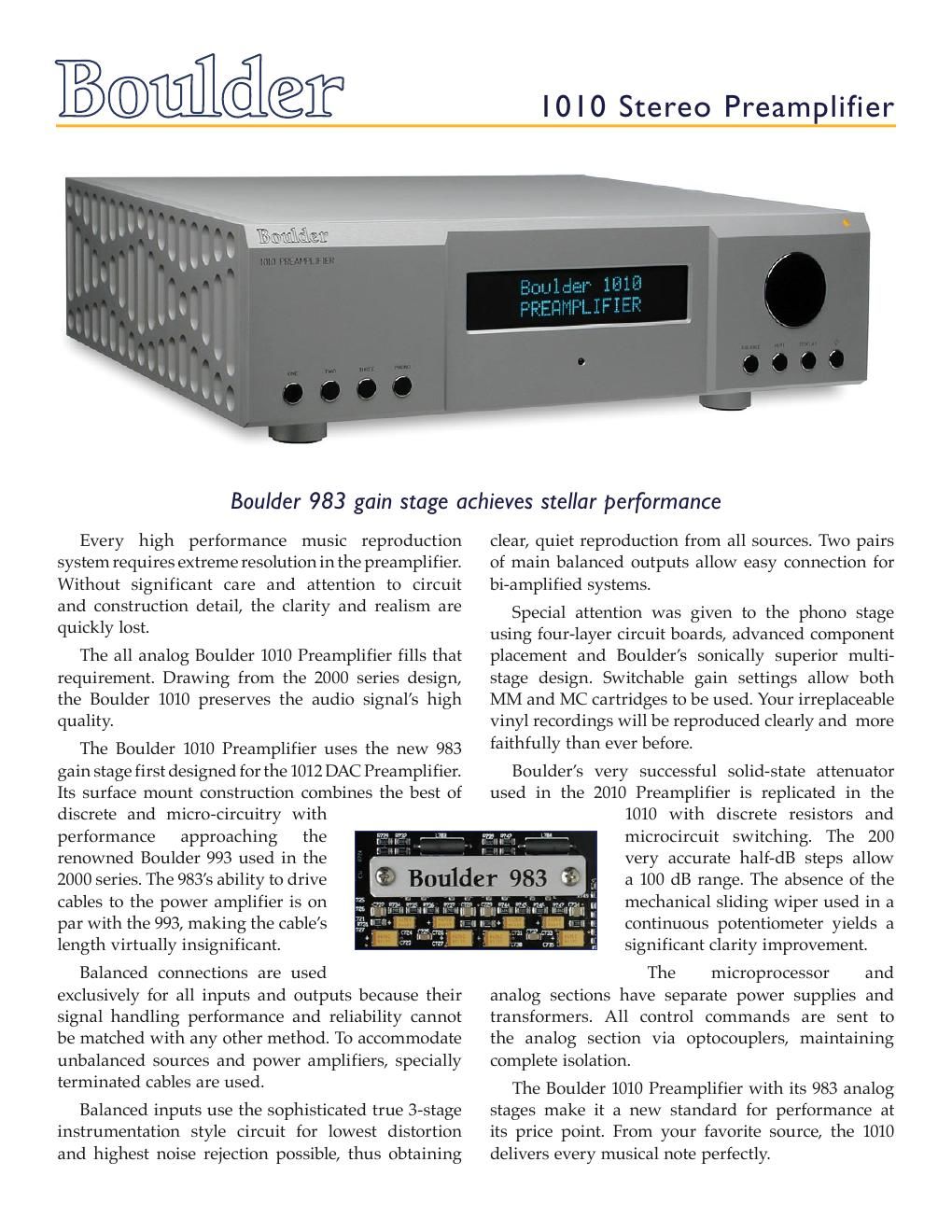

Boulder 1010 brochure

Page 1

B o u l d e r A m p l i f i e r s , I n c . 3 2 3 5 P r a i r i e Ave . - B o u l d e r, C O 8 0 3 0 1 3 0 3 - 4 4 9 - 8 2 2 0 - w w w. b o u l d e r a m p. c o m SPECIFICATIONS ANALOG INPUTS 3 Balanced Line, 1 MC / MM Phono OUTPUTS 2 Balanced Main, 1 Record PHONO Hi ( MC ) / Lo ( MM ) Gain Selection VOLUME 10 0 dB range in 0. 5 dB steps MA X GAIN 20 dB Line, 8 0 dB MC Phono MA X OUTPUT 14.0 Vrms CLIP TO NOISE 118 dB FREQ RESPONSE + 0, - 0.03 dB , 20 Hz to 20 kHz THD + N, 2V OUT 0.0 015% , 20 Hz to 20 kHz SYSTEM Boulderlink to Power Amps SIZE 18.0 wide, 5.75 high, 15.85 deep (in.) WEIGHT 35, Shipping : 49 Pounds POWER 120 VAC , 50 - 60 Hz, 75 W Boulder is justly proud of the unique fully-machined chassis. Designed to control resonances, this interlocking enclosure provides the true lasting value of quality craftsmanship and a pleasing, timeless appearance. The large display is highly visible from across the room. Brightness is adjustable to fit the mood. The all metal remote c o n t r o l feels comfortable in the hand and operates in a p o s i t i v e manner, but also f u nct ions from a table top. Engraved l e t t e r i n g and machined quality is commensurate with B o u l d e r s design. Communication with any Boulder power amplifier is possible from the 1010 via a Boulderlink cable. The amplifiers are then turned on and off with the 1010 and their status is monitored on the display. Programming of inputs makes the 1010 Preamplifier completely compatible with your system. Each input may be separately programmed for input level to match the others when changing sources. Balance and polarity allow further fine tuning. Alphabetic naming of each input clearly shows exactly what you are listening to. Integration into a surround sound/ home theater system has never been easier. By connecting the left and right front channel outputs from the processor to an input of the 1010, you will not need to reconnect cables when you want ultimate two channel performance. The theater mode option is then programmed for that input. When that input is chosen, the volume control is set at unity gain, allowing control to be taken over by the processor. The Boulder 1010 Preamplifiers many features are a true asset to your high performance music system.
