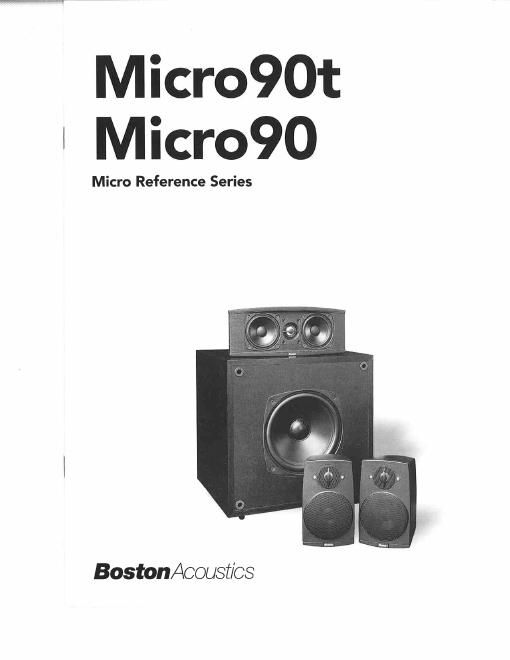

Micro90t
I Micro90

Micro Reference Series

BostonAcoust/bs

Page 2

Safety Instructions

rain or moisture.

n ELEc'rnic sHock
DO NOT OPEN

UTlON j WARNING: To reduce the risk of fire or electric shock, do not expose this product to

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence
Z 3 _\ of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constie

tute a risk of electric shock to persons.

f The exclamation pomt within an equilateral triangle is intended to alert you to the presence of important operating

and maintenance (servicing) instructions in the literature accompanying the product.

1. Read Instructions: All the safety and operating instruc
tions should be read before the product is operated.

2. Retain Instructions: The safety and operating instruc»
tions should be retained for future reference.

3. Heed Warnings: All warnings on the product and in the
operating instructions should be adhered to.

4. Follow Instructions: All operating and other instructions
should be followed.

5. Water and Moisture: The product should not be used
near water--for example, a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement or near a swimming
pool, etc.

a Carts and Stands: The product should be used only with a
cart or stand that is recommended by the manu-
facturer. A product and cart combination should
be moved with care. Quick stops, excessive

smsA force, and uneven sunfaces may cause the
product and cart combination to overturn.

7. Wall- or Ceiling-Mounting: The product should be
mounted to a wall or ceiling only as recommended by the
manufacturer.

8. Ventilation: The product should be situated so that its
location or position does not interfere with its proper func-
tioning. For example, the product should not be situated
on a bed, sofa, rug or similar surface that may obstruct the
heat sink surfaces; or placed in a built-in installation, such
as a bookcase or cabinet that may impede the flow of air
near the heat sink surfaces.

9. Heat: The product should be situated away from heat
sources such as radiators, stoves or other products that
produce heat.

10. Power Sources: The product should be connected to
a power supply only of the type described in the operating
instructions or as marked on the product.

11. Grounding or Polarization: This product may be
equipped with a polarized alternating-current line plug (a
plug having one blade wider than the other). This plug will
fit into the power outlet only one way. This is a safety fea-
ture. If you are unable to insert the plug fully into the out-
let, try reversing the plug. lf the plug should still fail to fit,
contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized plug.

12. Power Cord Protection: Power supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them. Pay partic-
ular attention to cords and plugs, convenience receptacles
and the point where they exit from the product.

13. Cleaning: The product should only be cleaned as rec,
ommended by the manufacturer.

14. Nonuse Periods: The power cord should be
unplugged from the outlet when left unused for long
periods of time.

i5. Object and Liquid Entry: Care should be taken so
that objects do not fall into and liquids are not spilled into
the inside of the product.

16. Damage Requiring Service: The product should be
serviced if any of the following events occur.

A. The power supply cord or the plug has been
damaged;

B. Objects have fallen or liquid has been spilled into
the product;

C: The product has been exposed to rain;

D. The product does not appear to operate normally or
exhibits a marked change in performance; or

E. The product has been dropped or the enclosure
damaged.

17, Servicing: The user should not attempt to service the
product beyond what is described in the operating
instructions. For all other servicing, consult your dealer or
contact Boston Acoustics.

Specifications

Micro90pv Powered Subwoofer

Frequency Response (:3dB)

35-150Hz

Subwoofer Amplifier Power

75 watts continuous 49; < .i5% THD @ 60 watts, 4Q, 25-200Hz

Subwoofer Crossover

eSdB point variable from 50-1 SOHZ, 24dB/octave low-pass

Bass Unit 8" (200mm) copolymer with butyl rubber surround
Dimensions (HxWxD) 143/4 x14V2 x 153/8" (375 x 368 x 39i mm)

Weight - T-SS lbsiio kg)

Finish Black ash or white Vinyl veneer

Micro90x Satellites

Micro90c Center Channel Speaker*

i20-20,000Hz

Frequency Response (:3dB) iOOeZODOOHz
Recommended Amplifier Power 15-i 25 watts 15-i25 watts
Nominal Impedance 8 ohms 8 ohms
Sensitivity [1 watt (2.83v) at 1 m] 89dB 90dB

Tweeter

1" (25mm) aluminum dome

1" (25mm) aluminum dome

Bass Unit

3V2" (89mm) copolymer

dual 3V2" (89mm) copolymer

Crossover Frequency

3800Hz

ZSUUHZ

Dimensions (HxWxD) 678x41/4x53/4" (175x108x146mm) 4%x12x5V/i" (120x300x132mm)
Weight 6 lbs ea, (3 kg) 11 lbs (5 kg)
Finish Black or white Black

Description

Micro90c is included in the Micio90t system only

The Micro90t home theater speaker system delivers exceptional performance from small speakers that virtually disappear

in your listening room. The front channels are handled by miniature monitors housing our most advanced drive unitsi

Boston-built, highepower, 31/2" (89mm) midrange drivers and our exclusive 1" (25mm) Lynnfield VRTM tweeter. The satellite

and center channel housings are made from dieecast aluminum. The great strength and rigidity of this material assure the

sound is not degraded by spurious resonances and cabinet vibrations.

A 757watt powered subwoofer With our 8" (200mm) Deep Channel Design (DCD'M) bass unit provides a solid foundation

for the system. The heavy-duty DCD subwoofer driver features a deeply grooved pole plate, developed using Finite

Element AnalySIs computer optimization, giving this driver tremendous excursion for clean, powerful bass. Drive power

comes from a Boston-designed highecurrent amplifierwith oversized transformer, for a subwoofer that translates demand-

ing program material into an exciting, thunderous experience.

Wallrmount brackets for the left and right satellites are included, and all units feature MagnaGuardQ magnetic shielding for

complete placement flexibility.
