Boss WP 20G(T) GK Effect Service Manual
This is the 23 pages manual for Boss WP 20G(T) GK Effect Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
-GK-Effect-Service-Manual-01.jpg)
Extracted text from Boss WP 20G(T) GK Effect Service Manual (Ocr-read)

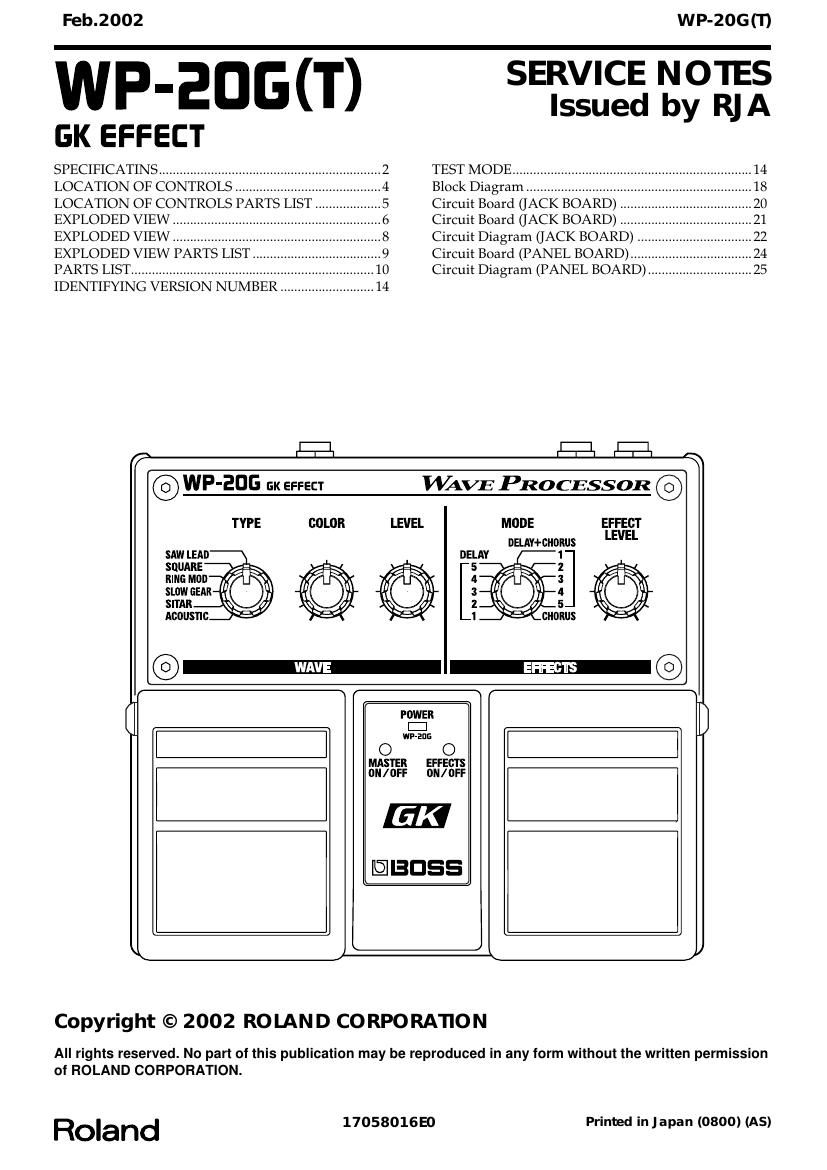

Page 1
2 Feb.2002 SPECIFICATINS WP-20G: GK Effect Controls Master On/Off Pedal Effects On/Off Pedal TYPE Knob COLOR Knob LEVEL Knob MODE Knob EFFECT LEVEL Knob NORMAL PU MIX Switch Indicator POWER Indicator (serves also as battery check indicator) MASTER ON/OFF Indicator EFFECTS ON/OFF Indicator Connectors GUITAR OUT Jack GUITAR RETURN Jack GK IN Connector OUTPUT Jack DC IN Jack (DC 9 V) Nominal Input Level GUITAR RETURN: -20 dBu Input Impedance GUITAR RETURN: 1 M(ohm) Nominal Output Level OUTPUT: -20 dBu GUITAR OUT: -20 dBu Nominal Output Impedance OUTPUT: 1 k(ohm) GUITAR OUT: 100 (ohm) Recommended Load Impedance 10 k(ohm) or greater Residual Noise Level - 96 dBu(GK IN: terminated, Distortion: OFF, NORMAL PU MIX: OFF, IHF-A,typ) Power Supply DC 9 V: Dry Battery x 6, AC Adaptor Current Draw 150 mA (9 V, with GK-2A) * Expected battery life under continuous use: Carbon: 2 hours Alkaline: 6 hours These figureswill vary depending on the actual conditions of use. Dimensions 173 (W) x 158 (D) x 57 (H) mm 6-13/16 (W) x 6-1/4 (D) x 2-1/4 (H) inches Weight 1.1 kg / 2 lbs 7 oz (including batteries) Accessories Dry Battery (LR6 (AA) type) x 6(#********) Owners Manual English (#G6017300) Japanese (#G6017299) Roland Service (Information sheet) Options AC Adaptor: PSA series Divided pickup: GK-2A (Roland) Unit Selector: US-20 (Roland) GK Connecting Cable: GKC-3 (3 m), GKC-5 (5 m), GKC-10 (10 m), C-13B(10 m) (Roland) GK Parallel Box: GKP-4 (Roland) * 0 dBu = 0.775 Vrms * In the interest of product improvement, the specifications and/or appearrance of this unit are subject to change without prior notice.
Page 2
3 WP-20G(T)
