BOSS TU 2 SERVICE NOTES
This is the 5 pages manual for BOSS TU 2 SERVICE NOTES.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from BOSS TU 2 SERVICE NOTES (Ocr-read)

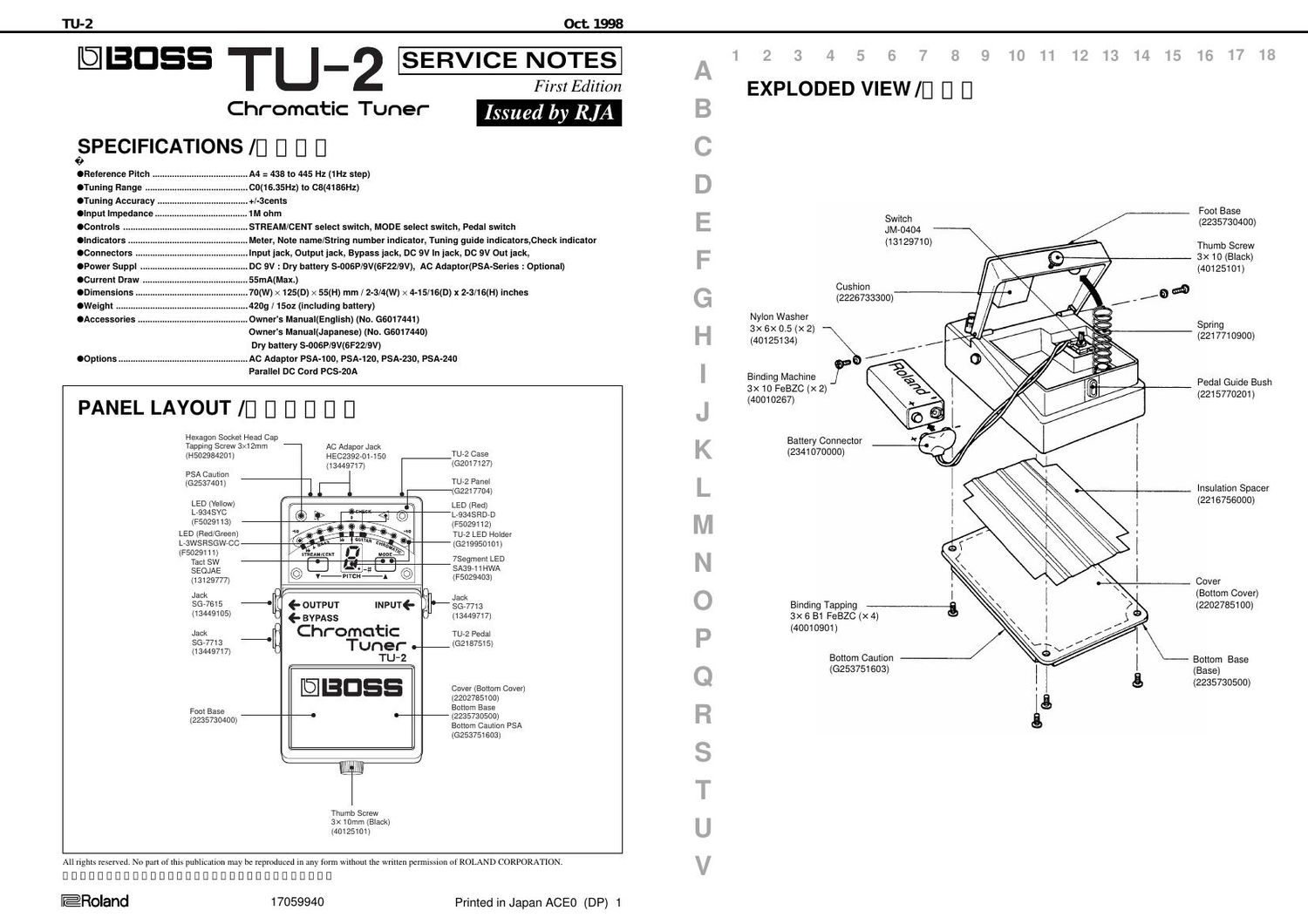

Page 1
TU-2
Oct1998
IEIIBDSS TU_2 SERVICE NOTES
Chromatic Tuner
§PECIFICATIONS II] I] I] I]
OReterence Pitch ....................................... A4 = 438 to 445 Hz (1H: step)
OTuning Range .C0(16.35Hz) to C8(4136Hz)
.Tuning Accuracy . +/-3cents
.lnput Impedance . 1M ohm
First Edition
Issued by RJA
OControls .. .STREAM/CENT select switch, MODE select switch, Pedal switch
Olndicators . Meter, Note name/String number indicator, Tuning guide indicators,Check indicator
OConnectors . Input jack, Output jack, Bypass jack, DC 9V In jack, DC 9V Out jack,
OPower Suppl .. . DC 9V : Dry battery S-OOGP/9V(6F22/9V), AC Adaptor(PSA-Series : Optional)
.Current Draw .
.Dimensions
OWeight .....
OAccessories
. 55mA(Max.)
.4209 / 1501 (including battery)
.Owner's Manual(English) (No. 66017441)
Owners Manual(Japanese) (No. 66017440)
Dry battery S-OOGP/9V(6F22/9V)
OOptio n s
Parallel DC Cord PCS-20A
.70(W)><125(D)>< 55(H) mm / 2-3/4(W) >< 4-15/16(D) x 2-3/16(H) inches
.AC Adaptor PSA-100, PSA-120, PSA-230, PSA-240
PANEL LAYOUT II] [I [I [l [l I]
Hexagon Socket Head Cap
TUVZ Case
(52017127)
TUVZ Panel
(32217704)
LED (Red)
Tapping Screw 3x12mm AC Adapor Jack
(H502984201) HECZ3927017150
(13449717)
PSA Caution
(G2537401) l f
LED (Yellow) .
LEBSASYC
(F5029113) ® D> r? L «J @
LED (Red/Green)
L73wsnsowrcc ,
(F5029111) / sizumcsm
Tact SW t
SEQJAE L-J 7* w
(13129777) © V "To" @
Jack
5077615 4' (- OUTPUT INPUT(- H
(13449105) (_ BYPASS
.
Jack E Chromatic
8677713 4'
(13449717) TUnTEf; *
Foot Base
(2235730400)
Thumb Screw
3x 10mm (Black)
(40125101)
L7934SRD7D
(F5029112)
TU72 LED Holder
(3219950101)
7Segment LED
SA3971 1HWA
(F5029403)
Jack
SGV7713
(13449717)
TU72 Pedal
(G21B7515)
Cover (Bottom Cover)
(2202785100)
Bottom Base
(2235730500)
Bottom Caution PSA
(G253751603)
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
DDEll]DDEll]DDDDDDDDDDDDDDDDDDDDDDD
@Roland 17059940
Printed in Japan ACEO (DP) 1
EXPLODED VIEW m n n
Cushion
(2226733300)
Nylon Washer
3x 6x 0.5 (x 2)
(40125134)
Binding Machine
3x 10 FeBZC (x 2)
(40010267)
Battery Connector
(2341070000)
Binding Tapping
3x 6 B1 FeBZC (
(40010901)
Bottom Caution
(6253751603)
x4) 3
Foot Base
(2235730400)
Thumb Screw
3X 10 (Black)
(40125101)
Spring
(2217710900)
Pedal Guide Bush
(2215770201)
Insulation Spacer
(2216756000)
Cover
(Bottom Cover)
(2202785100)
Bottom Base
(Base)
(2235730500)
